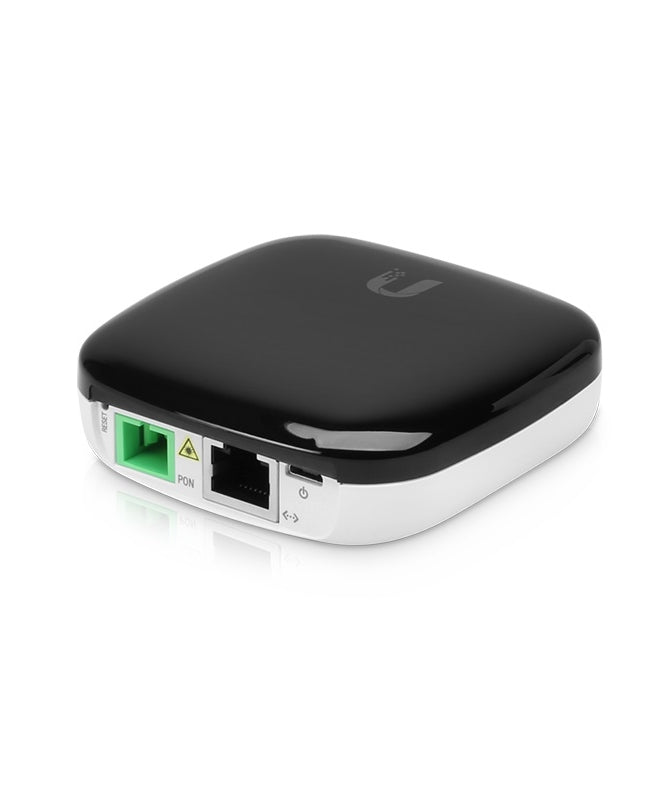

Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit 20-Pack
Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit 20-Pack

Ubiquiti Networks

Ubiquiti Networks UF-Loco UFiber Gigabit Passive Optical Network Unit 20-Pack

MPN: UF-LOCO-20

SKU: UBI-UF-LOCO-20

$899


  • High-Performance GPON CPE

  • LED diodes for easy diagnostics

  • Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream

  • Supports up to 20 km GPON Links

  • Powerful Layer 2/3 Management Features

  • GPON WAN Port

  • RJ45 Gigabit LAN Port

  • SC/APC Fiber Connector

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description
<h1 class="comProduct__title">UFiber loco GPON CPE</h1> <p>The sleek UFiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro‑USB power.</p> <p><br><br><strong>Features:</strong></p> <ul> <li>High-Performance GPON CPE</li> <li>LED diodes for easy diagnostics</li> <li>Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream</li> <li>Supports up to 20 km GPON Links</li> <li>Powerful Layer 2/3 Management Features</li> <li>GPON WAN Port</li> <li>RJ45 Gigabit LAN Port</li> <li>SC/APC Fiber Connector</li> </ul>
UF-LOCO
Dimensions 76.5 x 76.5 x 26.4 mm
(3.01 x 3.01 x 1.04")
Weight 77 g (2.72 oz)
Networking Interfaces (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds (1) GPON WAN, ITU G.984,
2.488 Gbps Downstream,
1.244 Gbps Upstream
(1) GbE LAN, 10/100/1000 Mbps
Management Interface In-Band Ethernet PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
Power Method Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)
Power Supply Micro-USB Power Adapter*:
5V, 1A
Max. Power Consumption 3.5W
Supported Voltage Range 4.7 to 5.3V
Processor Specs MIPS-32, 240 MHz
Memory Information 128 MB DDR3
Button (1) Reset
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
