Ubiquiti AMO-5G10 airMAX 5.45 - 5.85GHz MIMO 10dBi Omni Antenna
Ubiquiti AMO-5G10 airMAX 5.45 - 5.85GHz MIMO 10dBi Omni Antenna
Ubiquiti AMO-5G10 airMAX 5.45 - 5.85GHz MIMO 10dBi Omni Antenna
Ubiquiti AMO-5G10 airMAX 5.45 - 5.85GHz MIMO 10dBi Omni Antenna

Ubiquiti Networks

Ubiquiti AMO-5G10 airMAX 5.45 - 5.85GHz MIMO 10dBi Omni Antenna

MPN: AMO-5G10

SKU: UBI-AMO-5G10

$125


  • 5 GHz, 10 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.

  • 2x2 dual-polarity MIMO

  • 360° coverage

  • Easy to assemble

  • Compatible with RocketPrism

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description
UBIQUITI AMO-5G10 AIRMAX 5.45 - 5.85GHZ 10DBI 2X2 DUAL POLARITY OMNI MIMO ANTENNA

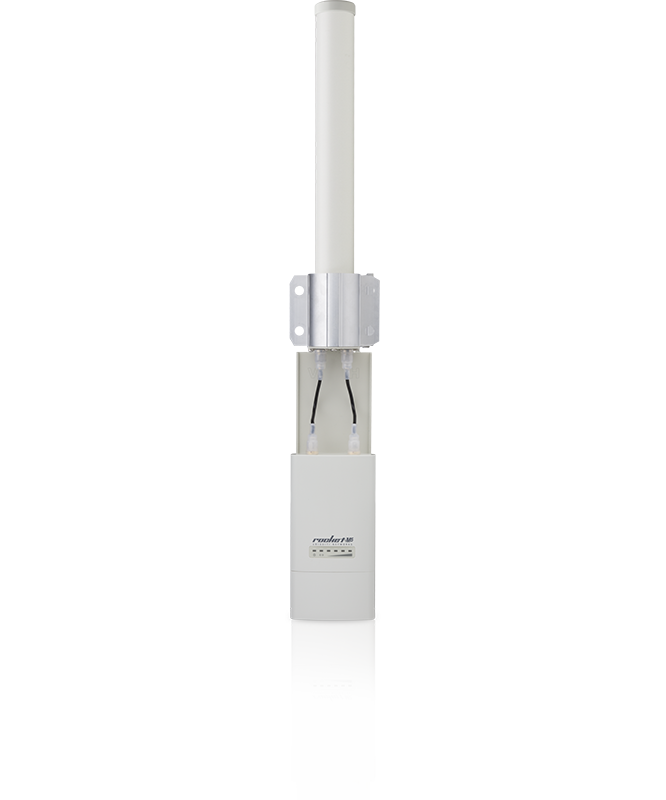

airMAX Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately).

Rocket M combines the "brains" in one robust unit; just pair Rocket M with airMAX Omni to create powerful 360° omnidirectional basestation. This seamless integration gives network architects unparalleled flexibility and convenience.

Applications
  • Internet Backbone
  • ISP Network
  • RocketDish with Rocket M (PtP backhaul)
  • RocketDish with Rocket M (PtP backhaul)
  • airMAX Omni with Rocket M (PtMP)
  • Corporate campus with NanoBridge M clients
  • Mobile computer with AirGrid M client


AMO-5G10
Dimensions 582 x 90 x 65 mm (22.9 x 3.5 x 2.6")
Weight 680 g (1.5 lb)
Frequency Range 5.45 - 5.85 GHz
Gain 10 dBi
Elevation Beamwidth 12°
Max. VSWR 1.6:1
Downtilt 4°
Wind Survivability 200 km/h (125 mph)
Wind Loading 44.5 N @ 160 km/h (10 lbf @ 100 mph)
Polarization Dual-Linear
Cross-pol Isolation 25 dB min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
