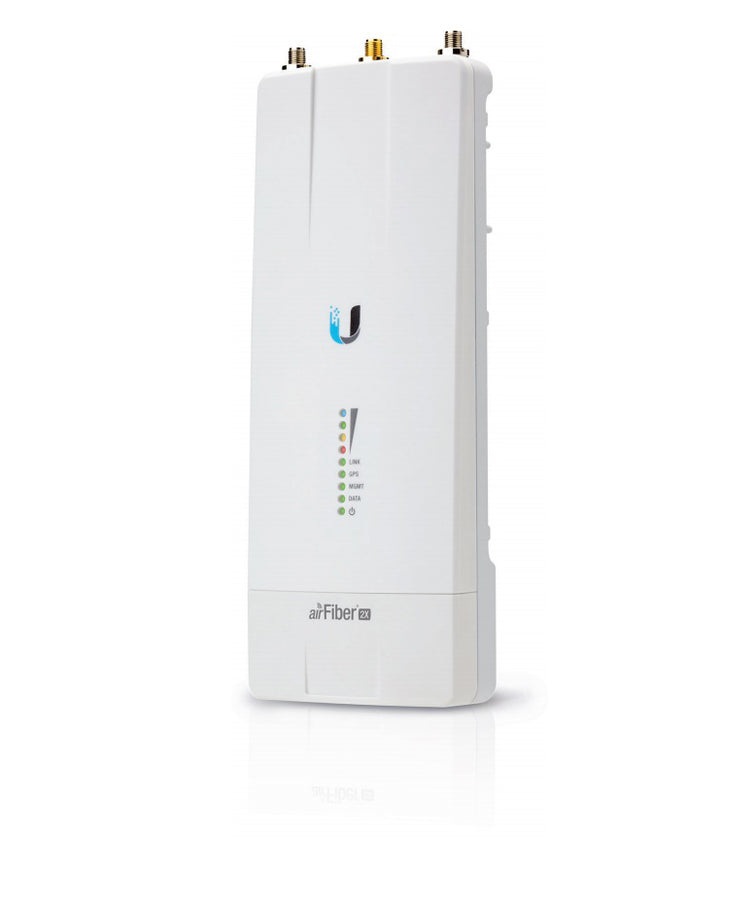

Ubiquiti airFiber-X AF-2X-US 500Mbps+ Backhaul, 2.4GHz US Version
MPN: AF-2X-US
SKU: UBI-AF-2X-US
Share
Overview
Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas. Building upon the proven design of the airMAX® Rocket™ system, airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links. The next airFiber X model is the AF‑2X model for use in the 2.4 GHz frequency band.
Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links.
The airFiber X is available in three frequency bands:
- 2.4 GHz, model AF-2X
- 3 GHz, model AF-3X
- 5 GHz, model AF-5X
Engineered for Performance
Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
Our INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and higher delivered throughput.
The airFiber X features industry‑leading spectral efficiency of up to 17.1 Mbps/MHz, line‑rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.
Ultra-Low Latency with HDD Technology
The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.
Co-Location
With tower space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The airFiber X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.
GPS Synchronization
Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.
Clean Power Output
Using advanced digital signal processing, the innovative airFiber X radio design has an ultra -clean transmitter output, reducing broadband noise, facilitating co -location, and enabling higher -order modulations like 256QAM for greater throughput.
Note: Price is per end, must order two units for a complete link.
Ubiquiti Networks AF-2X-US
| RF Connectors | 2 x RP-SMA Weatherproof (CH0, CH1) 1 x SMA Weatherproof (GPS) |
| GPS Antenna | External, Magnetic Base |
| Power Supply | 24 V, 1 A PoE Gigabit Adapter (included) |
| Power Method | Passive Power over Ethernet |
| Mounting | airFiber X Mount (Rocket Mount compatible) GPS Pole Mount (included) |
| Certifications | DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| Data Port | 1 x 10/100/1000 Ethernet Port |
| Management Port | 1 x 10/100 Ethernet Port |
| Processor | INVICTUS IC |
| Maximum Throughput | 525 Mbps |
| Maximum Range | 656,168' / 200,000 m |
| Encryption | 128-bit AES |
| Operating System | airOS F |
| Wireless Modes | Master/Slave |
| Operating Frequency | 2400-2500 MHz (Dependent on regulatory region) |
| Power | Max. Conducted TX Power: 30 dBm (Dependent on regulatory region) |
| Frequency Accuracy | ± 2.5 ppm without GPS synchronization ± 0.2 ppm with GPS synchronization |
| Channel Bandwidth | 10/20/30/40/50 MHz selectable Programmable uplink and downlink duty cycles |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Dimensions | 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm |
| Weight | 0.77 lb / 0.35 kg |
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 10.4 x 4.5 x 4.4" |
