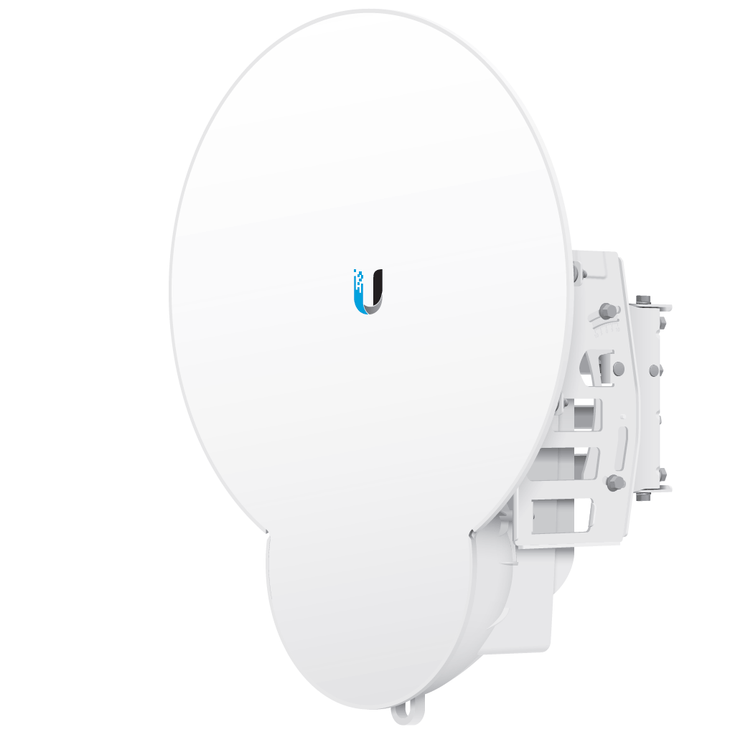

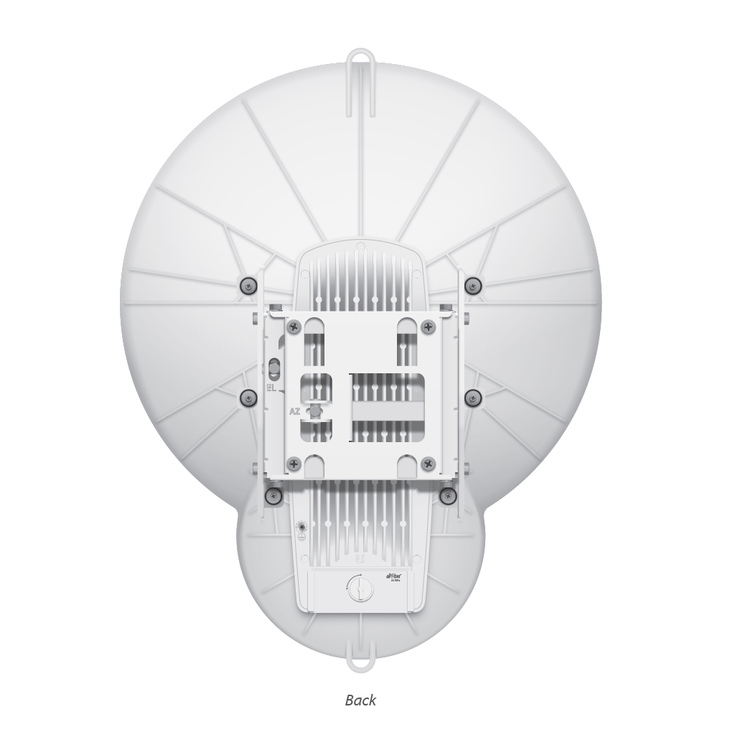

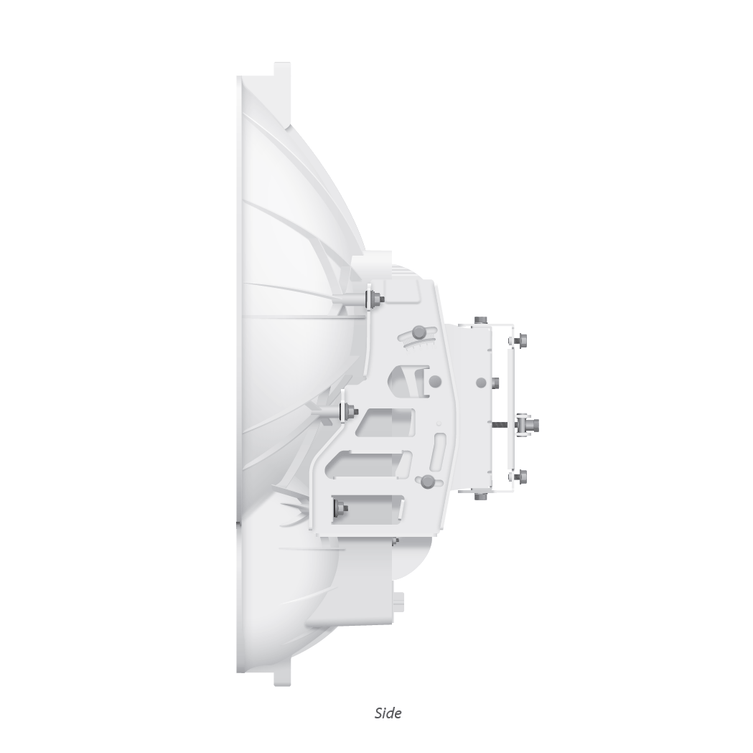

Ubiquiti AirFiber 24GHz Point-to-Point 2Gbps Backhaul (AF-24HD) - US Version
MPN: AF-24HD-US
SKU: UBI-AF-24HD-US
Share
Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Ubiquiti’s innovative proprietary modem technology was purpose-built to address the specific challenges of outdoor, PtP (Point‑to-Point) bridging and high-performance network backhauls. Every aspect of the radio has been carefully simulated and designed to optimize range, speed, and latency performance in the harshest RF noise environments.
Best-in-Class Performance and Range
Our INVICTUS custom silicon dramatically improves wireless performance. The AF‑24HD model supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps. The airFiber AF-24/AF-24HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range among 24 GHz products and allows for constellation threshold extension.
Robust Mechanical Assembly
An independent lab has tested the airFiber mechanical assembly to meet MIL‑STD‑810G, a rigorous United States MIL‑STD (Military Standard) that defines a variety of challenging environmental conditions. The mechanical assembly has also undergone vibration testing using an extended version of IEC 60068‑2‑6, an environmental standard of the IEC (International Electrotechnical Commission).
The standard model, AF-24, delivers up to 1.4+ Gbps throughput at a range of up to 13+ km. The heavy-duty model, AF-24HD, provides more throughput at up to 2 Gbps and increased range of up to 20+ km. It also includes a more rugged exterior with a metal reflector, to protect against nature’s harshest elements.
airFiber AF-24HD Receive Sensitivity
| Modulation | Sensitivity | FDD Capacity* | TDD Capacity* |
| 256QAM | -60 dBm | 2000 Mbps | 1024 Mbps |
| 64QAM | -66 dBm | 1500 Mbps | 760 Mbps |
| 16QAM | -72 dBm | 1000 Mbps | 507 Mbps |
| QPSK MIMO | -78 dBm | 500 Mbps | 253 Mbps |
| QPSK SISO | -80 dBm | 250 Mbps | 127 Mbps |
| ¼x QPSK SISO | -87 dBm | 62.5 Mbps | 31.7 Mbps |
* FDD = (2) 100 MHz channels and TDD = (1) 100 MHz channel
