Siklu T280 60GHz 2x 1Gbps 1x SFP+ ports Long Range Terragraph Kit
MPN: MH-T280-CCP-PoE-MWB
SKU: SIK-MHT280CCPPOEMWB
Share
MULTIHAUL™ TG LR TERMINAL UNIT T280
Long Range Options in Terragraph deployments
MULTIHAUL™ TG T280 – Long Range Options in Terregraph Deployments
A Wide Range of Applications
- Fixed 5G Wireless Access, Gigabit to the Home, MDU & Enterprise
- Wi-Fi Hotspot Backhaul
- Security / Safe City Networks
- Smart City Business Services, Municipal networks
- Small Cell Backhaul High Capacity and Flexibility for Dense Deployments
- Fiber Hand-off

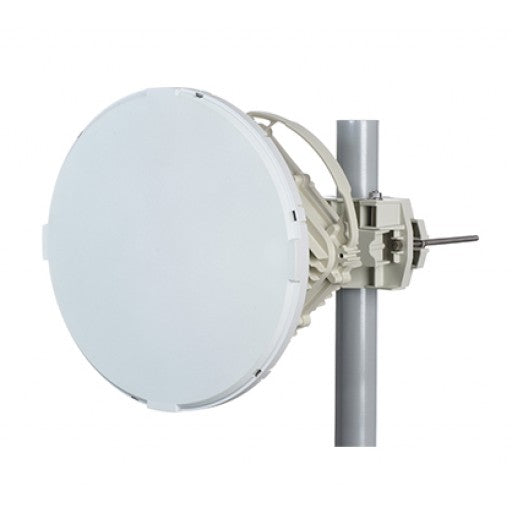

The MultiHaul™ TG LR T280 provides deployment options like no other 60GHz radios, with the inherent capacity of the Terragraph links. A choice of 0.5ft, 1ft, or 2ft antenna allows choosing the perfect solution for the most challenging long-distance links. The T280 is Siklu’s long-range TG TU, compatible with the N366 in PtMP mode for additional distances to served locations. The T280 can also operate in PtP mode, 2 identical units on each site, for even longer distances. The T280 offers up to 3 ports with both copper and fiber interfaces as well as a PoE out to power a collocated N366 or any other 3rd party device.
MESH TOPOLOGY
The ability to create multiple self-backhaul links enables diverse traffic routing to support differentiated SLA levels, as well as carrier-grade make-before- break redundancy with sub-50ms traffic switch-over.
SELF HEALING
The L2 SDN mesh network will automatically establish connectivity between all nodes and reroute traffic based on performance in terms of capacity, oversubscription and even latency to determine the best paths.
SaaS
Siklu’s advanced SmartHaul™ tools, WiNDE for network design, and ENMS for management both support the MultiHaul TG series. All of Siklu’s SmartHaul™ software systems can be Cloud-based or premise located.
SIMPLE DEPLOYMENT
Combining the advanced self-organizing centralised controls and provisioning with superior automatic beam steering means installations can be done quickly and with minimal skillsets.
FLEXIBLE & POWERFUL
Options are almost endless. Each network may have critical sites that require redundant connectivity, or perhaps multiple ports with optional PoE-Out, or a fibre handoff from the Node or TU.
COST EFFECTIVE
Providing cutting-edge technology at a low cost of ownership, at a price point palatable to end-users combined with an attractive return on investment. Bringing gigabit connectivity to everyone.
MultiHaul™ TG Products
The MultiHaul™ TG series of products from Siklu advances L2 Software Defined Networking (SDN) mesh technology and innovation and is now its third generation of multipoint 60GHz products and Terragraph-compliant.
With the MultiHaul™ TG series, Siklu has been able to lower the cost of delivering Gigabit wireless connectivity to homes, businesses and Smart Cities. A single unit that provides 360-degree coverage, the N366 provides up to 16Gbps of capacity. The N366 also features built-in self-backhaul, autonomous L2 network self-healing ability and the industry’s most advanced, cloud-based SaaS network design and implementation toolkit.
MultiHaul™ TG Node N366
MULTIHAUL™ TG NODE N366 – Complete 360-degree coverage in one unit for Terragraph deployments.
A Wide Range of Applications
- Fixed 5G Wireless Access, Gigabit to the Home, MDU & Enterprise
- Wi-Fi Hotspot Backhaul
- Security / Safe City Networks
- Smart City Business Services, Municipal networks
- Small Cell Backhaul High Capacity and Flexibility for Dense Deployments
The MultiHaul™ TG Nodes operate with 4 independent sectors over the millimeter-wave spectrum using narrow beams. This confers several advantages including multigigabit capacity in dense deployments. With 4 independent high-gain beam-forming antennas, a multitude of network topologies can be realised to optimise coverage, capacity, and performance.
MultiHaul™ TG TU
MULTIHAUL™ TG TERMINAL UNIT T265 – Service Options in Terragraph Deployments.
A Wide Range of Applications
- Fixed 5G Wireless Access, Gigabit to the Home, MDU & Enterprise
- Wi-Fi Hotspot Backhaul
- Security / Safe City Networks
- Smart City Business Services, Municipal networks
- Small Cell Backhaul
- Fibre hand-off Capacity and Flexibility for Demanding Applications
The MultiHaul™ TG Terminal Units operate over the millimeter wave spectrum using self-aligned, dynamic beam steering RF. This confers several advantages including multi-gigabit capacity in dense deployments. With 3 ports, RJ-45 up to 2.5GE or fibre up to 10Gbps, a multitude of service deliveries and interfaces can be realised to meet the need of any demanding application.
