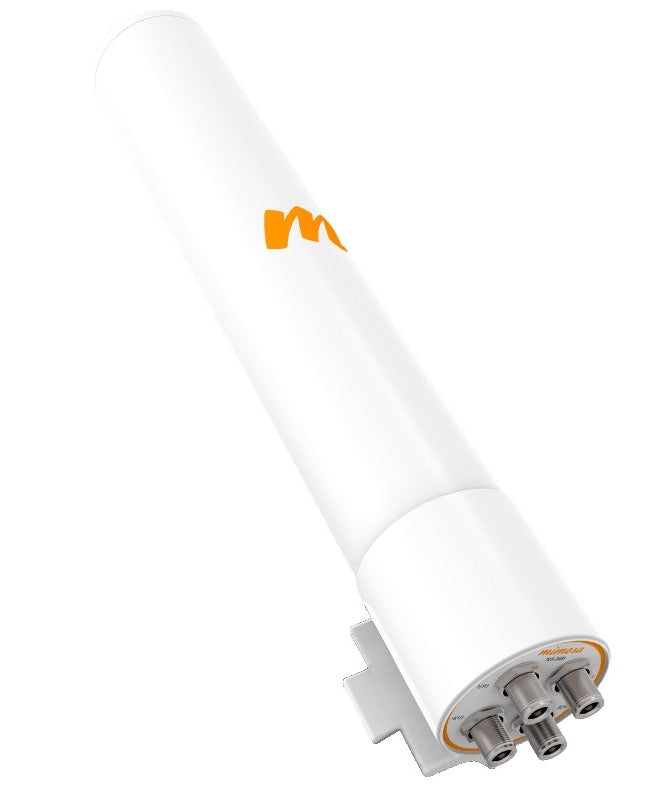

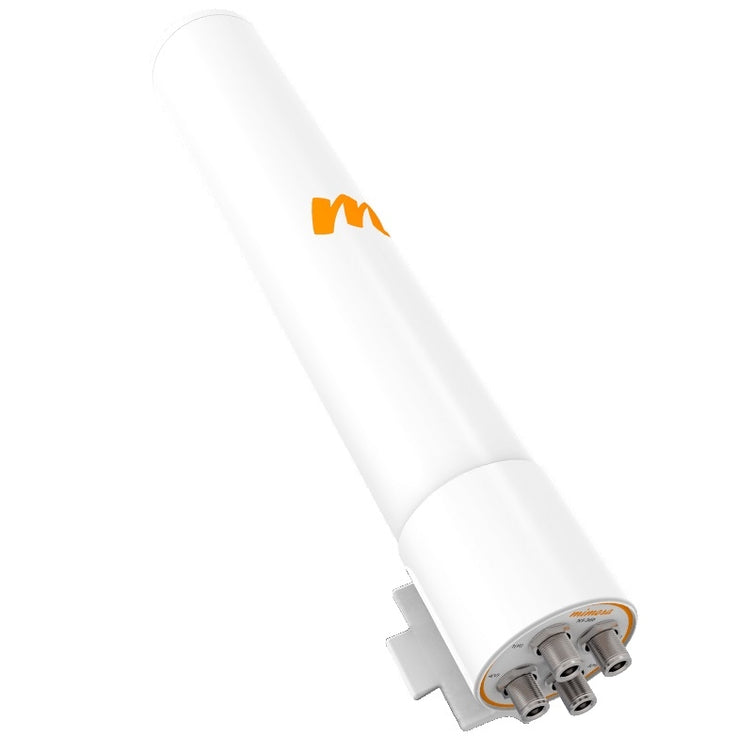

<p style="text-align: center;">Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.</p>
<p> </p>
<p> </p>
<p><img style="display: block; margin-left: auto; margin-right: auto;" src="http://sptphones.com/bsc/pub/media/descriptions/Sail_N5-360-1.png" alt=""></p>
<section id="longer-range-micropops" class="copy">
<h4 style="text-align: center;"> </h4>
<h4 style="text-align: center;">LONGER-RANGE MICROPOPS</h4>
<br>
<p style="text-align: center;">Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.</p>
</section>
<section id="wide-frequency-range" class="copy">
<h4 style="text-align: center;">WIDE-FREQUENCY RANGE</h4>
<br>
<p style="text-align: center;">The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility.</p>
</section>
<section id="optimized-for-360º-throughput" class="copy">
<h4 style="text-align: center;">OPTIMIZED FOR 360º THROUGHPUT</h4>
<br>
<p style="text-align: center;">Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.</p>
</section>
<section id="beamforming-innovation" class="copy">
<h4 style="text-align: center;">BEAMFORMING INNOVATION</h4>
<br>
<p style="text-align: center;">3 dB performance enhancement in a compact design, with all new quad-180º overlapping antenna polarizations that enable range-extending, beamforming technology.</p>
<p style="text-align: center;"> </p>
</section>
<h2 style="text-align: center;">Specifications</h2>
<p><br><br></p>
<table class="table9">
<tbody>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Gain</td>
<td style="width: 50%; height: 21px;">15 dBi</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Frequency</td>
<td style="width: 50%; height: 21px;">4.9-6.4 GHz</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Azimuth Beamwidth</td>
<td style="width: 50%; height: 21px;">360º via 4 overlapping 180º sectors</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Elevation Beamwidth (3 db)</td>
<td style="width: 50%; height: 21px;">8º</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Downtilt</td>
<td style="width: 50%; height: 21px;">2º</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Dimensions</td>
<td style="width: 50%; height: 21px;">Height: 465 mm (18.31”) including bracket<br>Width: 80 mm (3.15”)</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">Weight</td>
<td style="width: 50%; height: 21px;">1.11 kg (2.45 lbs)</td>
</tr>
<tr style="height: 21px;">
<td style="width: 50%; height: 21px;">RF Connectors</td>
<td style="width: 50%; height: 21px;">4 N-type female</td>
</tr>
</tbody>
</table>
