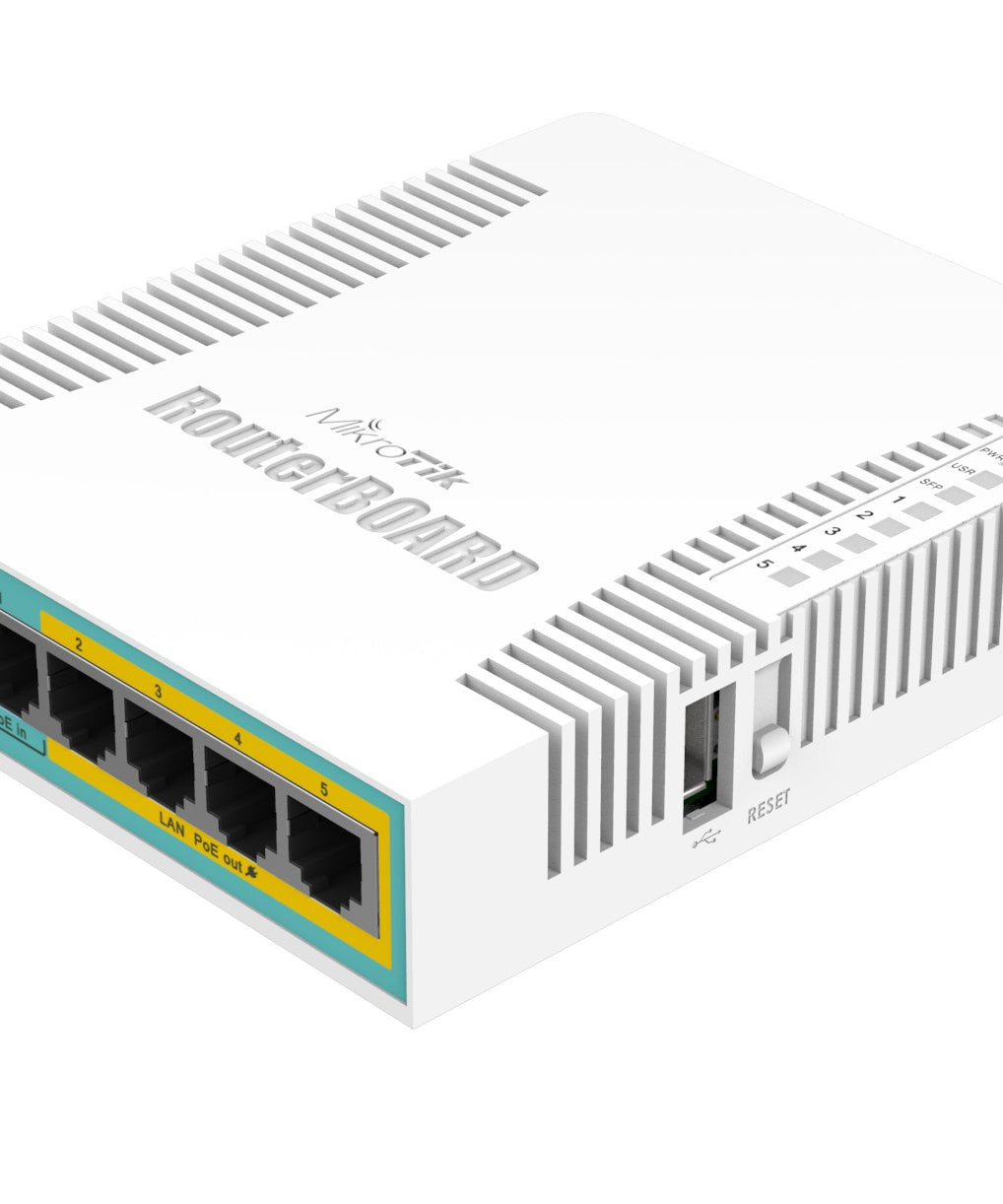

MikroTik RB960PGS hEX PoE 800MHz 128MB 5xGb SFP L4 PoE Out

<p>hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.</p> <p>&nbsp;</p> <p>It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.</p> <p>&nbsp;</p> <p>It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.</p> <p><br><br><br></p> <table class="table9"> <tbody> <tr> <td colspan="2"><br> <h2>Product specifications</h2> </td> </tr> <tr> <td><strong>Product code</strong></td> <td>RB960PGS</td> </tr> <tr> <td><strong>CPU nominal frequency</strong></td> <td>800 MHz</td> </tr> <tr> <td><strong>CPU core count</strong></td> <td>1</td> </tr> <tr> <td><strong>Size of RAM</strong></td> <td>128 MB</td> </tr> <tr> <td><strong>10/100/1000 Ethernet ports</strong></td> <td>5</td> </tr> <tr> <td><strong>Number of USB ports</strong></td> <td>1</td> </tr> <tr> <td><strong>Power Jack</strong></td> <td>1</td> </tr> <tr> <td><strong>Supported input voltage</strong></td> <td>12 V - 57 V</td> </tr> <tr> <td><strong>PoE in</strong></td> <td>Passive</td> </tr> <tr> <td><strong>PoE out</strong></td> <td>802.3at</td> </tr> <tr> <td><strong>Voltage Monitor</strong></td> <td>Yes</td> </tr> <tr> <td><strong>PCB temperature monitor</strong></td> <td>Yes</td> </tr> <tr> <td><strong>Tested ambient temperature</strong></td> <td>-40 + 70 C</td> </tr> <tr> <td><strong>License level</strong></td> <td>4</td> </tr> <tr> <td><strong>CPU</strong></td> <td>QCA9557</td> </tr> <tr> <td><strong>Max Power consumption</strong></td> <td>9W</td> </tr> <tr> <td><strong>SFP ports</strong></td> <td>1</td> </tr> <tr> <td><strong>USB slot type</strong></td> <td>USB type A</td> </tr> <tr> <td><strong>USB Power Reset</strong></td> <td>Yes</td> </tr> <tr> <td><strong>Storage type</strong></td> <td>FLASH</td> </tr> <tr> <td><strong>Storage size</strong></td> <td>16 MB</td> </tr> </tbody> </table> <p>&nbsp;</p> <h2>Ethernet test results</h2> <table class="table9"> <tbody> <tr> <td colspan="2"><strong>RB960PGS</strong></td> <td colspan="6"><strong>QCA9557 (800Mhz) 1G all port test</strong></td> </tr> <tr> <td rowspan="2"><strong>Mode</strong></td> <td rowspan="2"><strong>Configuration</strong></td> <td colspan="2"><strong>1518 byte</strong></td> <td colspan="2"><strong>512 byte</strong></td> <td colspan="2"><strong>64 byte</strong></td> </tr> <tr> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> </tr> <tr> <td>Bridging</td> <td>none (fast path)</td> <td>161.9</td> <td>1,966.1</td> <td>401.5</td> <td>1,644.5</td> <td>542.3</td> <td>277.7</td> </tr> <tr> <td>Bridging</td> <td>25 bridge filter rules</td> <td>143.2</td> <td>1,739.0</td> <td>145.5</td> <td>596.0</td> <td>146.2</td> <td>74.9</td> </tr> <tr> <td>Routing</td> <td>none (fast path)</td> <td>161.9</td> <td>1,966.1</td> <td>396.3</td> <td>1,623.2</td> <td>521.7</td> <td>267.1</td> </tr> <tr> <td>Routing</td> <td>25 simple queues</td> <td>161.9</td> <td>1,966.1</td> <td>217.2</td> <td>889.7</td> <td>216.0</td> <td>110.6</td> </tr> <tr> <td>Routing</td> <td>25 ip filter rules</td> <td>74.6</td> <td>905.9</td> <td>78.0</td> <td>319.5</td> <td>76.5</td> <td>39.2</td> </tr> </tbody> </table> <p><br><br></p> <ul class="bullet"> <ul class="bullet"> <li>All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)</li> </ul> </ul> <ul class="bullet"> <ul class="bullet"> <li>Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes</li> </ul> </ul> <ul class="bullet"> <ul class="bullet"> <li>Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out</li> </ul> </ul> <ul class="bullet"> <ul class="bullet"> <li>Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results</li> </ul> </ul> <p>&nbsp;</p>
