Mikrotik

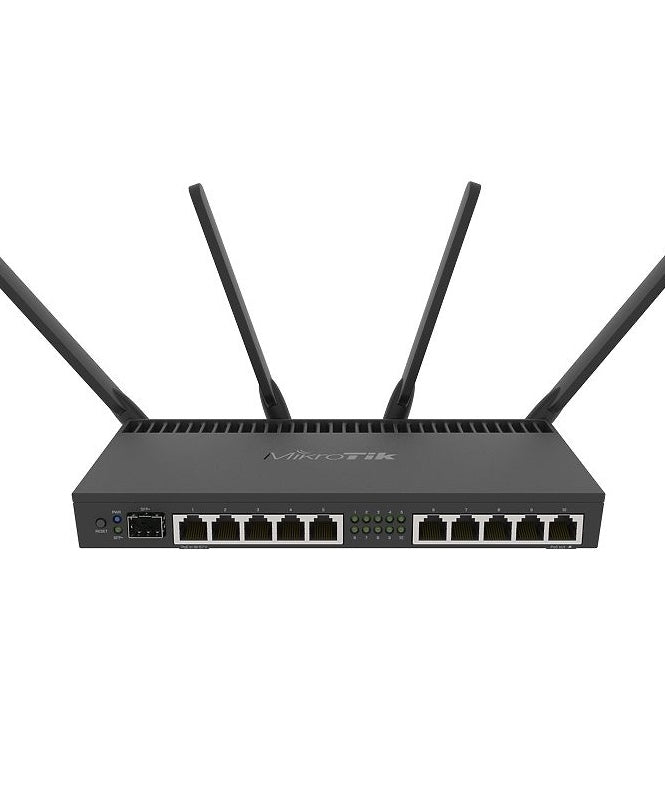

MikroTik RB4011 2.4/5GHz Dual-Band 802.11ac SFP+ 4 Chain 10 Gigabit

MPN: RB4011iGS+5HacQ2HnD-IN

SKU: MIK-RB4011iGS-5HACQ2

$275


  • RB4011iGS+5HacQ2HnD-IN

  • 802.11 AC

  • 10x 10/100/1000 Ethernet ports

  • 1x SFP+ port

  • Operating frequency 5170-5250MHz & 5725-5835MHz

  • Operating frequency 2412-2462MHz

Availability Available 6 in stock.
Description
<h2 style="text-align: center;"><span><span>RB4011iGS+5HacQ2HnD-IN</span></span></h2><br><p style="text-align: center;"><span>Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case</span></p><br><p style="text-align: center;">RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!</p><br><p style="text-align: center;">The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.</p><br><p style="text-align: center;">RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.</p><br><p style="text-align: center;">&nbsp;</p><br><p style="text-align: center;">Two versions available.</p><br><p style="text-align: center;"><strong>RB4011iGS+5HacQ2HnD-IN-US (USA)</strong> is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.</p><br><p style="text-align: center;">RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).</p><br><p style="text-align: center;">&nbsp;</p>

Specifications

Details
Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 45°C
Suggested price $249.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 18-57 V
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 420 mA
PoE out Passive PoE up to 57V
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 44 W
Max power consumption without attachments 23 W


Wireless

Details
AC speed AC2000
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA9984
Wireless 5 GHz generation Wi-Fi 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD
Wireless 2.4 GHz generation Wi-Fi 4


Ethernet

Details
10/100/1000 Ethernet ports 10


Fiber

Details
SFP+ ports 1


Peripherals

Details
MiniPCI-e slots 1
Serial port RJ45


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 33 -96
54MBit/s 29 -81
MCS0 33 -96
MCS7 28 -77
MCS9 26 -72

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 28 -100
11MBit/s 28 -94
6MBit/s 29 -96
54MBit/s 25 -80
MCS0 26 -96
MCS7 24 -79
