MikroTik RB2011ILS-IN 74K MIPS CPU 64MB RAM 1x SFP port 5...

Mikrotik

MikroTik RB2011ILS-IN 74K MIPS CPU 64MB RAM 1x SFP port 5x LAN 5x Gigabit

MPN: RB2011iLS-IN

SKU: MIK-RB2011iLS-IN

$109


  • Desktop metal case

  • 5xEthernet

  • 5xGigabit Ethernet, SFP cage, PoE out on port 10

  • 600MHz CPU, 64MB RAM, RouterOS L4

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

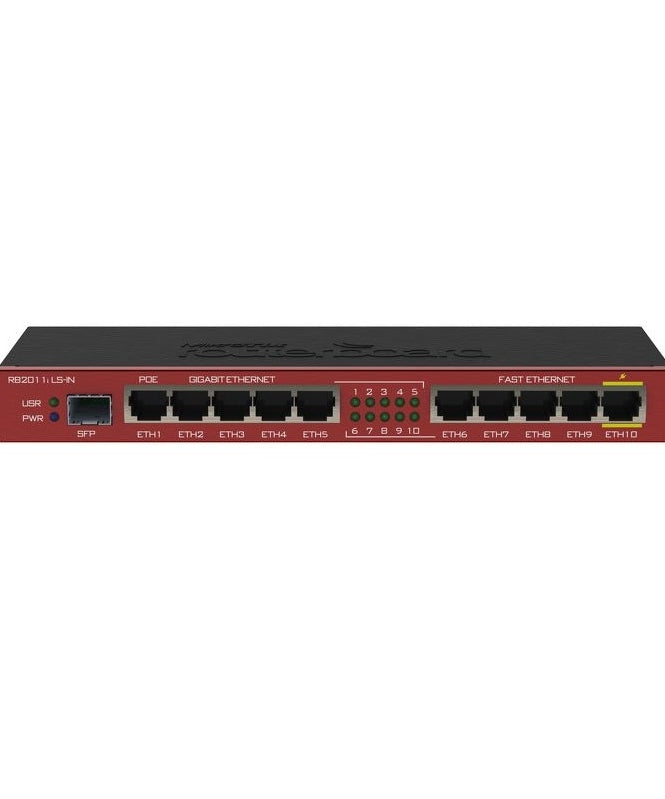

MikroTik RouterBOARD 2011iLS-IN

Desktop metal case, 5xEthernet, 5xGigabit Ethernet, SFP cage, PoE out on port 10, 600MHz CPU, 64MB RAM, RouterOS L4


RB2011iLS is our first product with SFP cage for gigabit SFP transceivers and ideal solution for FTTH (Fiber To The Home) implementations.

The RB2011iLS has 11 ports: Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wirespeed Fiber-to-Copper converter, and additional five Fast Ethernet ports. Board can be powered by power jack or PoE.

Note that SFP transceiver is NOT included. RB2011iLS supports any 1.25G SFP transceivers that is within the SFF Committee specifications for SFP Transceivers. RB2011iLS doesn’t have hardware support for PON (Passive Optical Network) - this hardware support MUST be implemented on SFP transceiver itself.

It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license. RB2011LS-IN comes with an indoor case, optional wall mount kit is available separately.

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Features:

  • Affordability
  • For homes and FTTx installations
  • 5xGigabit, 5x100Mbit, USB
  • No moving parts
  • Rackmount and Network closet versions

Specifications

Details
Product code RB2011iLS-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 228x97x25mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -35C to +65C
Suggested price $109.00


Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 18 W
Max power consumption without attachments 6 W
PoE in Passive PoE
PoE in input Voltage 8-30 V


PoE-out

Details
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 510 mA
Max total out (A) 510 mA


Ethernet

Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5


Fiber

Details
SFP DDMI Yes
SFP ports 1
