Mikrotik CRS125-24G-1S-IN 24x Gigabit Ethernet layer 3 Sm...

Mikrotik

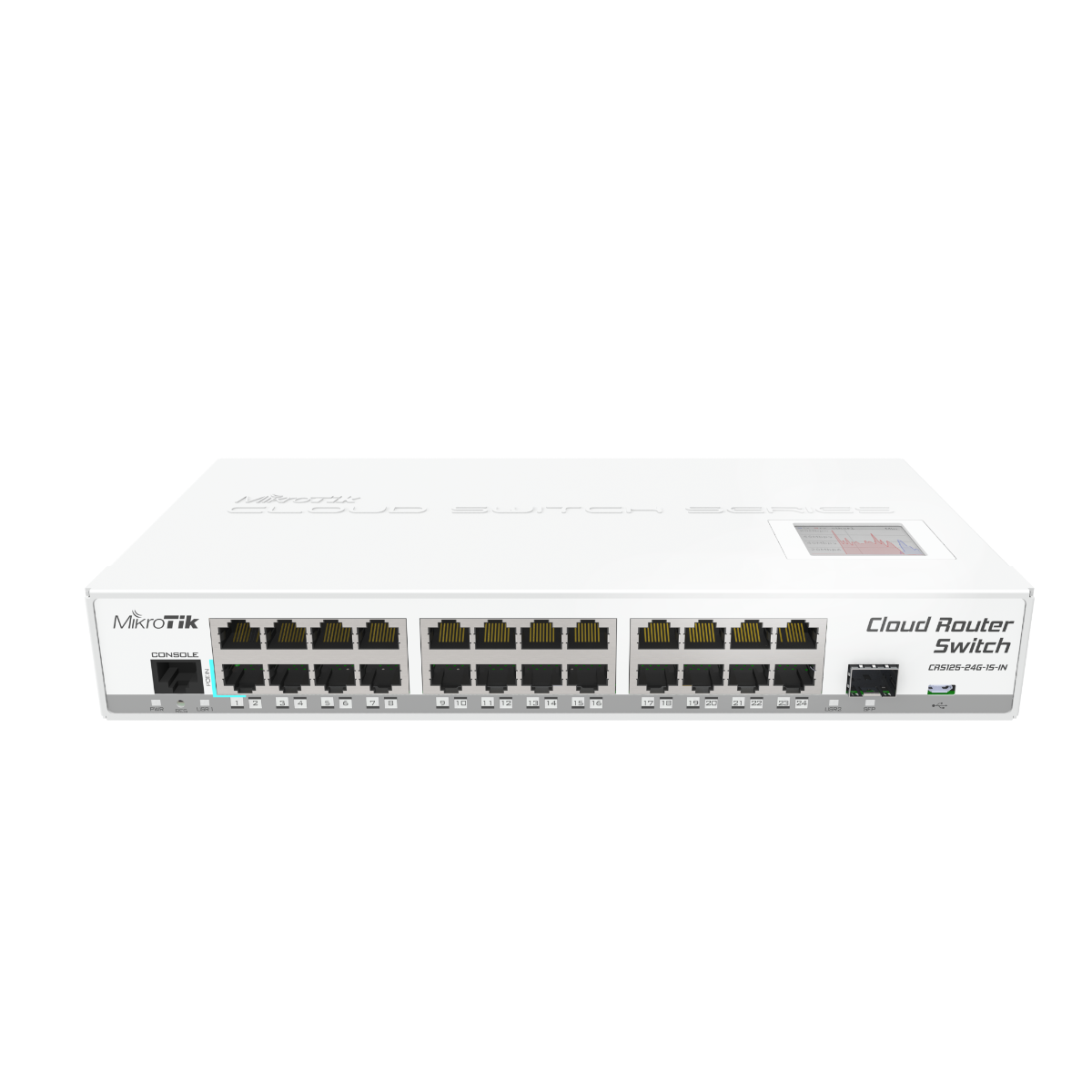

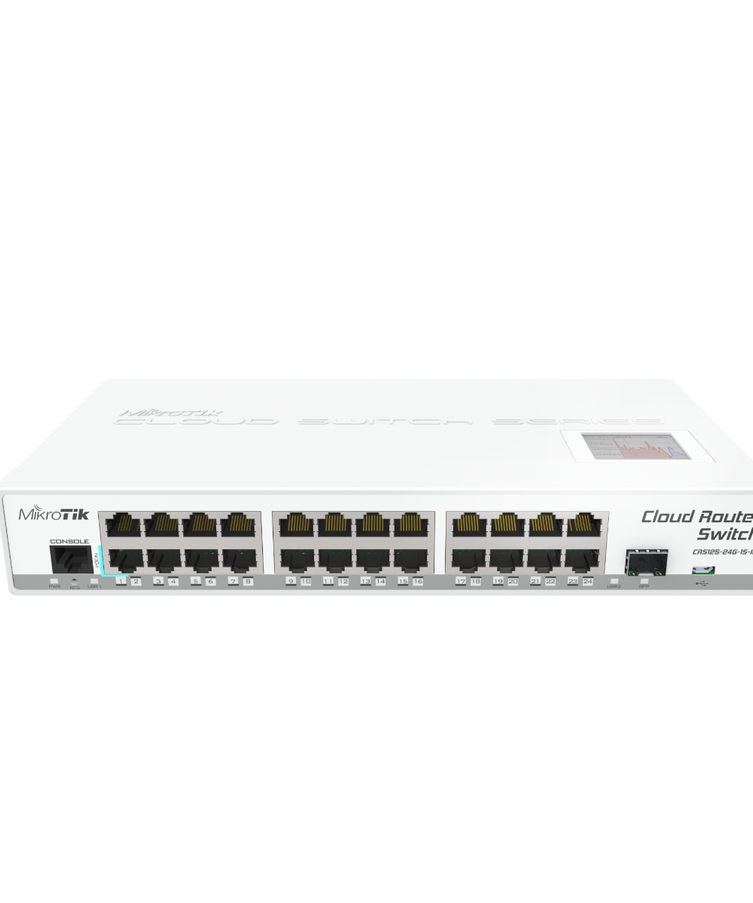

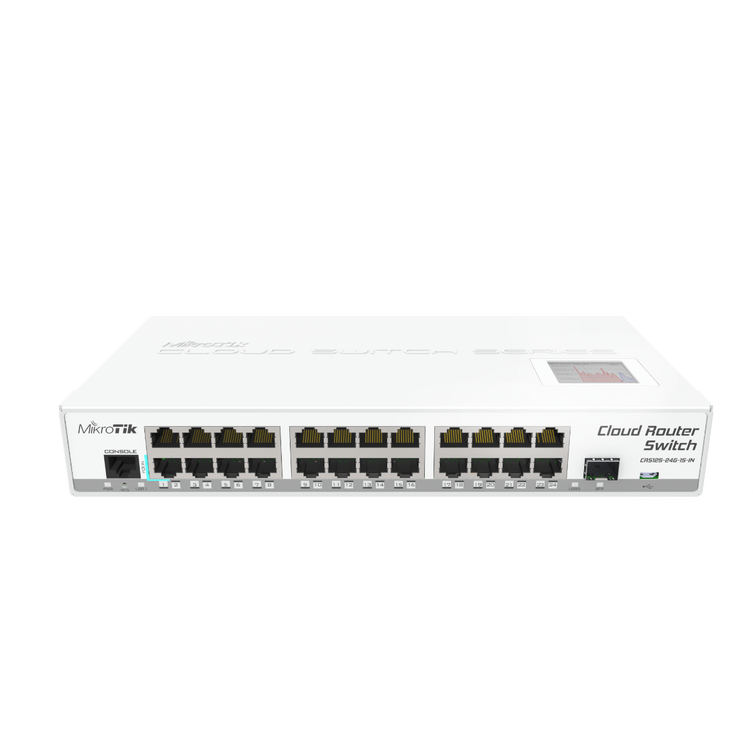

Mikrotik CRS125-24G-1S-IN 24x Gigabit Ethernet layer 3 Smart Switch 1x SFP cage

MPN: CRS125-24G-1S-IN

SKU: MIK-CRS125-24G-1SIN

$189
$199


  • 24x Gigabit Ethernet layer 3 Smart Switch

  • 1x SFP cage, LCD

  • 600MHz CPU, 128MB RAM,

  • Metal desktop case, RouterOS L5

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

Choose ports for Wire speed switching, or for routing purposes.

Perfect SOHO gateway router, switch, all in one box:
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)

Box includes: Cloud Router Switch, desktop enclosure, power supply



Specifications

Details
Product code CRS125-24G-1S-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 285 x 144 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
Suggested price $189.00


Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
Max power consumption 20 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-28 V


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP DDMI Yes
SFP ports 1


Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS

Specifications

Details
Product code CRS125-24G-1S-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 285 x 144 x 44 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
Suggested price $189.00


Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
Max power consumption 20 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-28 V


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP DDMI Yes
SFP ports 1


Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
