Planet IGS-501T 5-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch

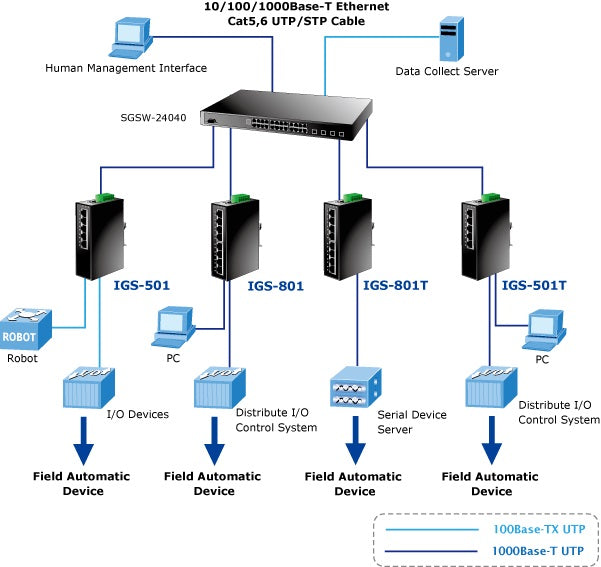

Planet IGS-501T Industrial Area Switch for Data Collection and Forwarding

Planet Technology

Planet IGS-501T 5-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch

MPN: IGS-501T

SKU: PLA-IGS-501T

$106


  • 5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

  • -40 to 75 degrees C operating temperature

Availability Available 9 in stock.
Ask about this product
Delivery and Return
Description

Slim Type with More Practicability and Convenience
The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.
Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Stable Performance under Difficult Environments
The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Plug and Play
All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Hardware Specifications
Hardware Version 4
Copper Ports 5 x 10/100/1000Base-T RJ45 TP
auto-MDI/MDI-X, auto-negotiation
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
LED 3 x LED for system and power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Green: Power Fault
2 x LED for each copper port
　■ Green: 1000Mbps LNK/ACT
　■ Orange:10/100Mbps LNK/ACT
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation 5.28 watts/18BTU
Installation DIN rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 32 x 87 x 135 mm
Weight 456g
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer Memory 1M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps @64bytes
Jumbo Frame 9K
Network Cables 10/100/1000Base-T
Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)]
EIA/TIA-568 100-ohm STP [100 meters (max.)]
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%
Storage: 5~90% (non-condensing)
