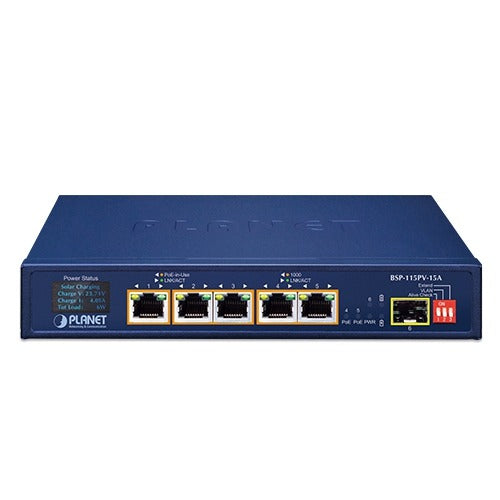

Planet 5-Port 802.3at PoE+ Solar PoE Switch with 1-Port 1000X SFP and LCD Display
MPN: BSP-115PV-15A
SKU: PLA-BSP-115PV-15A
Share
Industry-leading Integration of PoE Technology and Renewable Power System
PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Ethernet Switch, the BSP-115PV-15A, can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs.
The BSP-115PV-15A is equipped with 5 10/100/1000BASE-T copper ports supporting 802.3at PoE+ injector function, a total PoE power budget of up to 120 watts and 1 extra 100/1000BASE-X SFP fiber port especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways. It is designed to efficiently handle power distribution for a versatile array of connected devices which meet the Environmental, Social, and Governance (ESG) principles. Leveraging cutting-edge IP-based technology, PLANET has transformed conventional Power Over Ethernet (PoE) into genuine networking devices that align with sustainable and responsible business practices.

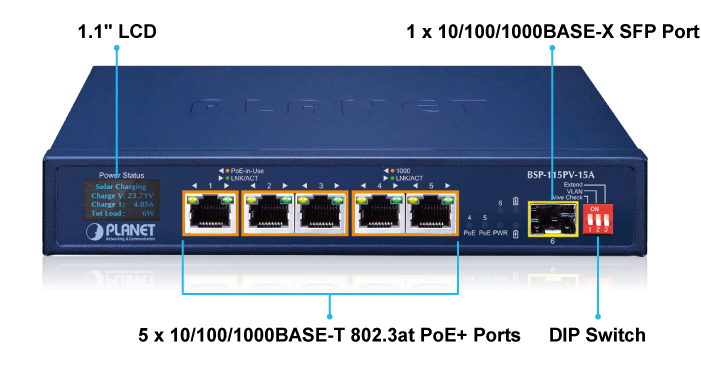

Physical Port
- Five 10/100/1000BASE-T Gigabit RJ45 copper ports with IEEE 802.3at PoE injector function
- One 100/1000BASE-X SFP slot for SFP type auto detection
Power over Ethernet
- Up to 5 ports of IEEE 802.3at devices powered
- Supports PoE power up to 35 watts for each PoE port
- 120-watt PoE budget
- Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode and 250m in extend mode
- PoE management
- Total PoE power budget control
- PD alive check
Smart LCD
- Displays solar input voltage and current power
- Displays battery voltage and current power
- Displays PoE current power
- Displays battery remaining and remaining charging time
- Displays temperature and humidity information
Battery Management
- Battery type option: Lithium battery, lithium iron battery or lead-acid battery
- Easy diagnostic of the system operating status via LED indicator
- Current battery usage status
- Maximum Power Point Tracking Charge Controller
- Reverse current protection to prevent the current circuits from flowing back to the PV panel
- Over-current protection
- Reverse polarity protection (for battery and charging electrodes)
Case and Installation
- IP30 metal case
- Desktop and wall-mount designs
- Supports -20 to 65 degrees C operating temperature
- Supports ESD 4KV contact and 8KV air DC Ethernet protection
- Supports surge protection up to 2KV
Power Requirements
- Supports 20-27V solar panel input (open circuit voltage) with 12V battery, maximum solar panel input power of 405W, and maximum circuit 15A.
- Supports 32-45V solar panel input (open circuit voltage) with 24V battery, maximum solar panel input power of 675W, and maximum circuit 15A.
Switching
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 2K MAC address table size
- 10K jumbo frame
- SFP slot supports dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules.
- The distance can be extended to 2km (multi-mode fiber) and to 120 kilometers (single-mode fiber or WDM fiber).
