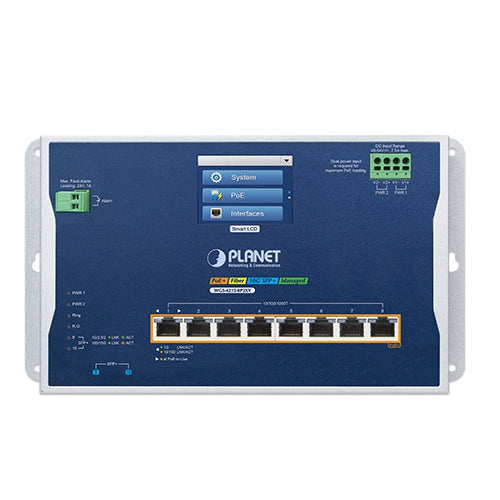

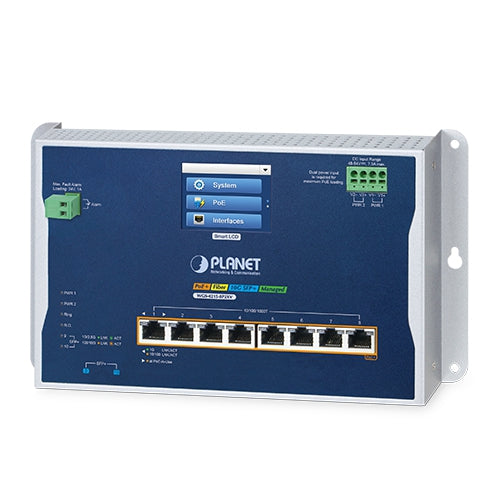

Planet WGS-4215-8P2XV Industrial L2+ 8-Port 802.3at PoE + 2-Port 10G SFP+ Wall-mount Managed Ethernet Switch with LCD Touch Screen

MPN: WGS-4215-8P2XV

SKU: PLA-WGS-4215-8P2XV

$633.60

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 2 100/1G/2.5G/10GBASE-X SFP+ slots for SFP type auto detection
Availability Usually Ships 10-14 Business Days
Ask about this product
Delivery and Return
Description

Physical Port

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
  • 2 100/1G/2.5G/10GBASE-X SFP+ slots for SFP type auto detection



Industrial Case and Installation

  • IP30 metal case
  • Supports -20 to 70 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
    • 48V~54V DC wide power input with reverse polarity protection

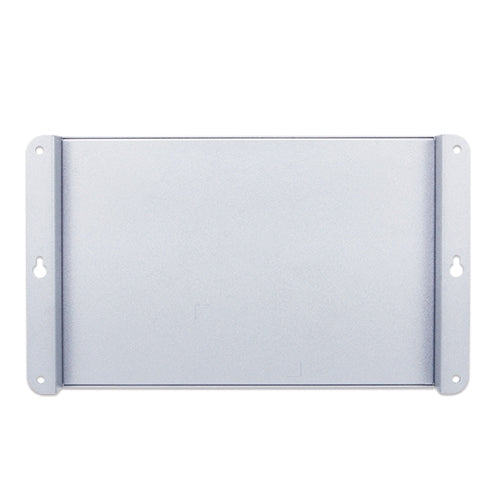

  • Compact size with fixed wall-mounted design



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet PSE
  • Up to 8 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
  • Advanced PoE management capabilities:
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • Detection of PD classification
  • Intelligent PoE features
    • PD alive check
    • PoE schedule
    • Scheduled power recycling



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Supports port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)



Quality of Service

  • Ingress and egress rate limit per port bandwidth control
  • Storm control support
    • Broadcast/Unknown unicast/Unknown multicast
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering



Security

  • Authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ login user access authentication
    • DHCP Option 82
  • Access control list
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC security
    • Static MAC
    • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention



Management

  • IPv4 and IPv6 dual stack management
  • Switch management interface
    • Web switch management
    • Console and telnet command line interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
    • 2.4-inch color LCD touch screen
  • SNMP Management
    • Four RMON groups (history, statistics, alarms and events)
    • SNMP trap for interface link up and link down notification
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through HTTP/TFTP
    • Dual images
    • Hardware-based reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • SFP-DDM (digital diagnostic monitor)
    • Cable diagnostics
    • ICMPv4/ICMPv6 remote ping
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS, NMSViewerPro and CloudViewerPro for deployment management
  • Provides ONVIF for co-operating with PLANET video IP surveillances
Hardware Specifications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

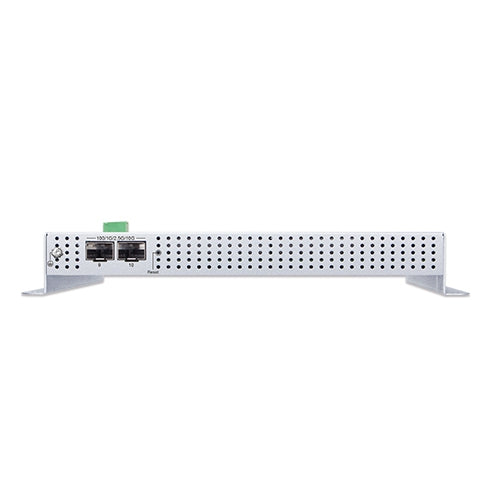

SFP+ Slots 2 100/1G/2.5G/10GBASE-X SFP+ interfaces
PoE Injector Port 8 ports with 802.3at PoE+ injector function (Ports1 to 8)
LCD Monitor 2.4-inch TFT color touchscreen
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
Connector 4-pin terminal block for power input
　Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
　Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC
Enclosure IP30 metal case
Installation Wall-mount
Dimensions (W x D x H) 245 x 36 x 140 mm
Weight 930g
Power Requirements 48~54V DC
(>52V DC for PoE and PoE+ output recommended)
Dual power input is required for maximum power loading
Maximum current 7.5A
Power Consumption System on:
　Max. 15.8 watts/53.91 BTU @54V DC input (288-watt PoE Budget)
Full loading with PoE function:
Max. 337.3 watts/1150.92 BTU @Dual 54V DC input (288-watt PoE Budget)
ESD Protection 6KV DC
LED Indicator System:
　PWR 1(Green)
　PWR 2 (Green)
　Ring (Green)
　Ring Owner (Green)
Per 10/100/1000T RJ45 PoE Ports:
　100/1000 LNK/ACT (Green)
　10/100 LNK/ACT (Amber)
　802.3af/at PoE-in-Use (Amber)
Per SFP+ Interface:
　1G/2.5G LNK/ACT (Green)
　10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 56Gbps/non-blocking
Throughput (packet per second) 41.67Mbps@ 64 bytes packet
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 12Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Jumbo Frame 12Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Power Over Ethernet
PoE Standard IEEE 802.3at PoE+ PSE
PoE Power Supply Type 802.3at
PoE Power Output Per port 54V DC
　End-span mode: maximum 36 watts
　Force mode: maximum 36 watts
　legacy mode: maximum 36 watts
Power Pin Assignment 802.3at PoE: End-span: 1/2(+), 3/6(-)
PoE Power Budget Single power input: 180W maximum (depending on power input)
Dual power input: 288W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V
Number of 802.3at PDs 8
PoE Management Functions
Enhanced PoE Mode System PoE Admin Mode
Consumption Mode/Allocation Mode
Temperature Threshold
Enhanced PoE Mode Standard/Legacy/Force
Active PoE Device Live Detection Yes
PoE Power Recycling Yes, daily or predefined schedule
PoE Schedule 4 schedule profiles
PoE Extended Mode Yes, max. up to 250 meters
Layer 2 Function
Port Mirroring TX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN 802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD snooping v1, v2, up to 256 multicast groups
QoS 8 mapping IDs to 8 level priority queues
　Port number
　802.1p priority
　DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control　
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Layer 3 Functions
IP Interfaces Max. 64 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 hardware static routing
IPv6 hardware static routing
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port Security Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS, NMSViewerPro and CloudViewerPro
Event Management Remote/Local Syslog
System log
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor map
LCD Management IP address, VLAN and QoS configuration
PoE management and status
Port management and status, and SFP information
Troubleshooting: cable diagnostic and remote IP ping
Maintenance: reboot, factory default and save configuration
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

You may also like
