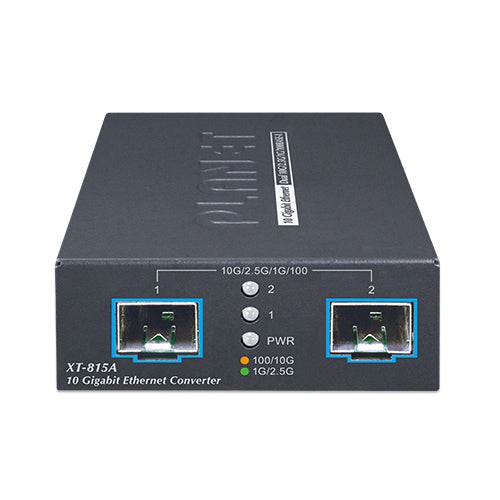

Planet 2-Port 10G/2.5G/1G/100BASE-X SFP+ Media Converter

Physical Port

• Media conversion between 10GBASE-X SFP+, 2.5GBASE-X, 1000BASE-X, and 100BASE-FX fiber optic
• Dual 10GBASE-X SFP+ fiber optic ports supporting
  • Multi-mode fiber with LC connector
  • Single-mode fiber with LC connector
• SFP transceivers support auto-detection for 10G/2.5G/1G/100Mbps

Layer 2 Features

• Fully compliant with IEEE 802.3ae/bz/an Ethernet standards
• Non-blocking full wire-speed forwarding performance
• 12K jumbo frame support for handling large data transmissions
• Transparent IEEE 802.1Q VLAN tagging and multicast pass-through
• IEEE 802.3x full-duplex flow control and back-pressure for packet loss prevention

Mechanical Features

• Durable metal casing for enhanced reliability
• LED indicators to facilitate network diagnostics
• Compact size and Plug-and-Play installation

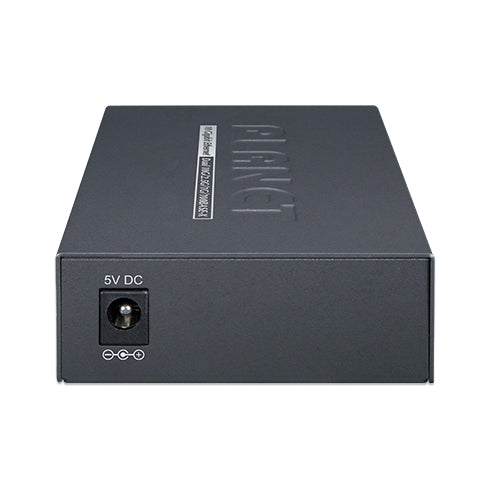

• External 5V DC, 2A power input socket
• Wall mounting or DIN-rail installation (optional)
• 0 to 50 degrees C operating temperature
• Compatible with PLANET 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48).
