5m (16ft) LC to SC Duplex OM4 Multimode Fiber Optic Patch Cable
5m (16ft) LC to SC Duplex OM4 Multimode Fiber Optic Patch Cable

GENERIC

5m (16ft) LC to SC Duplex OM4 Multimode Fiber Optic Patch Cable

MPN: LC-SC-FS-5M-OM4

SKU: CAB-LC-SC-FS-5M-OM4

$15.40
Availability Available 9 in stock.
Ask about this product
Delivery and Return
Description

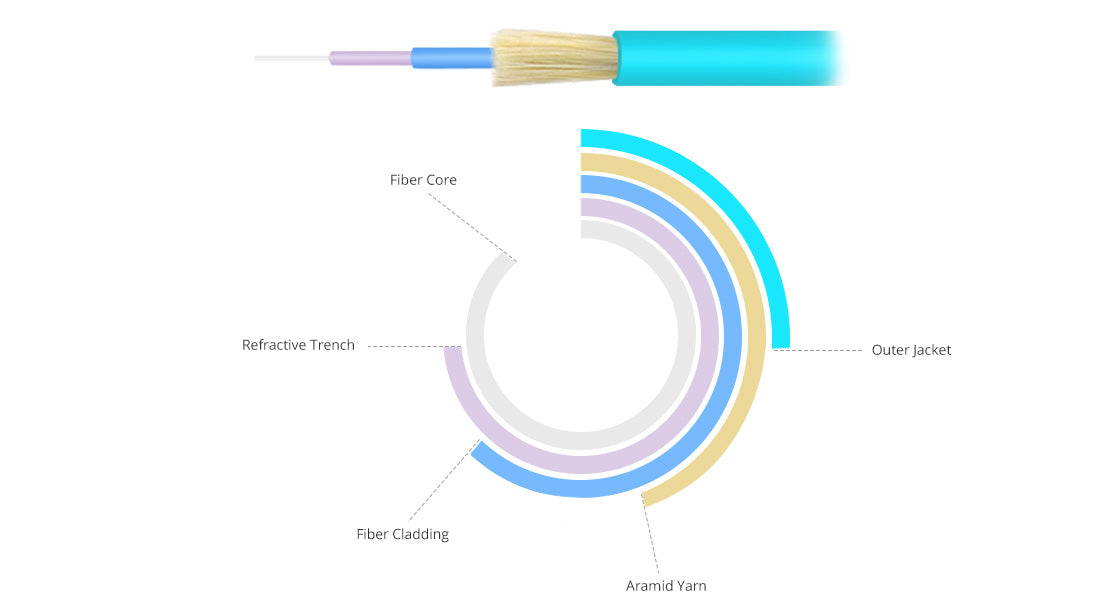

High Quality and Cost-Effective 50/125μm OM4 Multimode Bend Insensitive Fiber Optic Cable


The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
Product Specification

Connector Type LC to SC Polish Type UPC to UPC
Fiber Mode OM4 50/125μm Wavelength 850/1300nm
40G Ethernet Distance 150m at 850nm 100G Ethernet Distance 100m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Fiber Count Duplex Cable Diameter 2.0mm
Cable Jacket PVC Polarity A(Tx) to B(Rx)
Operating Temperature -20~70°C Storage Temperature -40~80°C
