OS2 9/125 Single Mode LC to LC Duplex Indoor Armored Fiber Optic Cable 1 Meter
OS2 9/125 Single Mode LC to LC Duplex Indoor Armored Fiber Optic Cable 1 Meter

Other

OS2 9/125 Single Mode LC to LC Duplex Indoor Armored Fiber Optic Cable 1 Meter

MPN: 90384

SKU: CAB-LC-LC-DXAM-SM-1M

$15.60
Availability
Ask about this product
Delivery and Return
Description

OS2 9/125 Single Mode LC/UPC to LC/UPC Duplex Indoor Armored Fiber Optic Cable

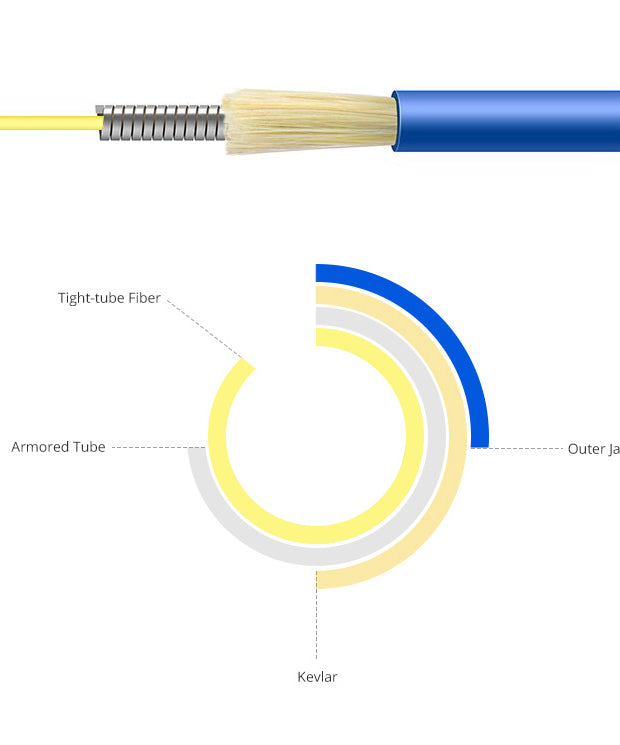

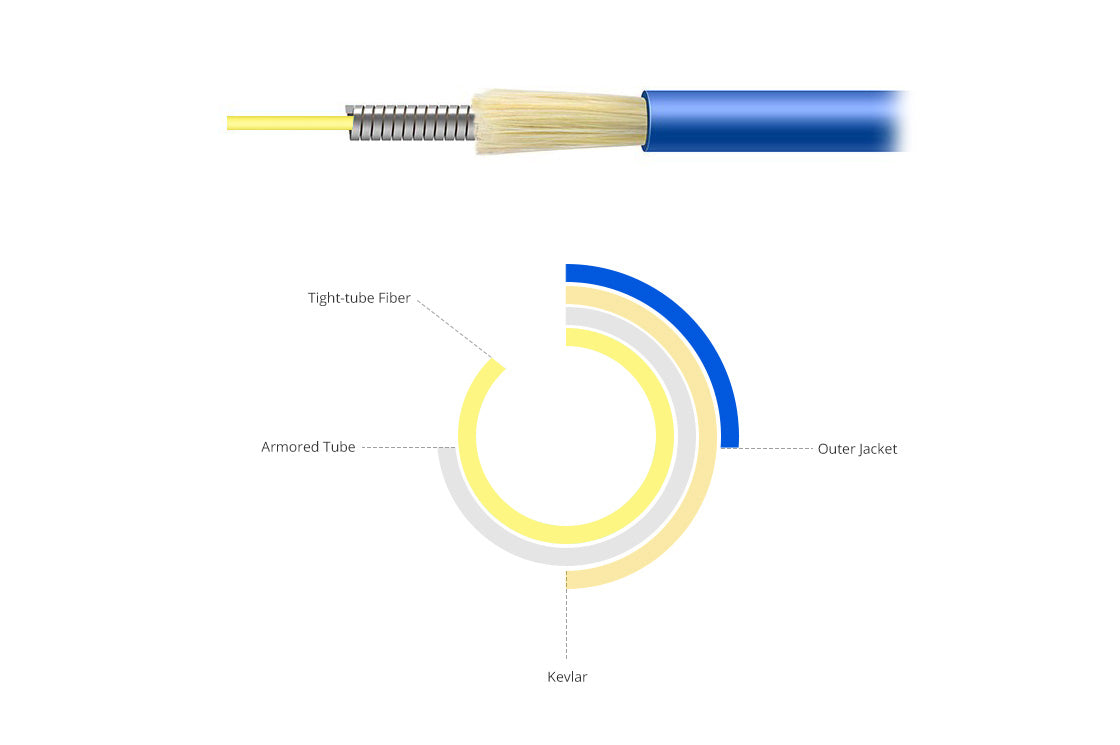

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

Product Specification

Connector Type LC to LC Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Fiber Count Duplex
Fiber Grade G.652.D Minimum Bend Radius (mm) 30D (Dynamic/Static)
Cable Diameter 3.0mm Cable Jacket PVC
Cable Color Blue Fiber Cords Structure Single Armored, Stainless Steel Tube
Tensile Loads (Long Term) 400 N Tensile Loads (Short Term) 600 N
Insertion Loss ≤0.3dB Return Loss ≥50dB
Operating Temperature -40~75°C Storage Temperature -45~85°C
