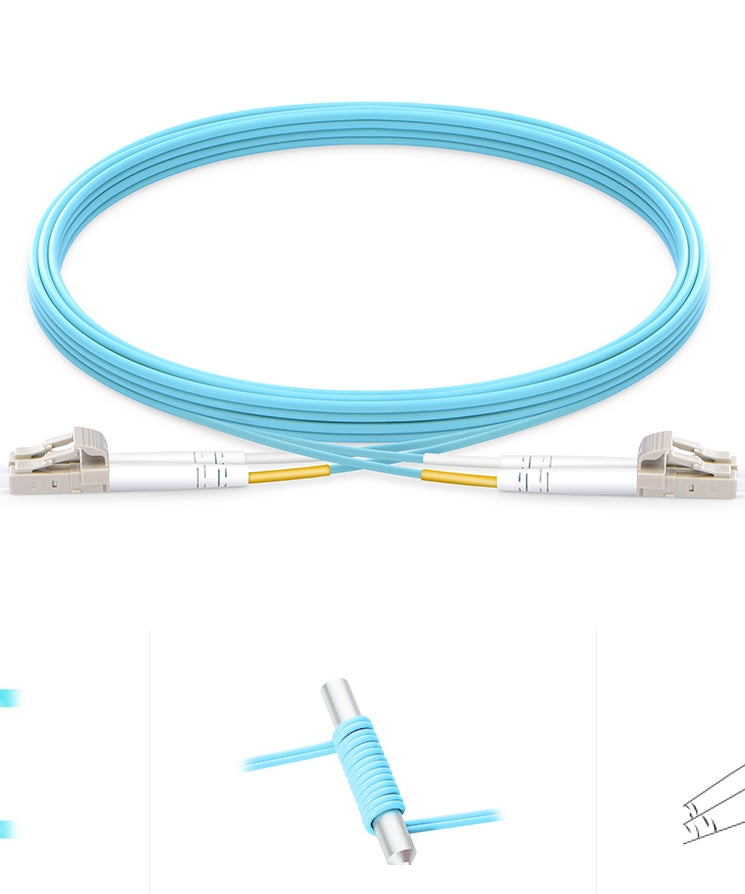

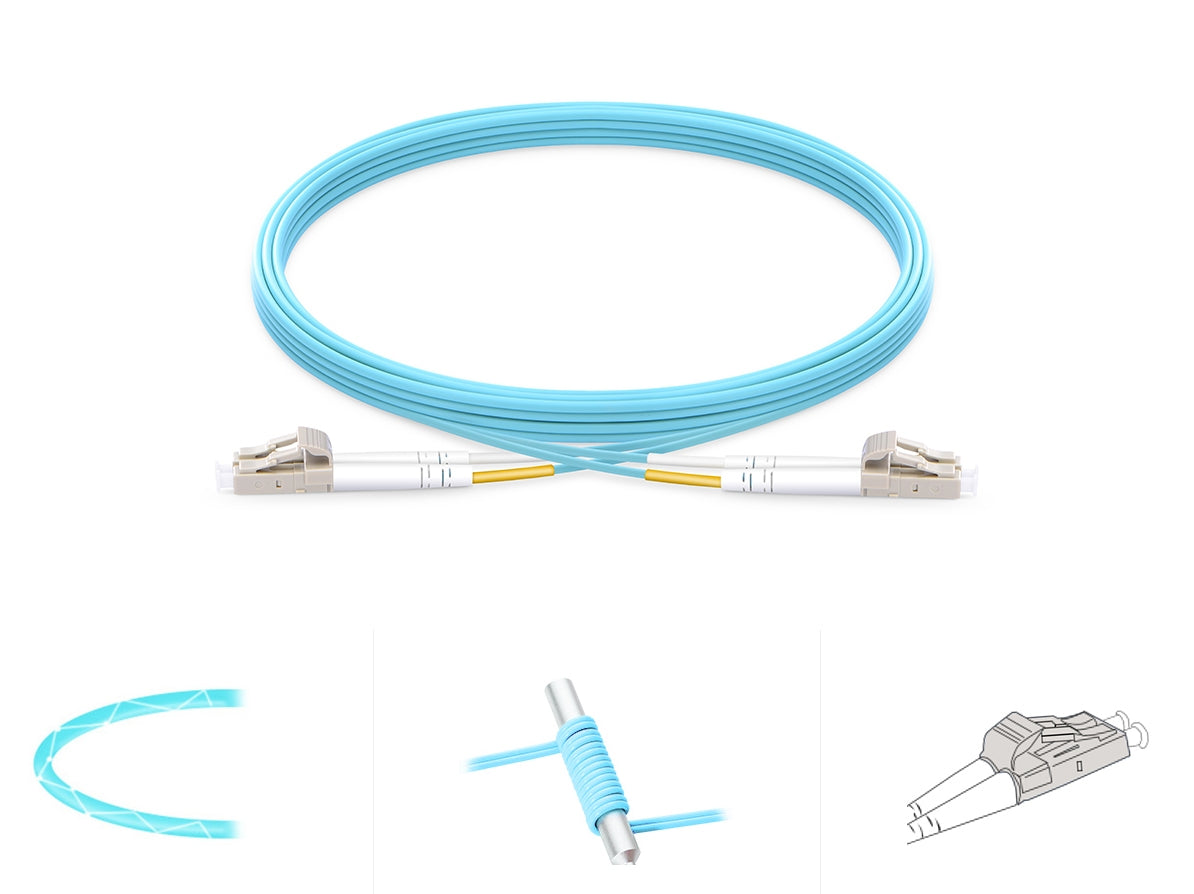

LC UPC to LC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 15m (49ft)
LC UPC to LC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 15m (49ft)

GENERIC

LC UPC to LC UPC Duplex OM3 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable 15m (49ft)

MPN: OM3-LC-LC-DX-15M

SKU: CAB-OM3-LC-LC-DX-15M

$23.39
$38.16


  • PVC (Riser) Flame-retardant Jacket

  • Grade A Precision Zirconia Ferrule Connectors Ensure Low Loss

  • Easy Polarity Management with Duplex Clips

  • Bend Insensitive Fiber & 7.5mm Min. Bend Radius

  • Optical Testing Ensures Network Performance


  • Compliant to TIA-604 (FOCIS)


Availability Available 1 in stock.
Ask about this product
Delivery and Return
Description

High Quality and Cost-Effective 50/125μm OM3 Multimode Bend Insensitive Fiber Optic Cable




The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.




This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.



Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM3 50/125μm
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥20dB
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~80°C
