5m LC to LC Duplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
5m LC to LC Duplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
5m LC to LC Duplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable
5m LC to LC Duplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable

Other

5m LC to LC Duplex OS2 Single Mode 7.0mm LSZH FTTA Outdoor Fiber Patch Cable

MPN: 97938

SKU: CAB-LC-LC-DXAM-SM-5M

$25.10
$29.33
Availability
Ask about this product
Delivery and Return
Description

Armored LSZH Fiber To The Antenna (FTTA) Patch Cable for Outdoor Applications


FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution.

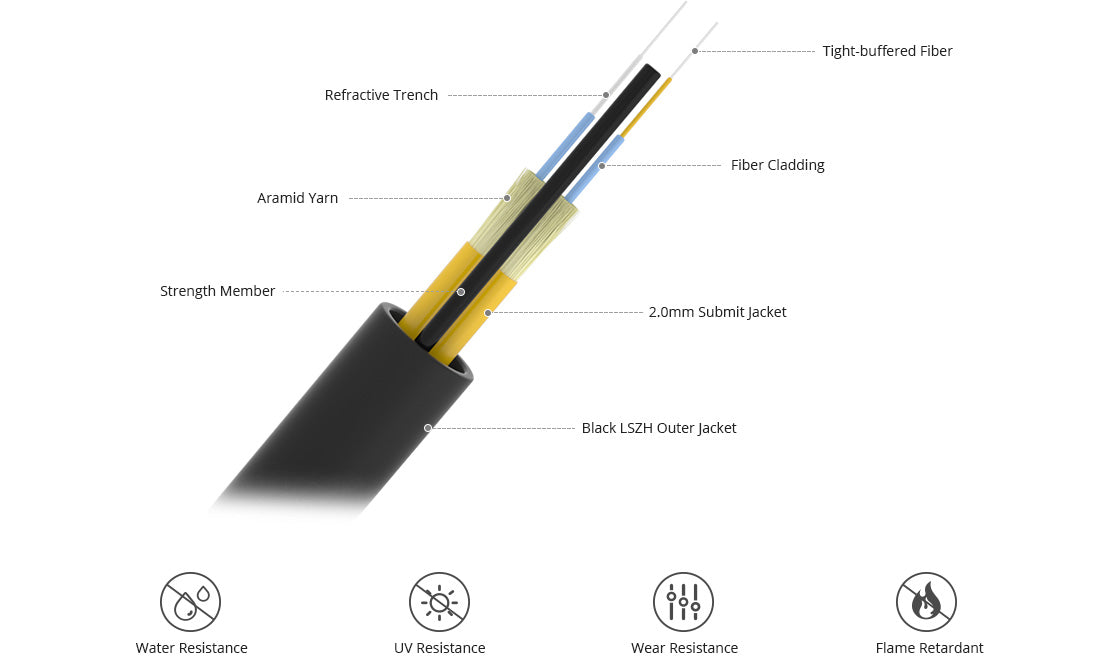

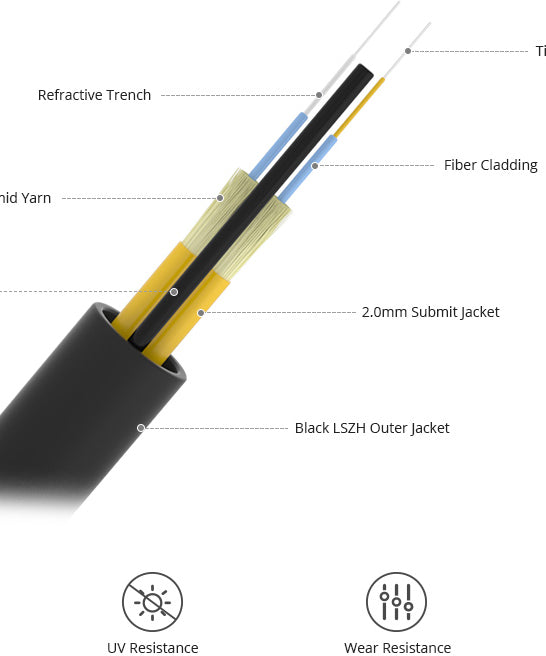

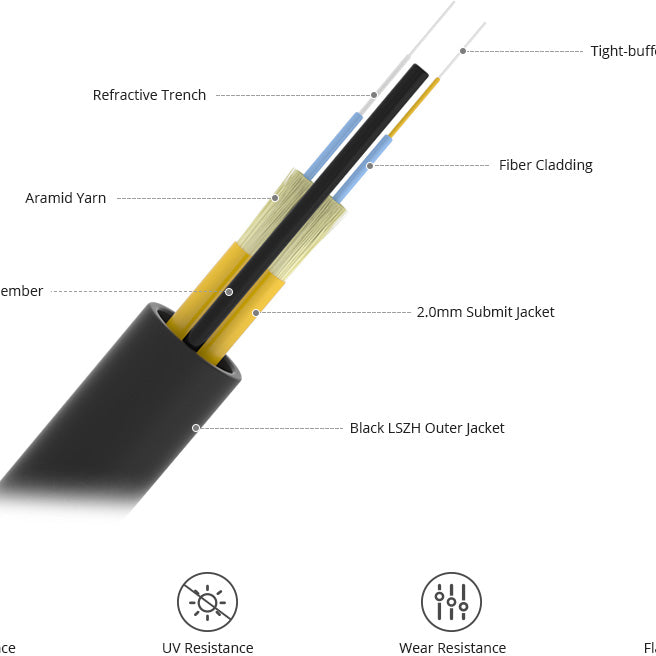

Consisting of Corning fiber cable and LC UPC duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.

Product Specification
Connector Type LC to LC Polish Type UPC to UPC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Insertion Loss ≤0.3dB Return Loss ≥50dB
Fiber Grade Corning G.657.A1 Min. Bend Radius (Dynamic/Static) 20/10D
Attenuation at 1310 nm 0.36 dB/km Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex Cable Jacket Low Smoke Zero Halogen (LSZH)
Cable Diameter (Outer/Inner) 7.0/2.0mm Armored Breakout Length (End A/B) 0.03/0.34m
Tensile Strength (Long Term/Short Term) 400/200N Crush Resistance (Long Term/Short Term) 2200/1100N
Operating Temperature -20~70°C Storage Temperature -40~80°C
