Tripp Lite 7ft Cat5e 350MHz Snagless Molded Patch Cable R...
Tripp Lite 7ft Cat5e 350MHz Snagless Molded Patch Cable RJ45 M/M Blue
Tripp Lite 7ft Cat5e 350MHz Snagless Molded Patch Cable RJ45 M/M Blue

Tripp Lite

Tripp Lite 7ft Cat5e 350MHz Snagless Molded Patch Cable RJ45 M/M Blue

MPN: N001-007-BL

SKU: CAB-CAT5EBL-7

$5.52


  • Premium cabling for Category 5 and 5e applications—rated for 350 MHz/1 Gbps communications

  • IEEE 802.3ab

  • PVC 4-pair stranded UTP

  • All cables feature boots with integral strain-relief and RJ45 (Male) connectors

Availability Available 23 in stock.
Ask about this product
Delivery and Return
Description

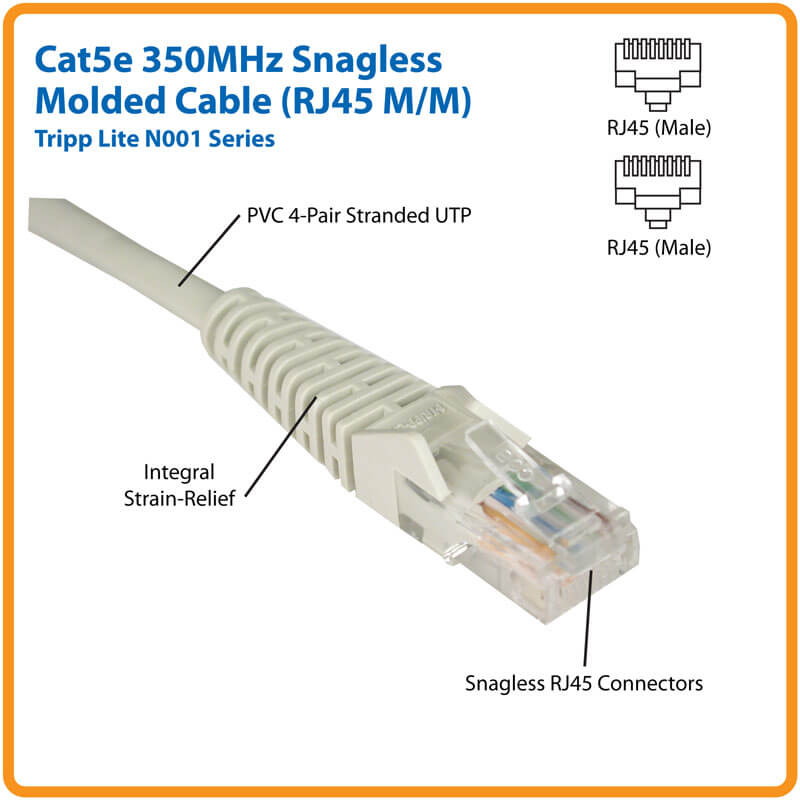

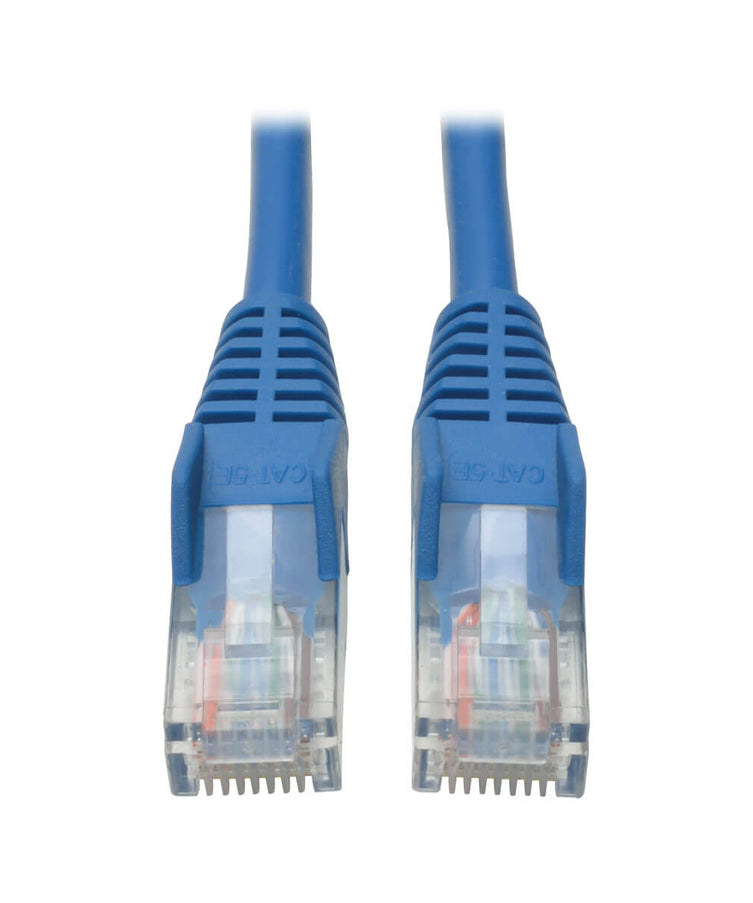

Tripp Lite's 7-ft. (2.13 m) blue snagless category 5e (Cat5e) patch cable has 2 snagless RJ45 molded male connectors featuring integral strain relief. The cable is manufactured from PVC 4-pair stranded UTP and is rated for 350MHz/1Gbps communication. All cables are offered in a variety of lengths and colors for all category 5 (Cat5) and 5e cabling needs. Standard category 5e patch cables are also available.

  • Cabling for category 5 (Cat5) and 5e (Cat5e) applications
  • Length: 7-ft. (2.13 m) color: blue connectors: RJ45 male
  • Feature molded connectors with integral strain relief
  • Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
  • PVC 4-pair stranded UTP
  • Rated for 350MHz/ 1Gbps communication
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
  • Available in other colors and lengths
  • Also available without the snagless feature (N002 series)
  • Also available - Cat6 cables (N201 series)



Specifications

OVERVIEW
UPC Code 037332042484
Technology Cat5/5e
POWER
Power Over Cable (PoC) Support No
PHYSICAL
Cable Jacket Color Blue
Cable Jacket Material PVC
Cable Jacket Rating CM
Cable Shielding UTP
Cable Outer Diameter (OD) 5.0mm
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 26 AWG
Cable Length (ft.) 7
Cable Length (in.) 84
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.15
COMMUNICATIONS
Bandwidth per TIA Standard 100 MHz
Maximum Bandwidth as Tested 350 MHz
Network Compatibility 1 Gbps (Gigabit)
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating   Gold
Connector Type Molded; Snagless
Wiring Configuration EIA/TIA 568B
FEATURES & SPECIFICATIONS
IP68 Rated   No
Snagless Connector No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
