DC-1042 - Outdoor Shielded Dry Gel Tape CAT5e FTP Cable 1000ft Spool
DC-1042 - Outdoor Shielded Dry Gel Tape CAT5e FTP Cable 1000ft Spool

Shireen

DC-1042 - Outdoor Shielded Dry Gel Tape CAT5e FTP Cable 1000ft Spool

MPN: DC-1042

SKU: CAB-C5EFTPDBGT1000SB

$258.50

  • Dry Gel Tape for water resistance
  • Direct Burial
  • Outdoor Cable UV Protected
  • FTP Foil Twisted Pair with ground wire
  • 24AWG
  • TIA/EIA-568-B.2 & IEC/ISO 11801
Availability Available 6 in stock.
Ask about this product
Delivery and Return
Description

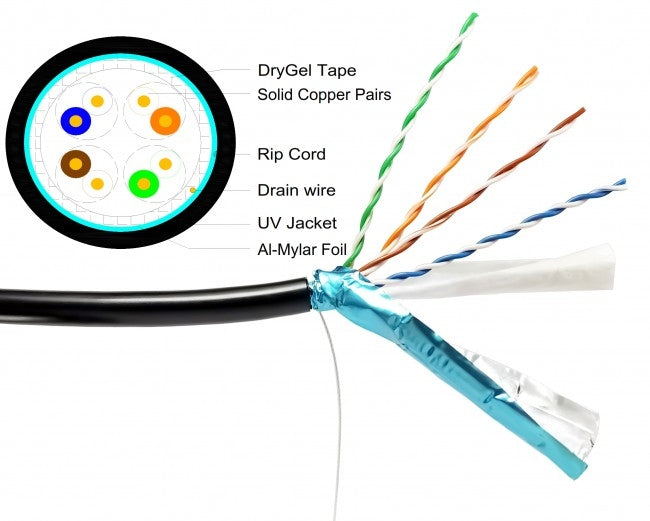

DC-1042 Outdoor Shielded Gel Tape CAT5e FTP Cable

 Shireen Inc. Cable Series, Shielded Gel Tape
Shireen’s CAT5e FTP Cable is a high quality outdoor shielded gel tape CAT5e cable. It features an outer jacket, 4 Twisted pairs of 24AWG wire with LDPE + Dry Gel Tape. Excellent or use in any outdoor/direct burial application of networking, data transfer and phone lines. It supports 10/100/1000Mbps.



  • Dry Gel Tape for water resistance
  • Direct Burial
  • Outdoor Cable UV Protected
  • FTP Foil Twisted Pair with ground wire
  • 24AWG
  • TIA/EIA-568-B.2 & IEC/ISO 11801

Specifications DC-1042

Conductor

Pairs4
Total Conductor8
AWG24
Dia. of ConductorΦ 0.51±0.02mm
MaterialSolid Bare Copper

Insulation

MaterialHDPE
Nom. Thickness0.24mm
Dia.Φ 0.95±0.05mm
Elongation≥300%

Shielding

Vertical WrapA1-Mylar Tape
Coverage %100%
AWG24
Drain Wire TC - Solid Tinned Copper

Outer Sheath

FillingGel Filled
MaterialLDPE
Rip Cord200Dx3
Nom. Thickness0.72±0.05mm
O.D.Φ 6.50±0.3mm
ColorBlack
