MikroTik RB1100Dx4 1.4GHz Quad Core 60GB 13xGb LAN L6 Dude

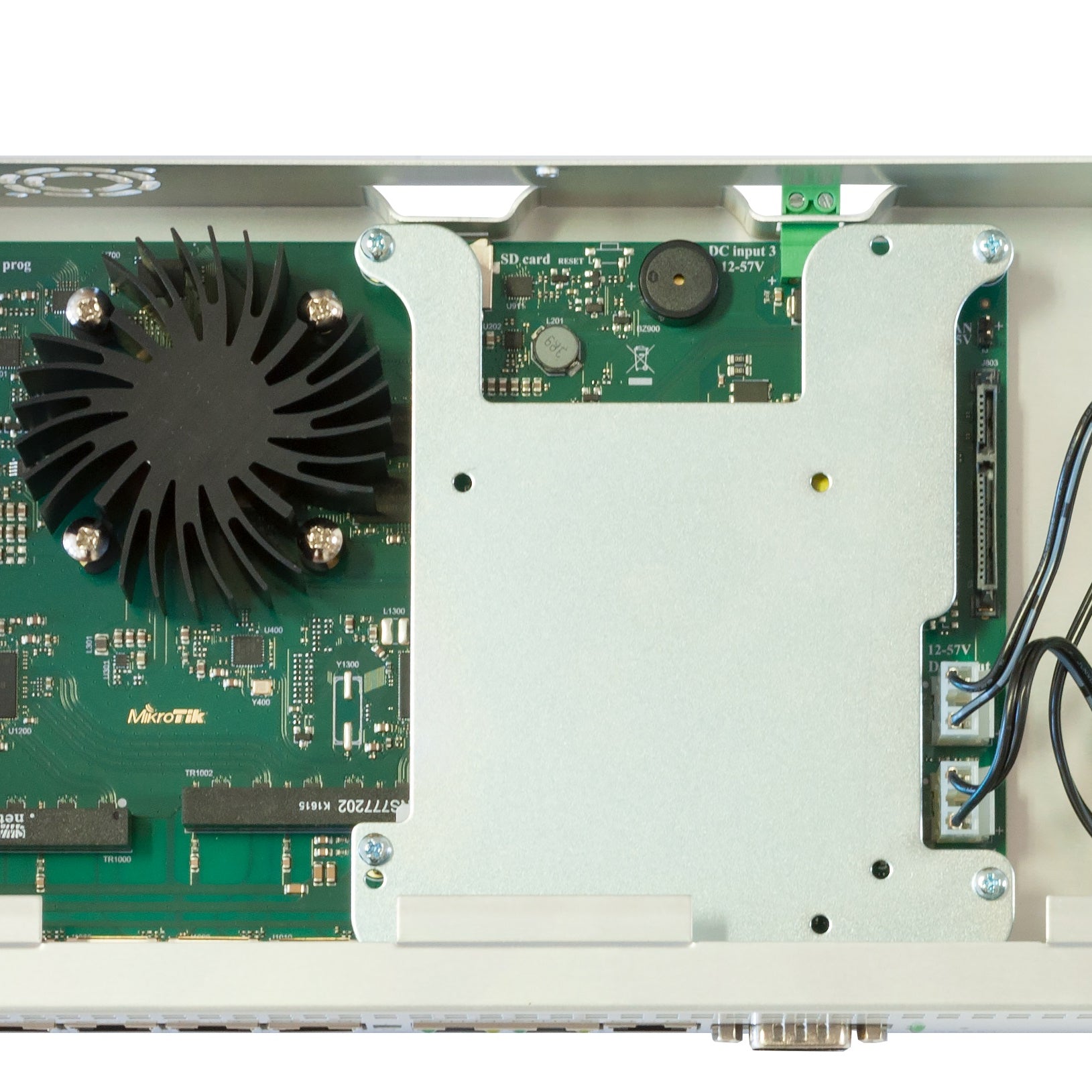

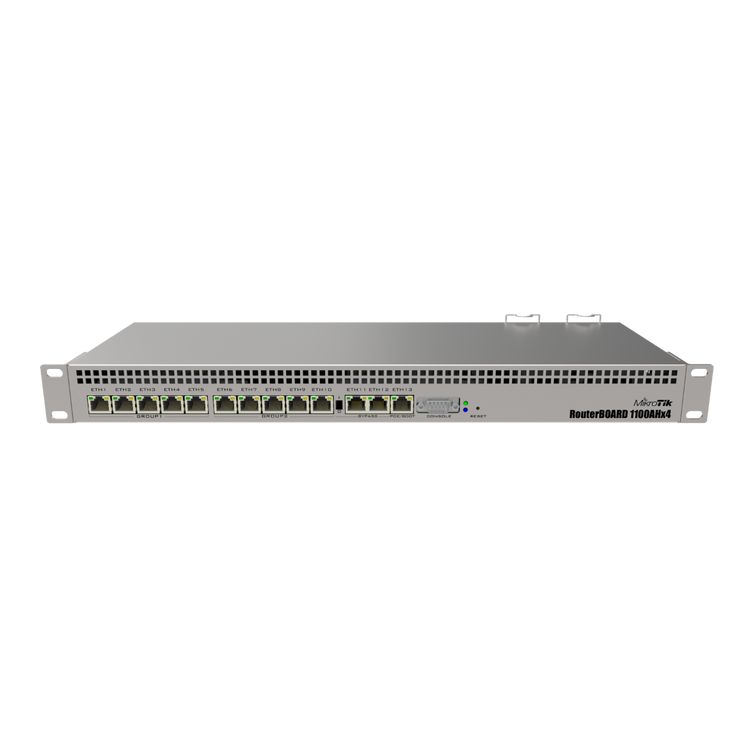

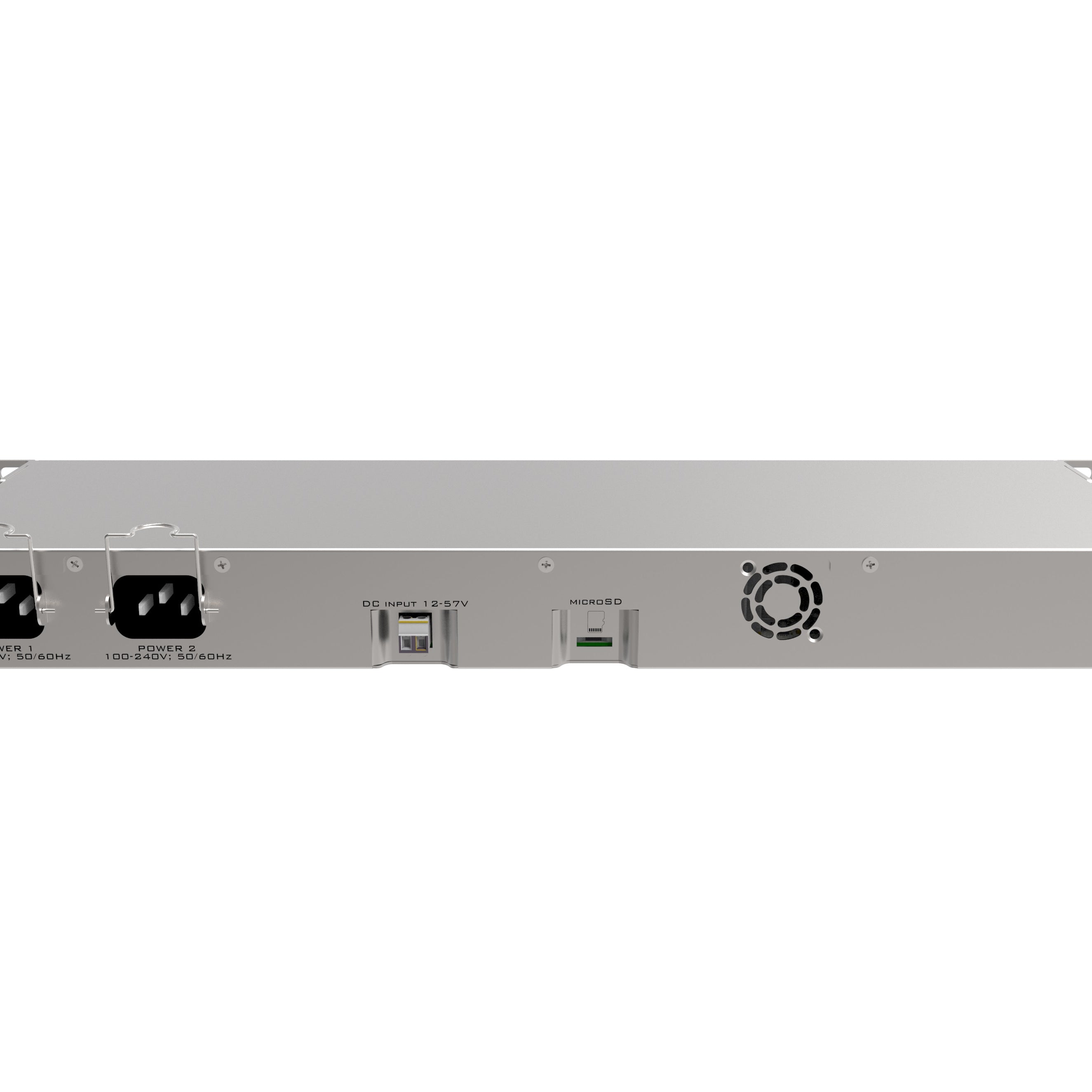

<p>New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).</p> <p>&nbsp;</p> <p>Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.</p> <p>&nbsp;</p> <p>Unit features two IEC failover power connectors, supports passive or 802.3at/af PoE input and has a DC telecom power connector for -48V DC powering. It uses passive cooling and is absolutely quiet.</p> <p><br><br></p> <table class="table9"> <tbody> <tr> <td colspan="2"><br> <h2>Product specifications</h2> </td> </tr> <tr> <td><strong>Product code</strong></td> <td>RB1100Dx4</td> </tr> <tr> <td><strong>CPU nominal frequency</strong></td> <td>1.4 GHz</td> </tr> <tr> <td><strong>CPU core count</strong></td> <td>4</td> </tr> <tr> <td><strong>Size of RAM</strong></td> <td>1 GB</td> </tr> <tr> <td><strong>10/100/1000 Ethernet ports</strong></td> <td>13</td> </tr> <tr> <td><strong>Power Jack</strong></td> <td>2</td> </tr> <tr> <td><strong>PoE in</strong></td> <td>802.3af/at</td> </tr> <tr> <td><strong>Supported input voltage</strong></td> <td>20 V - 57 V</td> </tr> <tr> <td><strong>Voltage Monitor</strong></td> <td>Yes</td> </tr> <tr> <td><strong>PCB temperature monitor</strong></td> <td>Yes</td> </tr> <tr> <td><strong>Dimensions</strong></td> <td>444 x 148 x 47 mm</td> </tr> <tr> <td><strong>Operating System</strong></td> <td>RouterOS</td> </tr> <tr> <td><strong>License level</strong></td> <td>6</td> </tr> <tr> <td><strong>Current Monitor</strong></td> <td>Yes</td> </tr> <tr> <td><strong>CPU</strong></td> <td>AL21400-1400-A0-E-1AN-8-C</td> </tr> <tr> <td><strong>Max Power consumption</strong></td> <td>25W</td> </tr> <tr> <td><strong>Serial port</strong></td> <td>RS232</td> </tr> <tr> <td><strong>Storage type</strong></td> <td>NAND</td> </tr> <tr> <td><strong>Storage size</strong></td> <td>128 MB</td> </tr> <tr> <td><strong>CPU Threads count</strong></td> <td>4</td> </tr> <tr> <td><strong>SATA ports</strong></td> <td>2x SATA3</td> </tr> <tr> <td><strong>M.2 slots</strong></td> <td>2</td> </tr> <tr> <td><strong>Extended storage</strong></td> <td>60GB M.2 SSD included</td> </tr> </tbody> </table> <p>&nbsp;</p> <h2>Ethernet test results</h2> <table class="table9"> <tbody> <tr> <td colspan="2"><strong>RB1100Dx4</strong></td> <td colspan="6"><strong>AL21400 1G all port test</strong></td> </tr> <tr> <td rowspan="2"><strong>Mode</strong></td> <td rowspan="2"><strong>Configuration</strong></td> <td colspan="2"><strong>1518 byte</strong></td> <td colspan="2"><strong>512 byte</strong></td> <td colspan="2"><strong>64 byte</strong></td> </tr> <tr> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> <td><strong>kpps</strong></td> <td><strong>Mbps</strong></td> </tr> </tbody> <tbody> <tr> <td>Bridging</td> <td>none (fast path)</td> <td>606.5</td> <td>7,365.3</td> <td>1,736.4</td> <td>7,112.3</td> <td>5,509.7</td> <td>2,821.0</td> </tr> <tr> <td>Bridging</td> <td>25 bridge filter rules</td> <td>606.5</td> <td>7,365.3</td> <td>1,107.8</td> <td>4,537.5</td> <td>1,153.2</td> <td>590.4</td> </tr> <tr> <td>Routing</td> <td>none (fast path)</td> <td>606.5</td> <td>7,365.3</td> <td>1,736.4</td> <td>7,112.3</td> <td>5092.3</td> <td>2,607.3</td> </tr> <tr> <td>Routing</td> <td>25 simple queues</td> <td>606.5</td> <td>7,365.3</td> <td>933.6</td> <td>3,824.0</td> <td>960.3</td> <td>491.7</td> </tr> <tr> <td>Routing</td> <td>25 ip filter rules</td> <td>543.7</td> <td>6,602.7</td> <td>561.8</td> <td>2,301.1</td> <td>564.6</td> <td>289.1</td> </tr> </tbody> </table>
