MikroTik CCR1016-12S-1S+ Cloud Core Router with Tilera Tile-Gx16 CPU, 16-Port SFP, 1 SFP+ 10G Cage, Dual Redundant Power
MikroTik CCR1016-12S-1S+ Cloud Core Router with Tilera Tile-Gx16 CPU, 16-Port SFP, 1 SFP+ 10G Cage, Dual Redundant Power

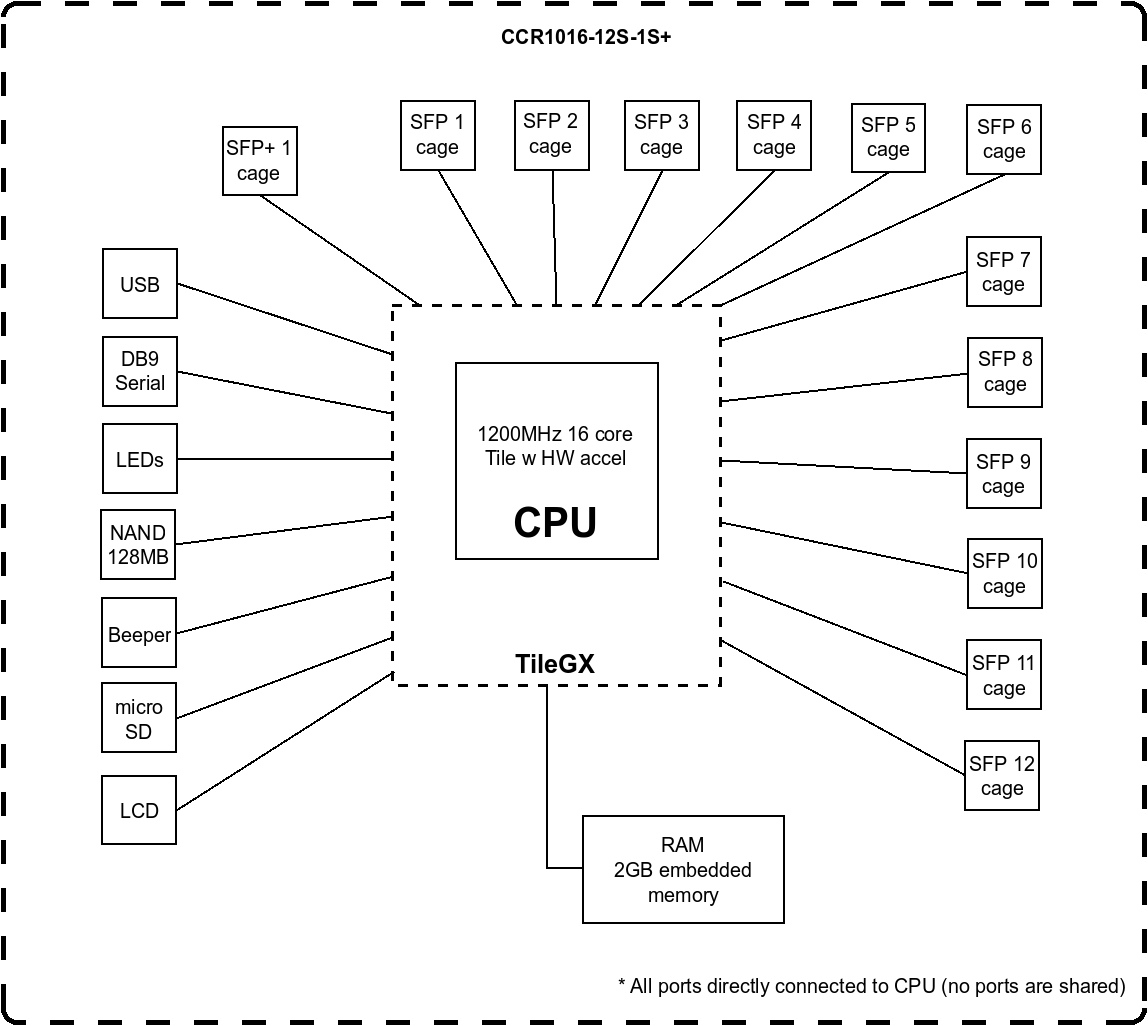

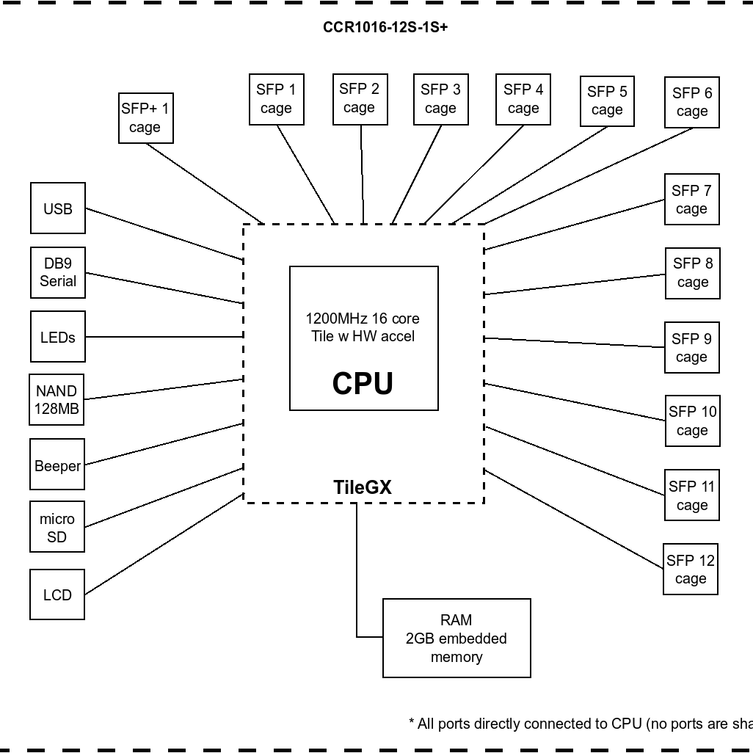

CCR1016-12S-1S+ Block Diagram

Mikrotik

MikroTik Cloud Core Router with Gx16 CPU 16-Port SFP 1 SFP+ 10G Cage Dual Redundant Power

MPN: CCR1016-12S-1S+

SKU: MIK-CCR1016-12S-1S

$815


  •  12 SFP ports for 1.25 Gigabit connectivity

  •  1 SFP+ port for 10 Gigabit connectivity

  •  Tilera 16-core CPU, 1.2 GHz per core, 2 GB RAM

  •  Dual power supplies built-in for redundancy

  •  LCD touch screen

  •  1U rackmount enclosure

  •  full size USB slot and dual PSU for redundancy

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

CCR1016-12S-1S+1U

rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.





Specifications

Details
Product code CCR1016-12S-1S+
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 443 x 197 x 44 mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
Suggested price $745.00


Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 47.5 W
Max power consumption without attachments 34 W


Fiber

Details
SFP DDMI Yes
SFP ports 12
SFP+ ports 1


Peripherals

Details
Memory card type microSD
Memory Cards 1
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
