Citel P8AX09-T-FF Gas Tube Coaxial Surge Protector 25 W DC-5GHz

MPN: P8AX09-T-FF

SKU: CIT-WRLA-DC-5-TNCFF

$62.50
$65
Availability
Ask about this product
Delivery and Return
Description

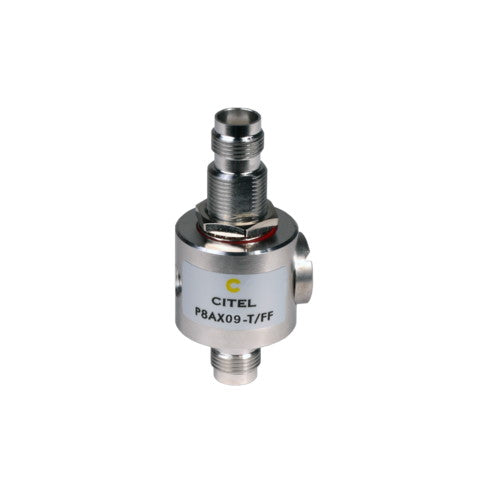

Citel P8AX09 Gas Tube Coaxial Surge Protector with TNC-Female to TNC-Female Connectors, 25 W, DC-5GHz, Waterproof



The P8AX series coaxial surge protectors have been designed to protect antennas, microwaves, broadband applications, two-way radios, cellular equipment and GPS equipment against lightning surges and electrical transients. They are a first line of defense for your sensitive equipment.



High-Frequency Surge Protection:



    • 20kA transient amps protection (8/20µs)
    • 5kA transient amps protection (10/350µs)
    • DC Pass to +/-48V
    • VSWR < 1.2
    • Insertion Loss < 0.1dB
    • Bi-directional, series installed
    • Removable GDT



Applications:



    • Tower Mounted Amplifiers (TMA)
    • Global Positioning Systems (GPS)
    • Antenna Systems
    • Tower Top Electronics (TTE)
    • Transmitters and Receivers
    • WiFi
    • Broadband Wireless



ELECTRICAL PROPERTIES

Max. load current 10 A
Max. frequency DC-3.5GHz
Insertion loss < 0.2 dB

Residual Current

Leakage current to Ground

 None
Max. discharge current
max. withstand @ 8/20 µs by pole		 20 kA
Protection mode(s) Common mode
Protection level
@ In (8/20µs)		 < 700 V
Impulse current
2 x 10/350µs Test - D1 Category		 1 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category		 5 kA
Impedance 50 ohms
Max Power 25 W
Return loss > 20 dB
VSWR <1.2:1
DC Pass True
Insulation resistance ≥10 GOhms



MECHANICAL PROPERTIES

Technology Gas discharge tube
Connection to Network Connector TNC Female/Female
Mounting Feedthrough
Housing material Brass/Surface plating : Cu Zn Sn
Operating temperature -40/+85°C
Protection rating IP66
Outdoor application Yes
Failsafe behavior Short-circuit
Disconnection indicator Transmission interrupt
Spare module(s) BBHF-90V
Dimensions See diagram
Contacts Bronze/Surface Au-Ag
Insulation material

PTFE
