Citel P8AX09-N-MF Gas Tube Coaxial Surge Protector DC-5GHz
Citel P8AX09-N-MF Gas Tube Coaxial Surge Protector DC-5GHz
Citel P8AX09 Gas Tube Coaxial Surge Protector DC-5GHz
Citel P8AX09-N-MF Gas Tube Coaxial Surge Protector DC-5GHz

Citel

Citel P8AX09-N-MF Gas Tube Coaxial Surge Protector DC-5GHz

MPN: P8AX09-N/MF

SKU: CIT-P8AX09-N-MF

$79


  • RF coaxial surge protector

  • 3.5 GHz

  • Connectors : N

  • Low insertion loss

  • Removale GDT

  • DC-pass

  • Bi-directional protection

Availability
Ask about this product
Delivery and Return
Description

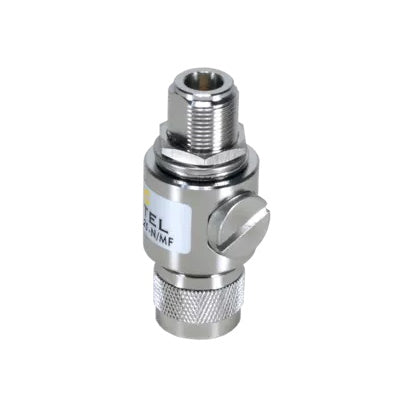

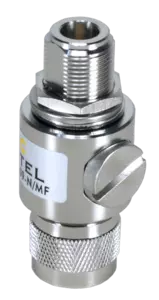

Citel P8AX09 Gas Tube Coaxial Surge Protector with N-Male to N-Female Connectors, DC-5GHz

The P8AX series coaxial surge protectors have been designed to protect antennas, microwaves, broadband applications, two-way radios, cellular equipment and GPS equipment against lightning surges and electrical transients. They are a first line of defense for your sensitive equipment.



High-Frequency Surge Protection:

    • 20kA transient amps protection (8/20µs)
    • 5kA transient amps protection (10/350µs)
    • DC Pass to +/-48V
    • VSWR < 1.2
    • Insertion Loss < 0.1dB
    • Bi-directional, series installed
    • Removable GDT



Applications:



    • Tower Mounted Amplifiers (TMA)
    • Global Positioning Systems (GPS)
    • Antenna Systems
    • Tower Top Electronics (TTE)
    • Transmitters and Receivers
    • WiFi
    • Broadband Wireless


Frequency range f DC-3.5 GHz
Insertion loss   < 0.2 dB
Return loss   > 20 dB
Impedance   50 ohms
VSWR   <1.2:1
Max. load current IL 10 A
Residual Current Ipe None
Operating current Ic None
Max. discharge current Imax 20 kA
Protection mode(s)   Common mode
Protection level Up < 650 V
Impulse current Iimp 1 kA
Nominal discharge current In 5 kA
Max Power   25 W
Typical let through energy   300 µJ
DC Pass ZERTZAERTZERTZER True
Insulation resistance IR ≥10 GOhms
Technology   Gas discharge tube
Connection to Network   connector N Male/Female
Mounting   Feedthrough
Housing material   Brass/Surface plating : Cu Zn Sn
Operating temperature Tu -40/+85°C
Protection rating   IP66
Outdoor application   Yes
Failsafe mode   Short-circuit
Disconnection indicator   Transmission interrupt
Spare module(s)   BBHF-90V
Dimensions   See diagram
Contacts   Bronze/Surface Au-Ag
Insulation material   PTFE
Weight   0.146 kg
Standards compliance   IEC 61643-21 / EN 61643-21 / UL497C / UL497E
RohS compliance   Yes
