Citel MJ8-POE-B, Power-over-Ethernet (PoE) Protection

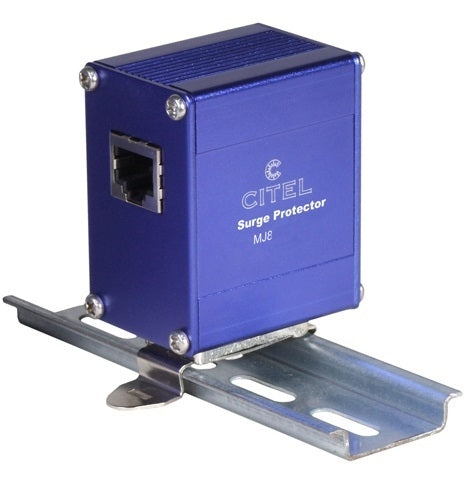

CITEL MJ8-POE-B GIGABIT ETHERNET POE SURGE ARRESTOR
CITEL MJ8-POE-B GIGABIT ETHERNET POE SURGE ARRESTOR

Citel

Citel MJ8-POE-B, Power-over-Ethernet (PoE) Protection

MPN: MJ8-POE-B

SKU: CIT-MJ8-POE-B

$69
Availability Available 1 in stock.
Ask about this product
Delivery and Return
Description

MJ8-POE-B Features

  • 10/100/1000 BaseT compatible
  • Sheilded enclosure and connectors
  • Clamp Voltage 7.5 Vdc on ping 1,2,3,6 and 60 Vdc on pins 4,5,7,8
  • 2kA discharge capability
  • IEC 61643-21
  • UL497B


The MJ8-POE is designed to protect sensitive data-processing equipment connected to a PoE (Power over Ethernet) network from transient over voltages.

The MJ8-POE surge protector is deployed in signal network applications with data transmission speeds of up to1000 Mbps. The surge protector is housed in a shielded enclosure with high quality shielded RJ45 jacks.

The transient protection circuit is based on high energy gas discharge tubes (GDT) and a network of fast response silicon avalanche diodes (SAD) to achieve sharp clamping of very large surge events.
Type RJ45 Surge protector for POE-B
Number of Protected Poles 4 Pairs + Shielding
Max. Load Current (if connected in series) 1200mA
Nominal Discharge Current - 15 x 8/20 �s impulses 500A
Portection Level 70V
Max Operating Voltage 60VDC
Network POE and Gigabit Ethernet, High POE
Nominal Line Voltage 5/48VDC
Max. Frequecy > 100MHz
Max. data rate 1000 Mbps
