Citel DS210-12DC DC Power Supply Surge Protector, 12V

MPN: DS210-12DC

SKU: CIT-DS210-12DC

$90


  • Surge protector for DC supplies

  • 12 Vdc

  • Imax : 2 kA

  • Pluggable module

  • Operating indicator

  • IEC 61643-11, EN 61643-11 and UL1449 ed.4 compliance

Availability
Ask about this product
Delivery and Return
Description

Citel DS210-12DC DC Power Supply Surge Protector, 12V

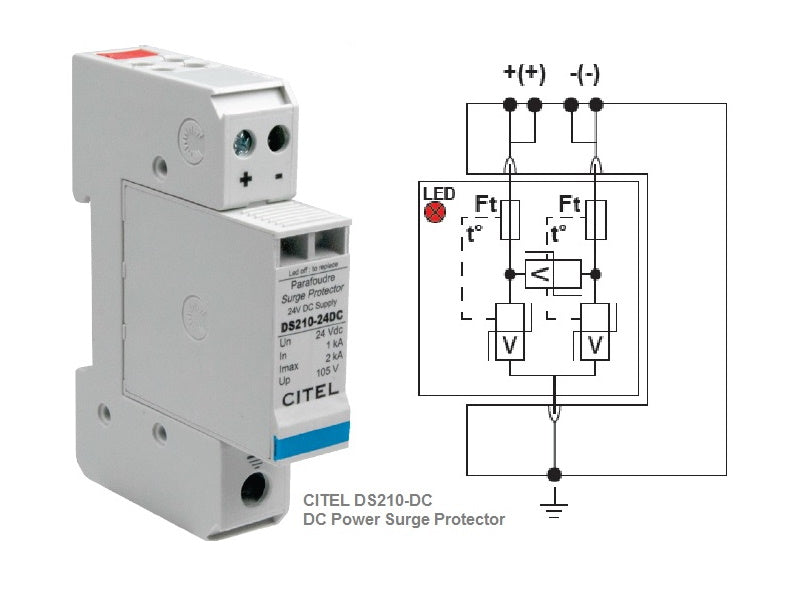

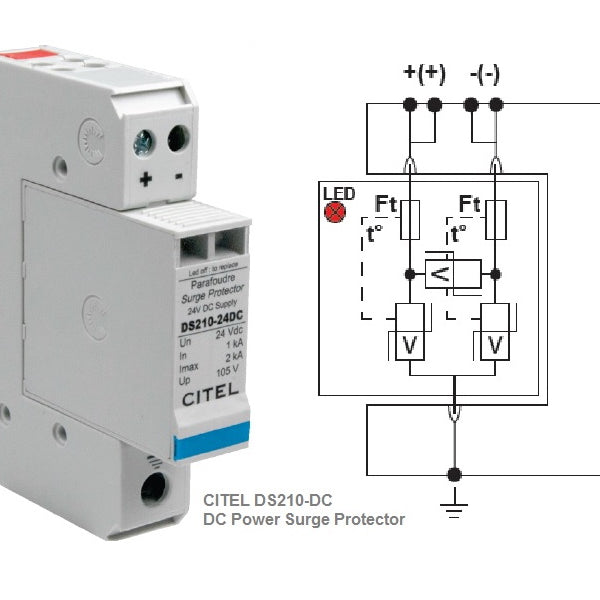

The DS210..DC surge protector is designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage (12, 24, 48, 75, 95,110 and 130Vdc): the varistors have thermal disconnection devices to control any end-of-life case. A green LED that indicates «Power On» when lit and «Disconnection» when off, facilitates maintenance. In addition, the «surge protection» function is pluggable to make replacement simple and rapid (spare module: DSM210-..DC).

The DS210..DC is DIN rail compatible and is connected in parallel on the line to be protected.
SPD type   2 (or 3)
Network   DC network 12 Vdc
Nominal DC voltage Un-dc 12 Vdc
Max. AC operating voltage Uc 10 Vac
Max. DC operating voltage Uc 15 Vdc
Max. load current IL 20 A
Residual Current Ipe < 0.1 mA
Operating current Ic < 0.1 mA
PV Permanent Operating current Icpv < 0.1 mA
Follow current If None
Nominal discharge current In 1 kA
Max. discharge current Imax 2 kA
Total Maximum discharge current Imax Total 2 kA
Current withstand short circuit PV Iscpv 1000 A
Connection mode(s)   +/-/PE
Protection mode(s)   Common/Differential mode
Protection level +/PE (-/PE) Up 85 V
Technology   MOV
SPD configuration   2 poles
Connection to Network   By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Format   Plug-in modular box
Mounting   Symmetrical rail 35 mm (DIN 60715)
Housing material   Thermoplastic UL94 V-0
Operating temperature Tu -40/+85°C
Protection rating   IP20
Failsafe mode   disconnection from DC line
Disconnection indicator   Green led off
Spare module(s)   DSM210-12DC
Dimensions   See diagram
Weight   0.092 kg
Standards compliance   IEC 61643-11 / EN 61643-11 / UL1449 4ed.
Thermal disconnector   internal
Fuses   Fuses type gG- 10 A
