Ubiquiti Networks

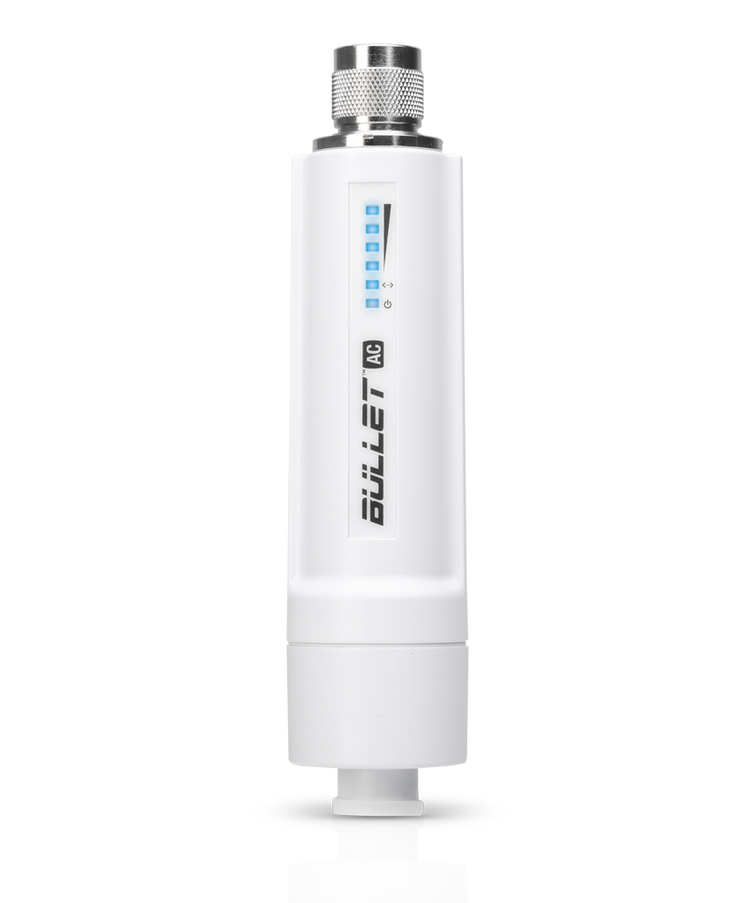

Ubiquiti B-DB-AC-US 2.4/5 GHz Dual-Band Bullet airMAX 802.11ac Radio

MPN: B-DB-AC-US

SKU: UBI-B-DB-AC-US

$89
$99


  • 2412 - 2462 MHz / 5725 - 5850 MHz

  • Gigabit Ethernet Port

  • N-Type Connector

  • AC to 24VDC, 0.5A Gigabit PoE Adapter

  • 24V Passive PoE

Availability Call (877) 271-9484 For Availability
Description
<p>Ubiquiti Networks designed airMAX&reg; ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet&trade; AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).<br /><br />The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.<br /><br /><strong>Features:</strong></p><br><ul class="bullet"><br><li><strong>Dual-Band Frequency:</strong>&nbsp;The Bullet AC covers both 2.4 and 5 GHz spectrums, covering a wide range of frequency bands that work well for both short and long-distance links.</li><br><li><strong>Passive Power over Ethernet (PoE):</strong>&nbsp;24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use the included PoE Adapter or an optional PoE switch.</li><br><li><strong>Output Power:</strong>&nbsp;The Bullet AC offers up to 22 dBm of output power.</li><br><li><strong>Weatherproof Design:</strong>&nbsp;The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature&rsquo;s harshest outdoor elements.</li><br></ul><br><p>The Bullet AC integrates a separate Wi-Fi radio for fast and easy setup using the Ubiquiti Network Management System (UNMS) app on your mobile device.</p><br><ul class="bullet"><br><li>2412 - 2462 MHz / 5725 - 5850 MHz</li><br><li>Gigabit Ethernet Port</li><br><li>N-Type Connector</li><br><li>AC to 24VDC, 0.5A Gigabit PoE Adapter</li><br><li>24V Passive PoE</li><br></ul><br><p>&nbsp;</p>
Mechanical
Dimensions 190 x 46 mm (7.48 x 1.81")
Weight 116 g (4.09 oz)
Enclosure Polycarbonate
Hardware

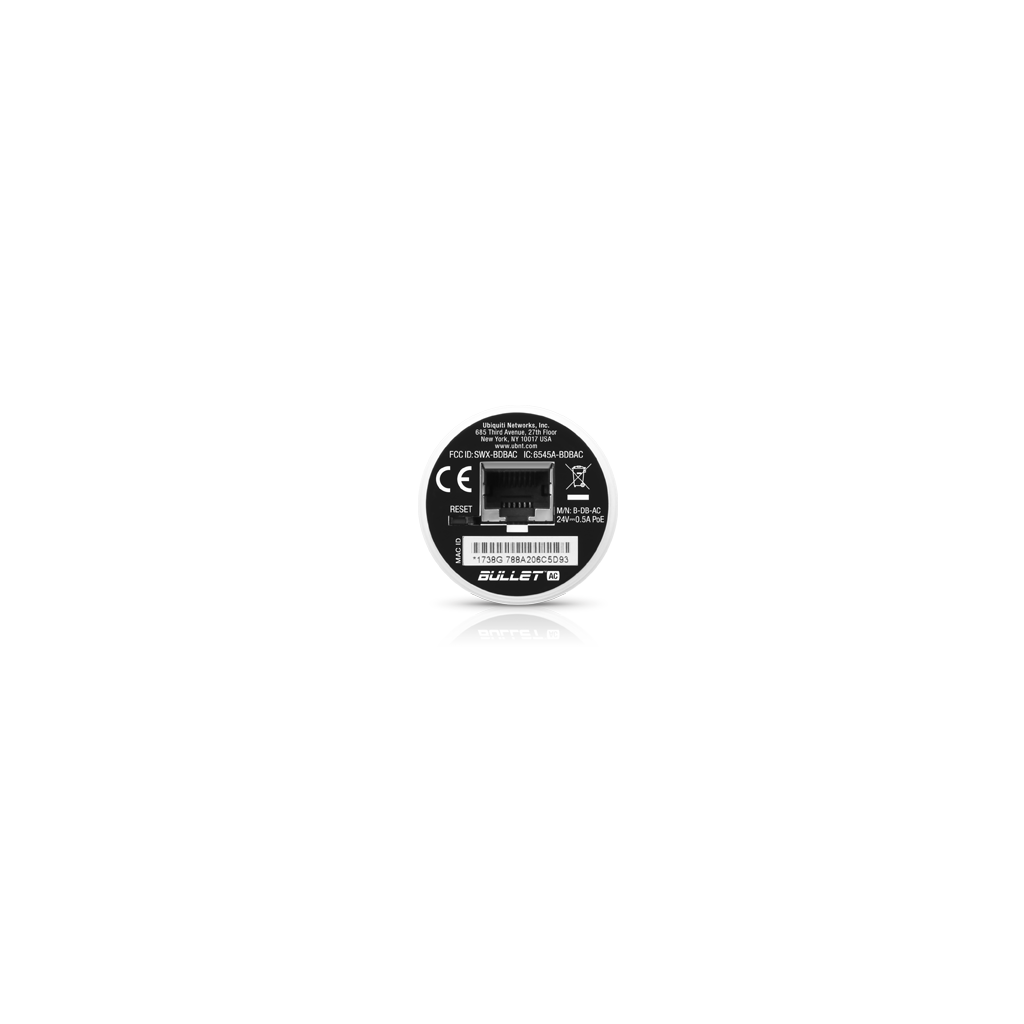

Networking Interface Gigabit Ethernet Port

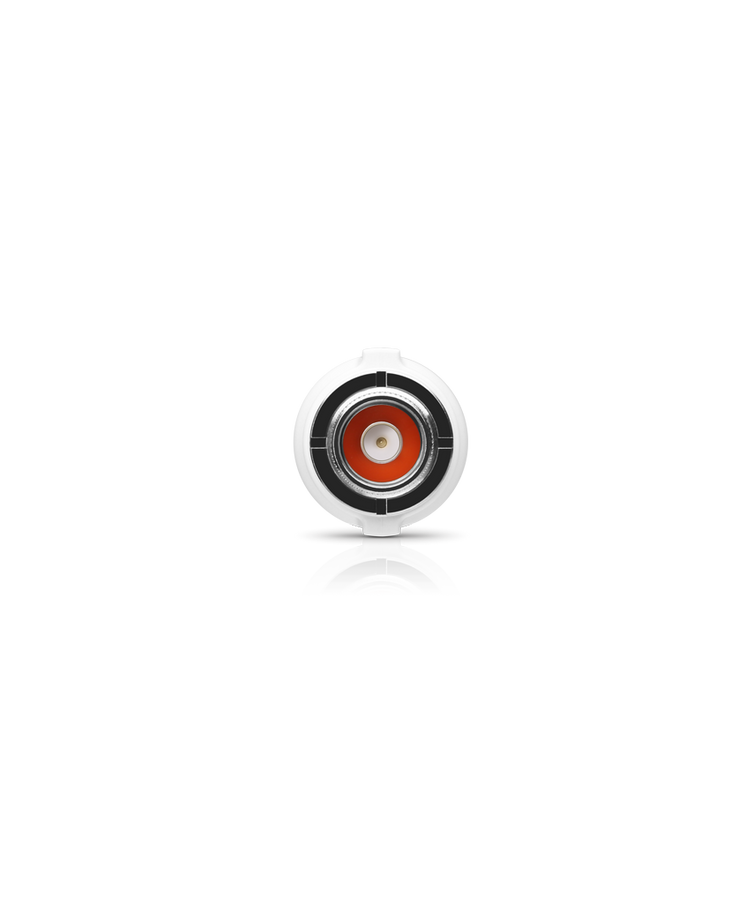

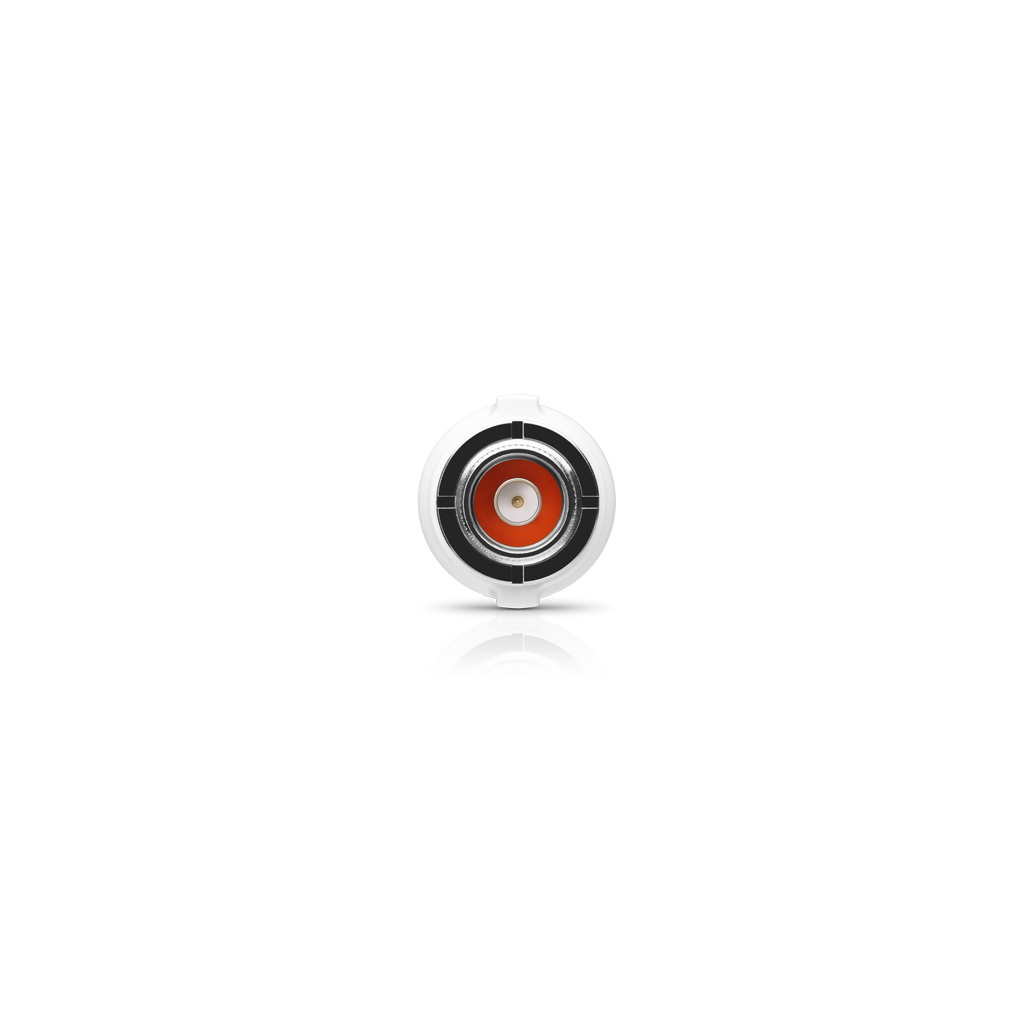

Antenna Connector N-Type Connector
LEDs Power, Ethernet,
(4) Signal Strength
Max. Power Consumption 7W
Output Power 22 dBm
Power Supply 24VDC, 0.3A (Minimum)
Power Method 24V Passive PoE
(Pairs 4, 5+; 7, 8 Return)
ESD/EMP Protection ± 24 kV Contact / Air
Shock and Vibration ETSI300-019-1.4
Operating Temp -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Condensing
Certifications CE, FCC, IC
