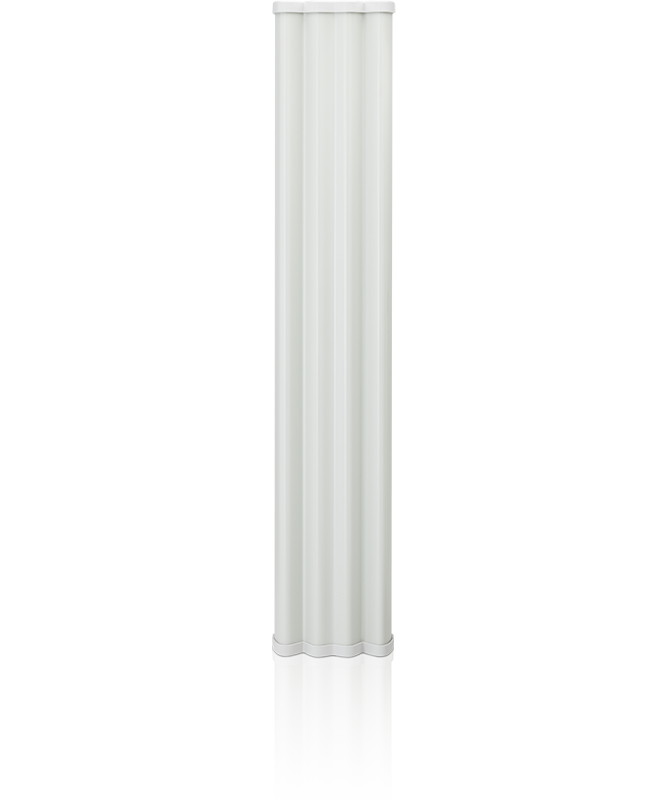

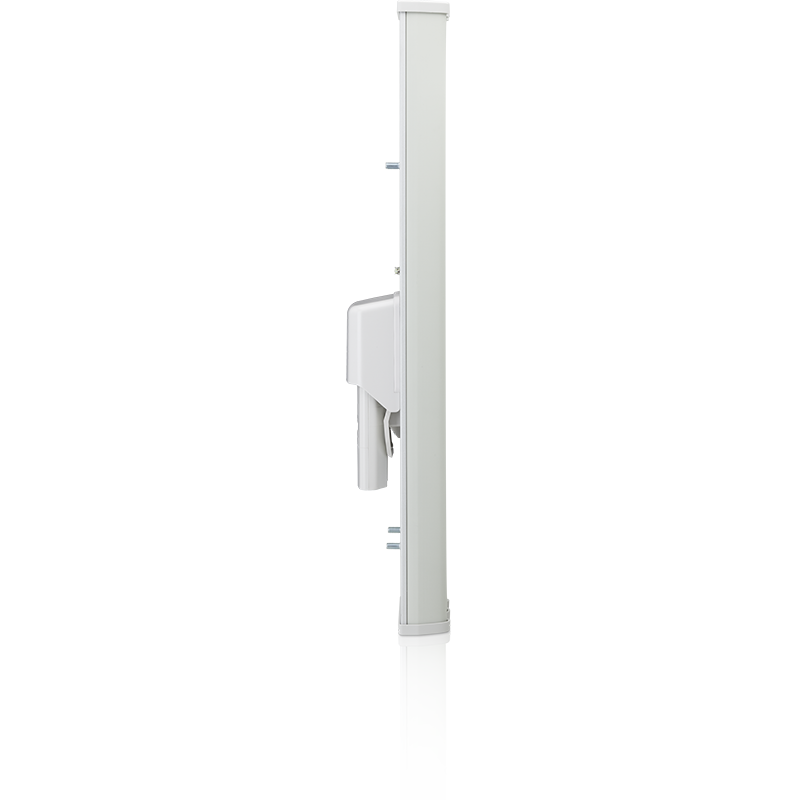

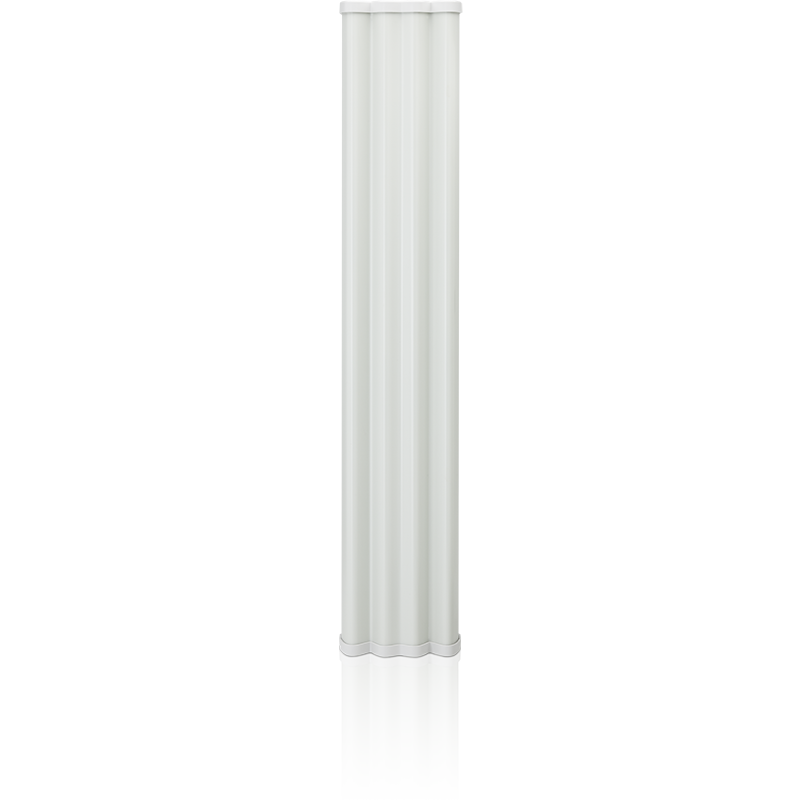

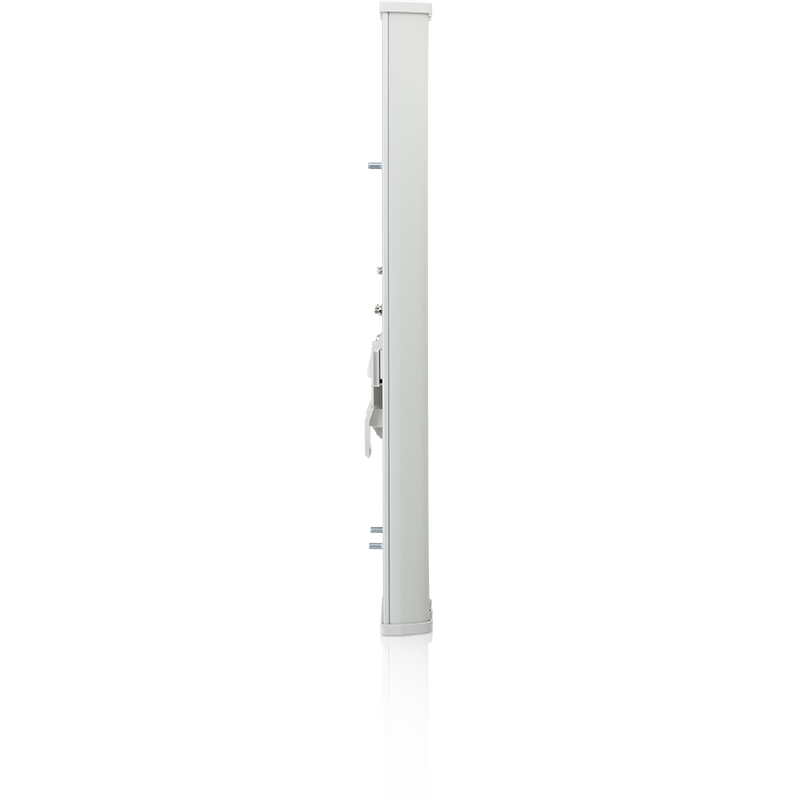

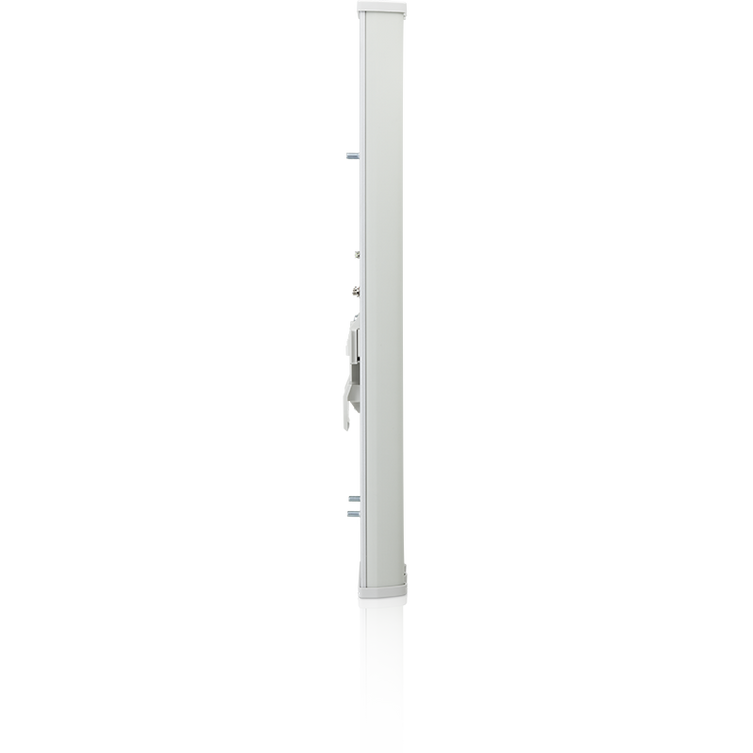

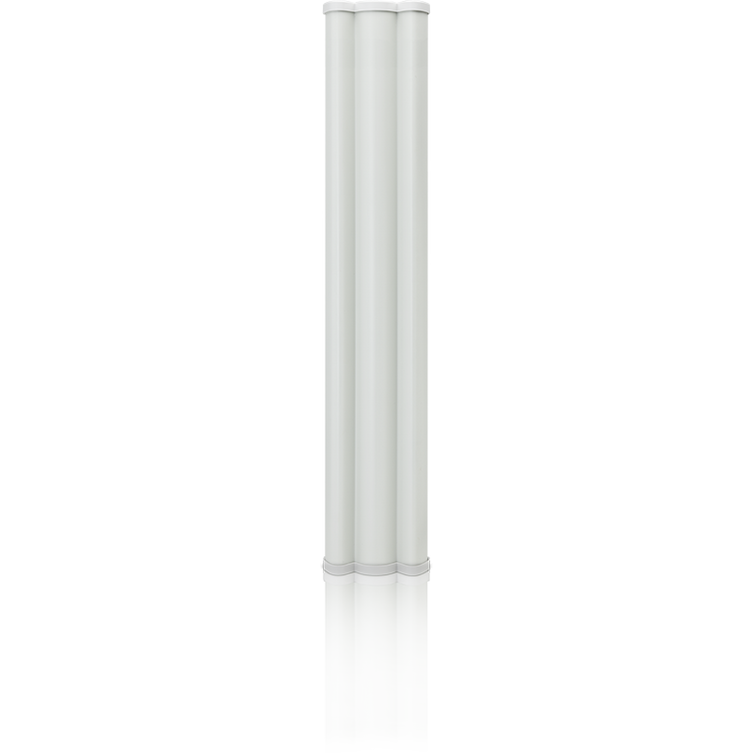

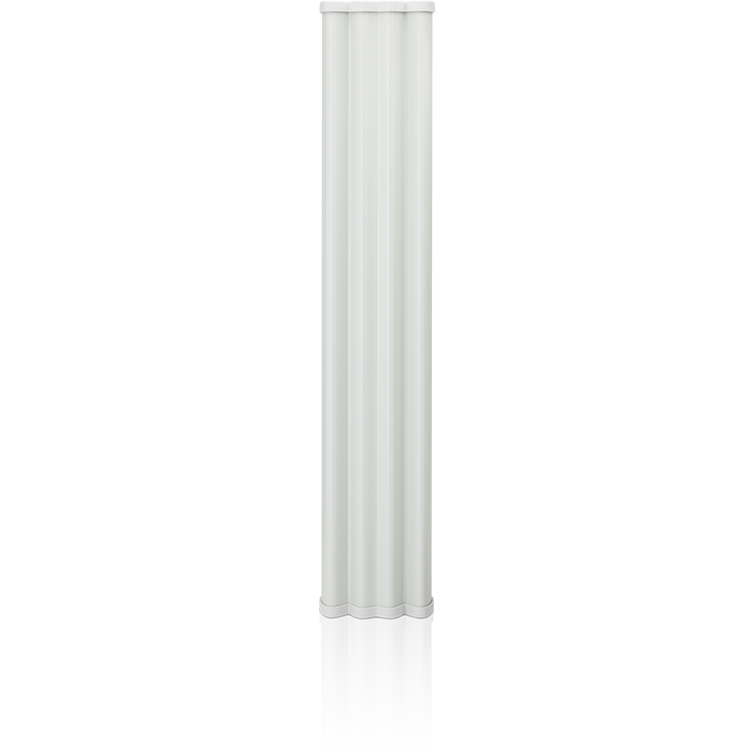

Ubiquiti airMAX 5GHz 120 Deg MIMO Sector Antenna AM-5G19-120

UBIQUITI AIRMAX 5G-19-120 HI-GAIN 5GHZ 5.15 - 5.85GHZ CARRIER CLASS 19DBI 120 DEGREE 2X2 MIMO BASESTATION SECTOR ANTENNA AM-5G19-120 (NEW)

A World Class Antenna Design

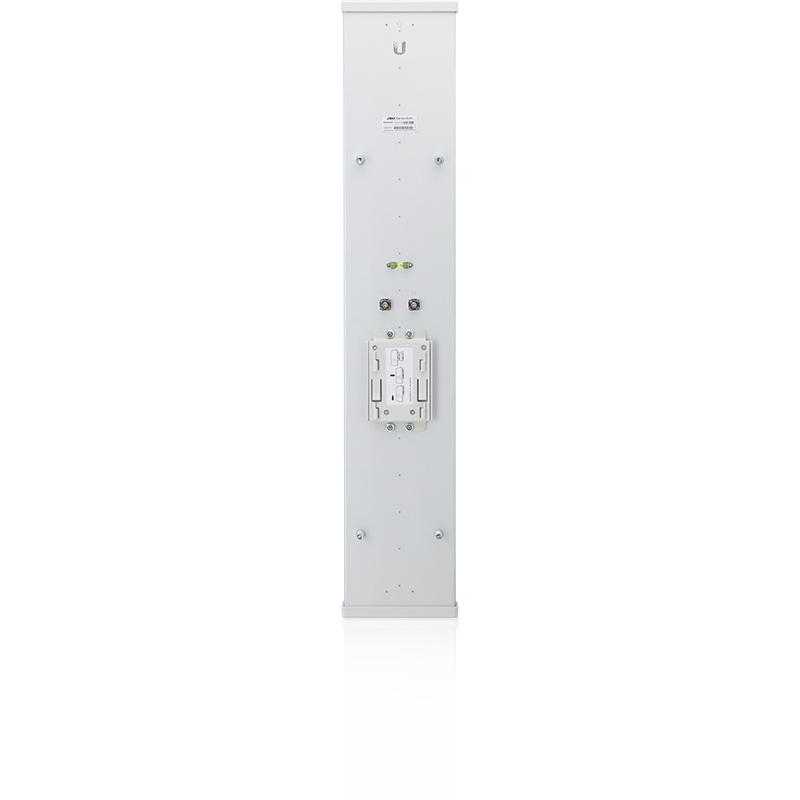

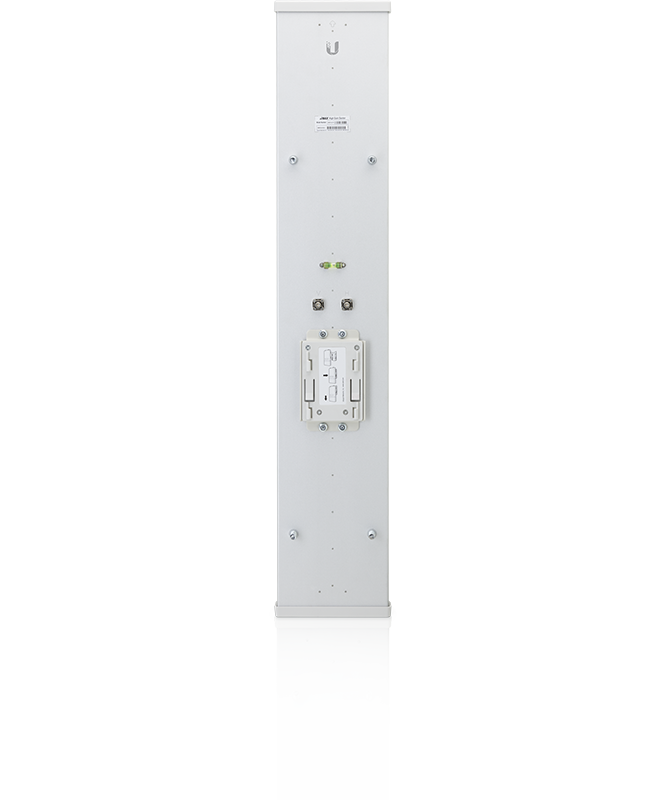

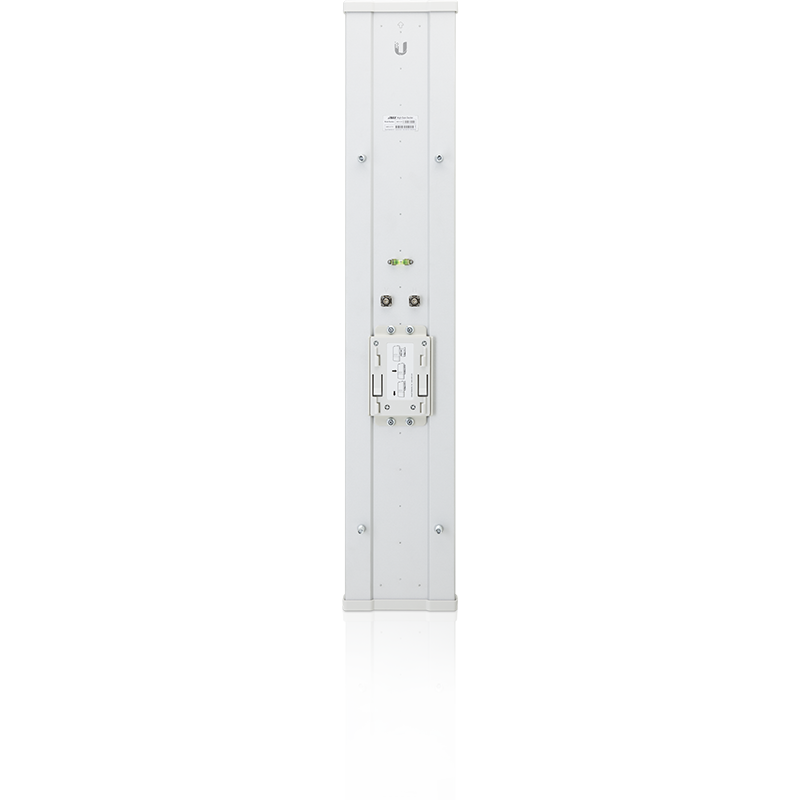

Patent-pending next-generation technology achieves gain, cross-polarity isolation, and beam-shaping characteristic only the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting (for the Rocket) and weatherproof RF jumpers included.

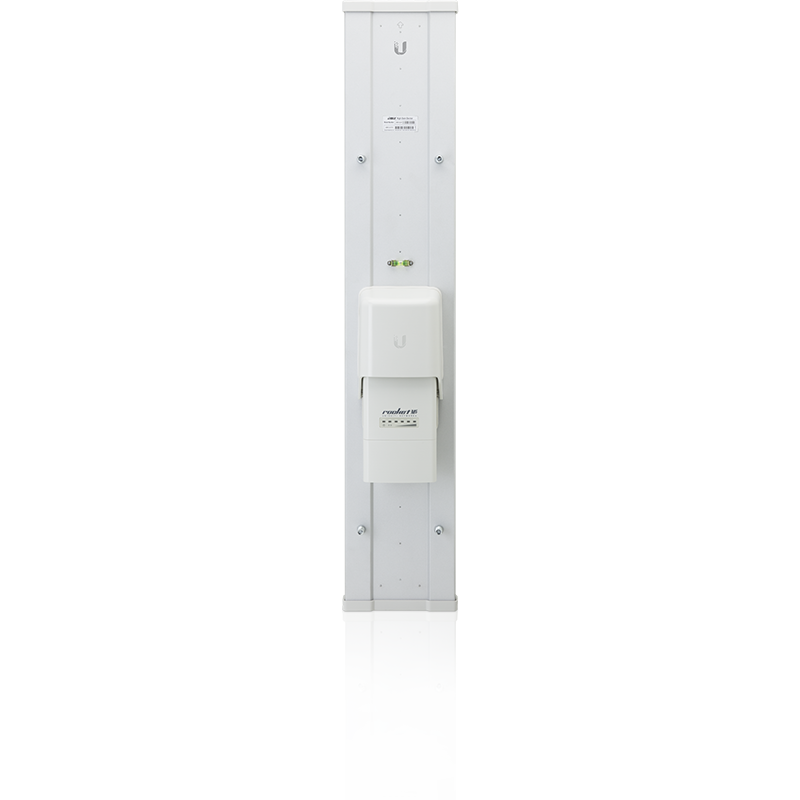

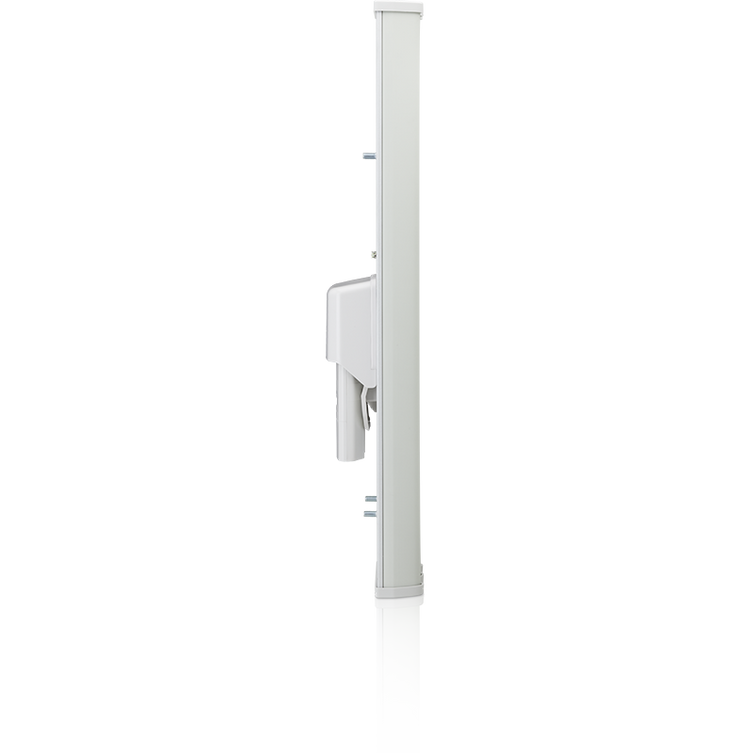

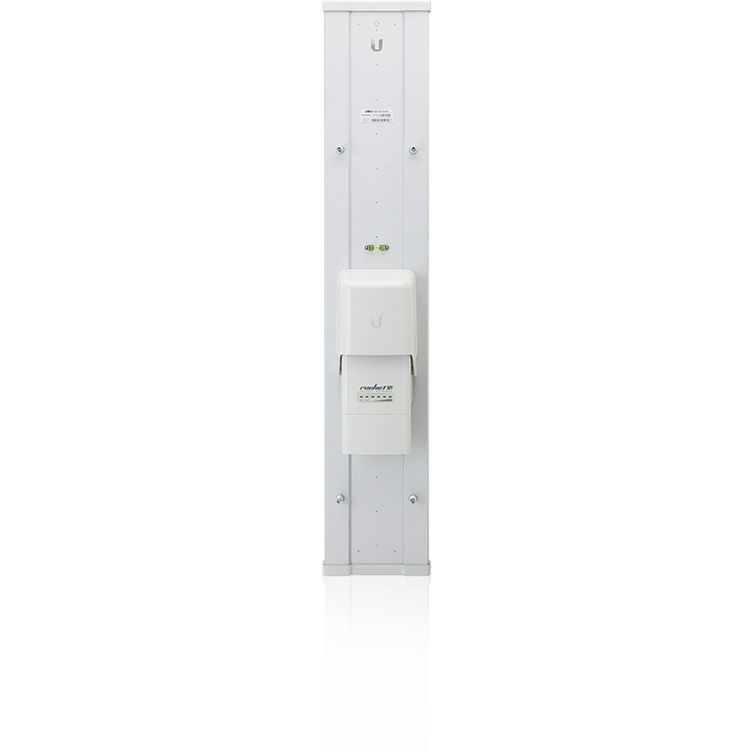

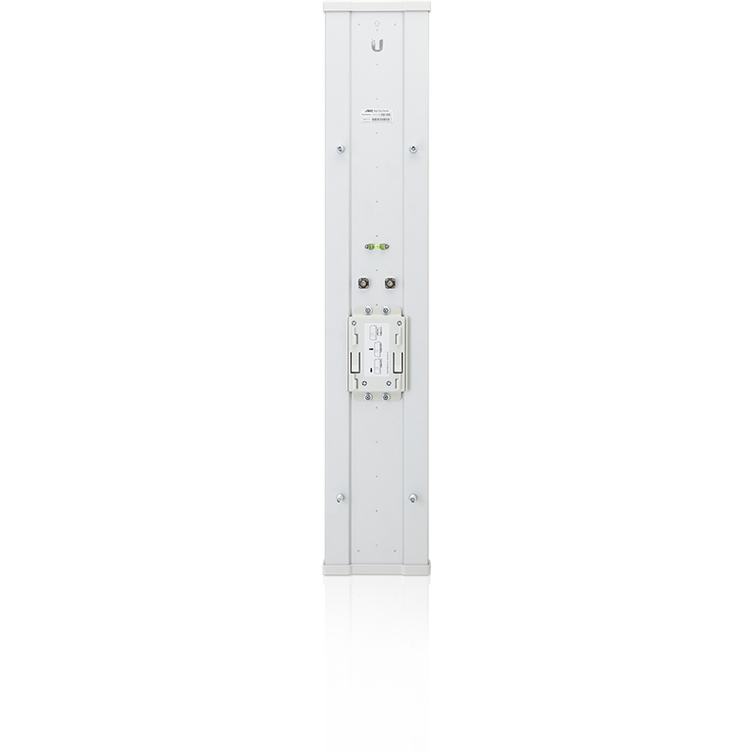

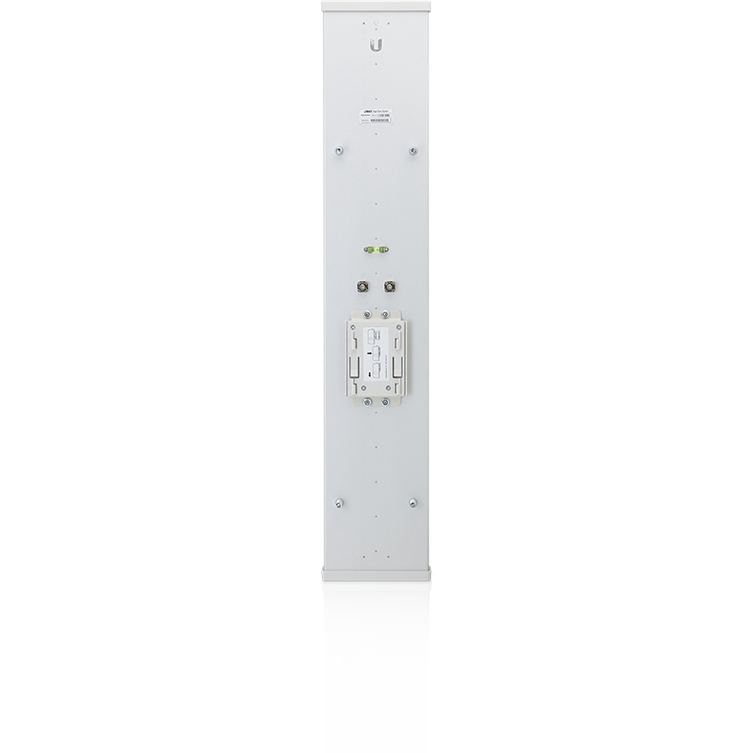

AirMax BaseStation Sector Antennas and Rocket M5's have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas)

Product Specifications:

• Frequency Range: 5.15-5.85 GHz
• Gain: 18.6-19.1dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 28dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 123 deg.
• Vpol Beamwidth (6dB): 123 deg.
• Elevation Beamwidth: 4 deg.
• Electrical Downtilt: 2 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 27.6x5.7x3.1in (700x145x79mm) diameter
• Weight: 13.0lbs (5.9kg)
• Windloading: 160 mph
