RF Elements HG3-TP-S90 5GHz Symmetrical Horn TwistPort 90°

MPN: HG3-TP-S90

SKU: RFEL-HG3-TP-S90

$234

  • Frequency Range: 5180 - 6400 MHz
  • Gain: 9.6 dBi
  • Azimuth Beam Width -6 dB : H 90° / V 90°
  • Elevation Beam Width -6 dB : H 90° / V 90°
Availability In Stock
Ask about this product
Delivery and Return
Description

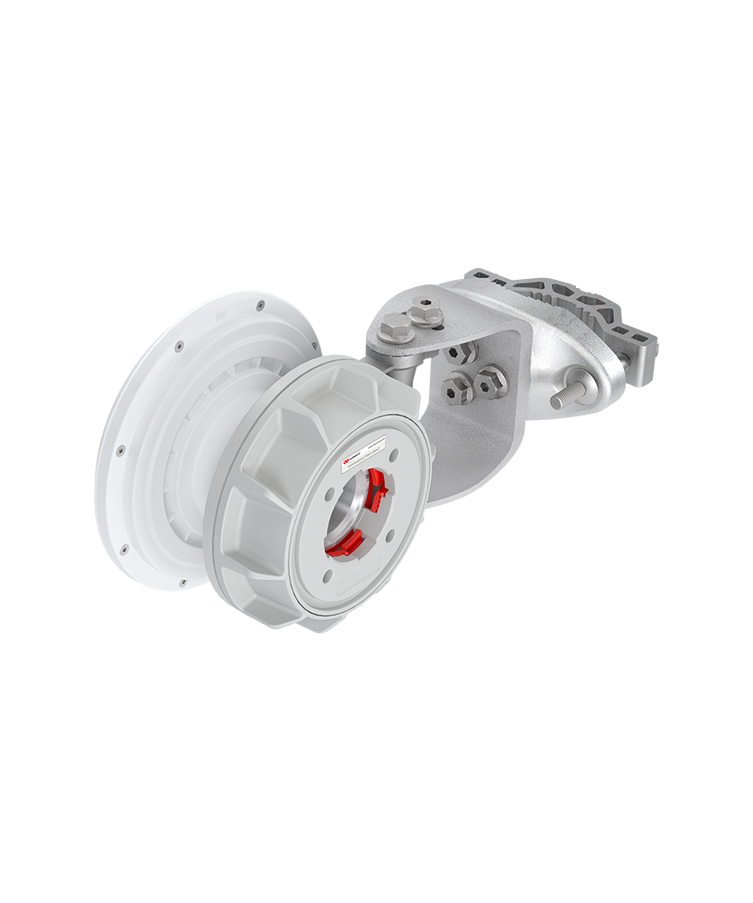

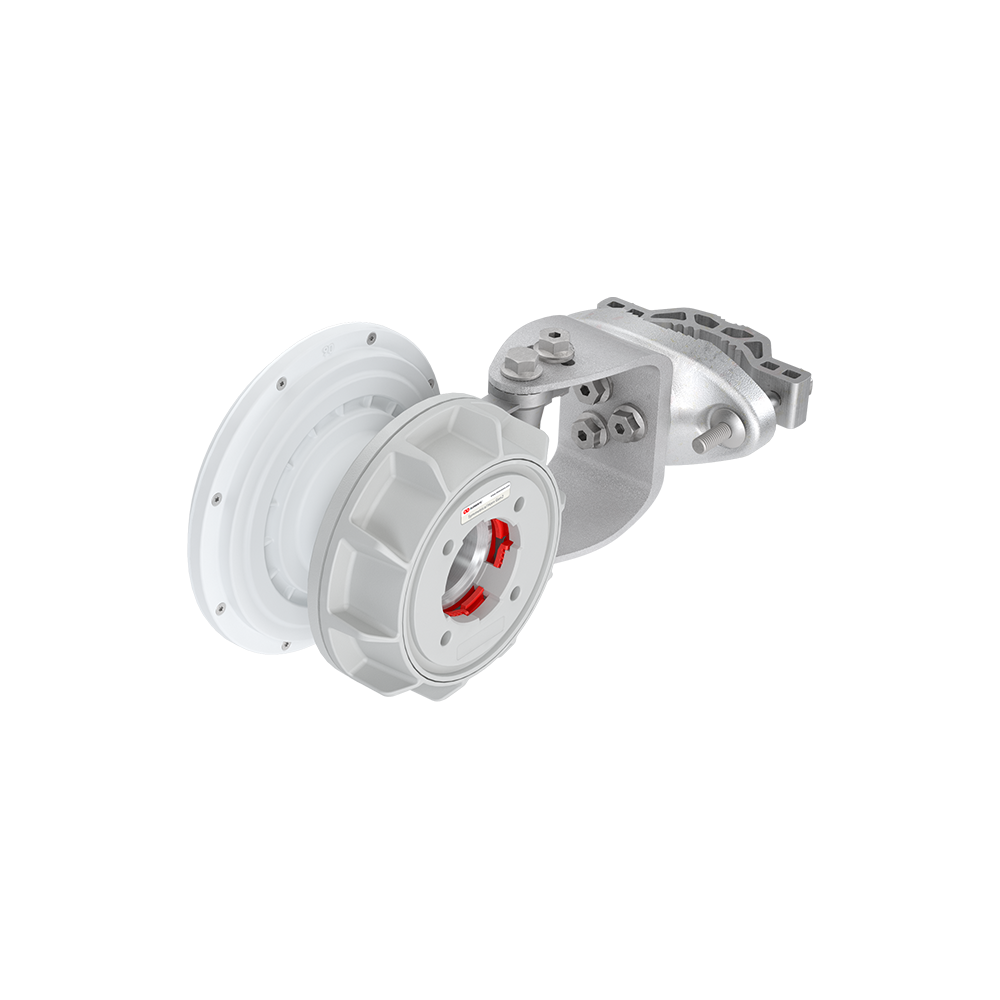

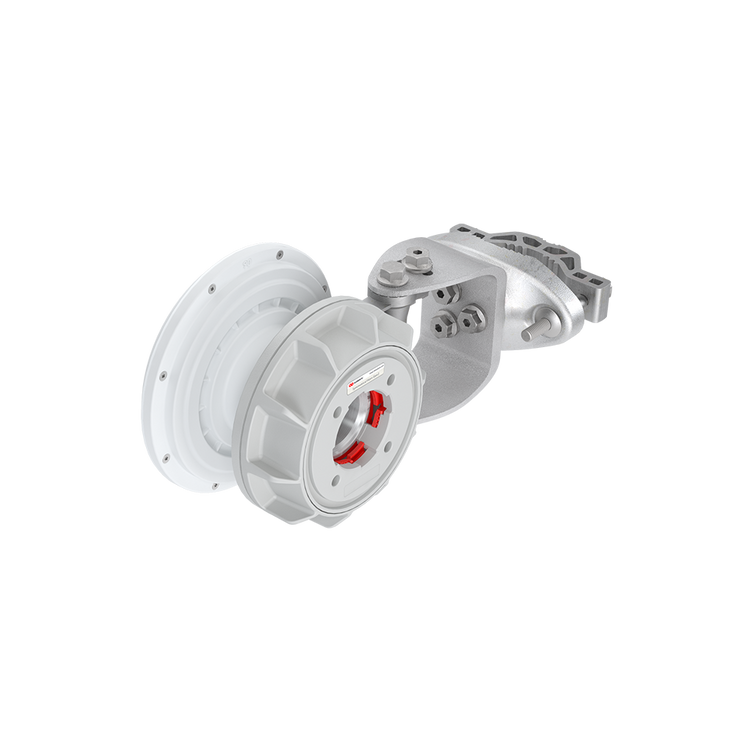

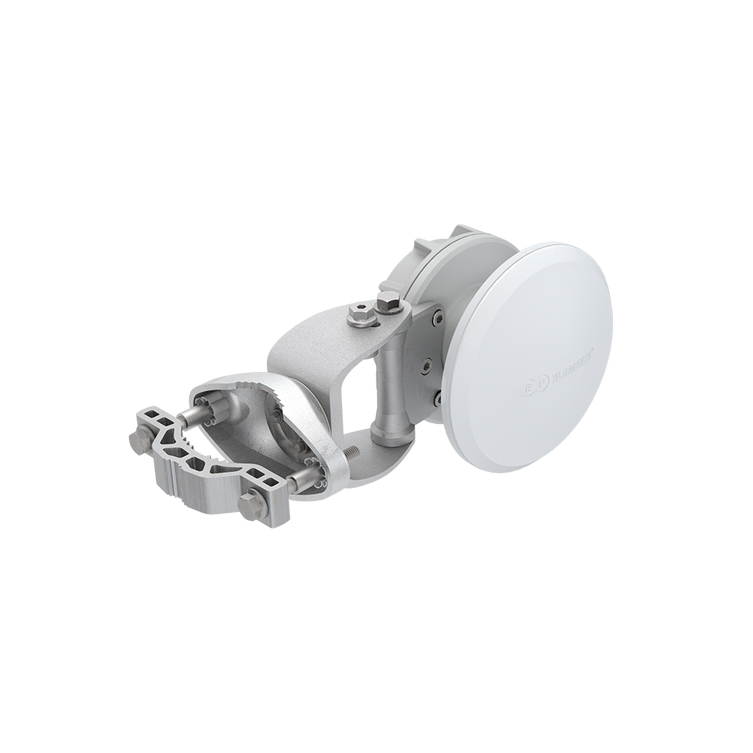

RF Elements HG3-TP-S90

90° Symmetrical Horn TP Antenna Gen2

Horn Antenna With Twistport™ Connector

Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.

Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use.

Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.
Antenna Connection TwistPort™ - Quick Locking Waveguide Port
Antenna Type Horn
Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel
Enviromental IP55
Flame RatingUL 94 HB
Pole Mounting Diameter 30-80 mm (we recommend as close to 80mm as possible)
Temperature -30°C to +55°C (-22°F to +131°F)
Wind Survival 160 km/hour
Wind Loading 22 N at 160 km/hour
Mechanical Tilt ± 25°
Weight1.4 Kg / 3.0 lbs – single unit
2.2 Kg / 4.8 lbs – single unit incl. package 23.0 Kg / 50.7 lbs – carton (10 units)
PERFORMANCE
Frequency Range 5180 - 6400 MHz
Gain 9.6 dBi
Azimuth Beam Width -3 dB H 67° / V 67°
Elevation Beam Width -3 dB H 67° / V 67°
Azimuth Beam Width -6 dB H 90° / V 90°
Elevation Beam Width -6 dB H 90° / V 90°
Beam Efficiency**92%
Front-to-Back Ratio28 dB
