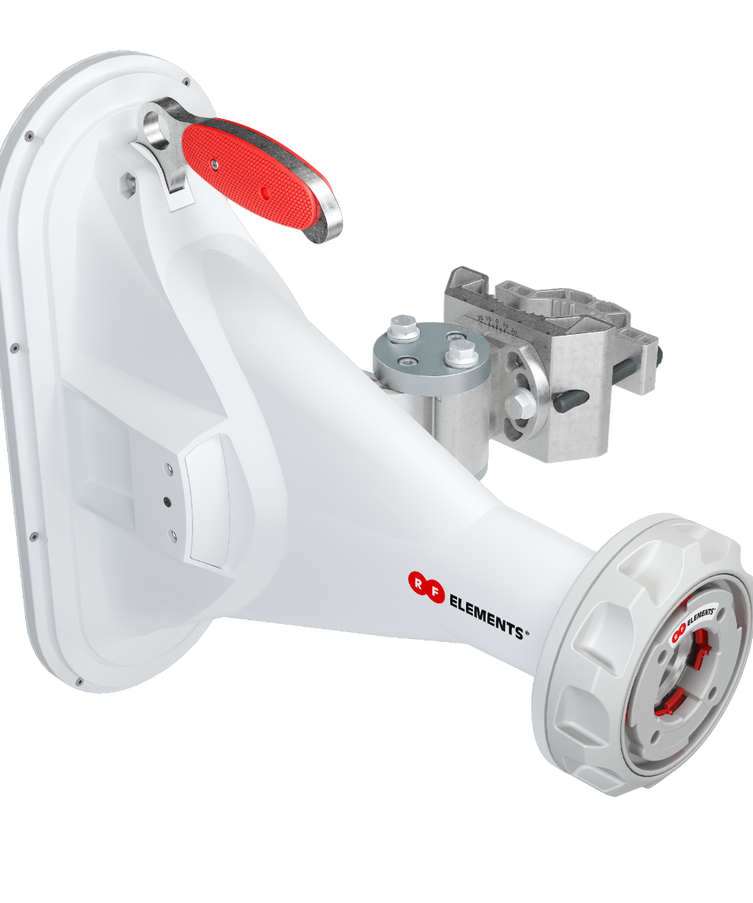

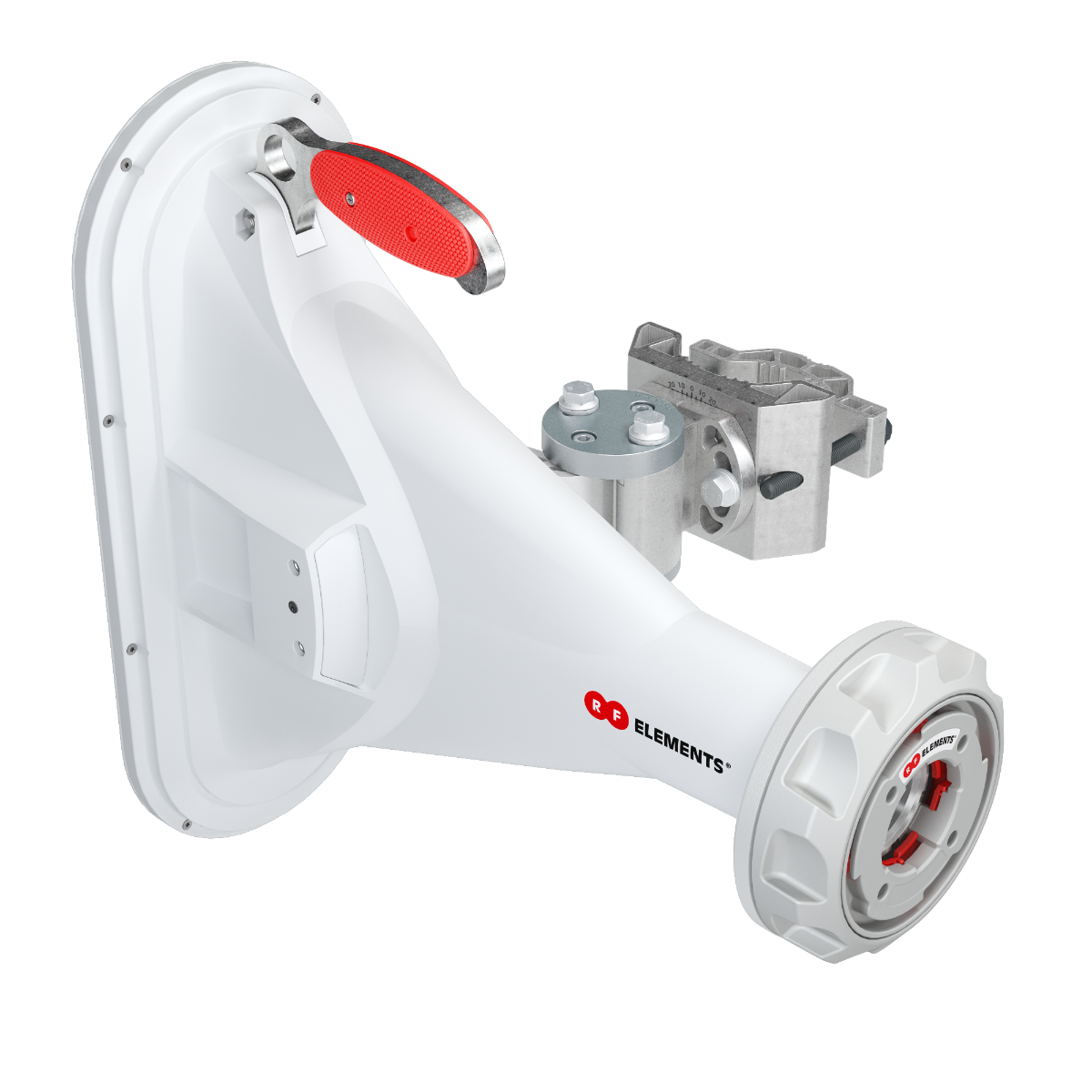

RF Elements AH90-TP 5GHz Asymmetrical Beam Twistport 90°
RF Elements AH90-TP 5GHz Asymmetrical Beam Twistport 90°
RF Elements AH90-TP 5GHz Asymmetrical Beam Twistport 90°

RF Elements

RF Elements AH90-TP 5GHz Asymmetrical Beam Twistport 90°

MPN: AH90-TP

SKU: RFEL-AH90-TP

$505

  • Frequency Range 5180 - 6000MHz
  • Gain 16dBi
  • Azimuth Beam Width -6dB H 90° / V 90°
  • Elevation Beam Width -6dB H 25° / V 25°
  • Mechanical Tilt ± 20° Elevation, ± 20° Azimuth
  • Pole Mounting Diameter 40 - 80mm
  • Front-to-Back Ratio 30dB
Availability In Stock
Ask about this product
Delivery and Return
Description

Asymmetrical Horn TP Antennas provide asymmetrical beam shape and game-changing TwistPortTM (TP) connector. Asymmetrical Horn TP Antennas provide excellent noise rejection, network scalability and throughput increase. Providing specific beam shape, increased antenna gain and excellent noise rejection, Asymmetrical Horn TP antennas complement the successful Symmetrical Horn Antennas.



  • Frequency Range 5180 - 6000MHz
  • Gain 16dBi
  • Azimuth Beam Width -6dB H 90° / V 90°
  • Elevation Beam Width -6dB H 25° / V 25°
  • Mechanical Tilt ± 20° Elevation, ± 20° Azimuth
  • Pole Mounting Diameter 40 - 80mm
  • Front-to-Back Ratio 30dB
