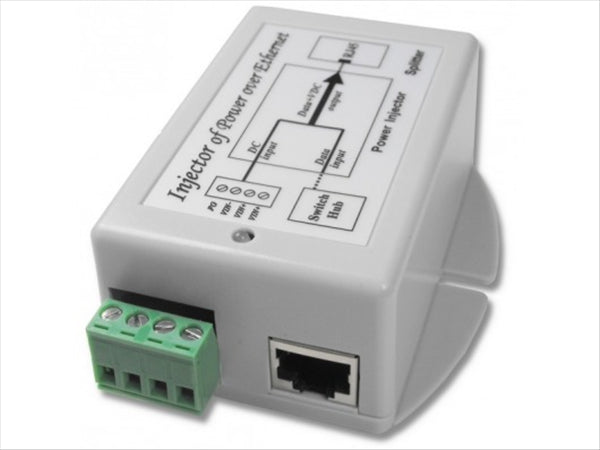

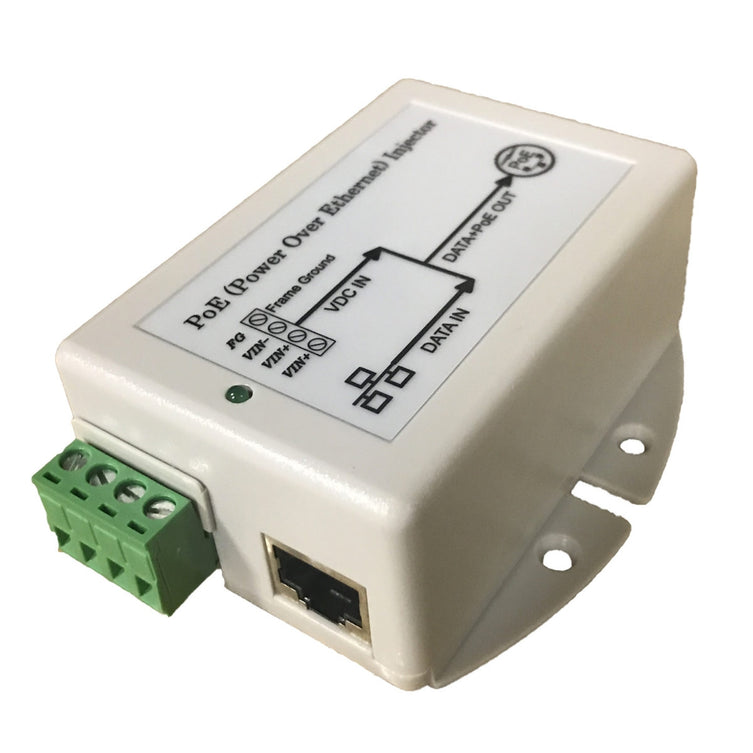

Tycon TP-DCDC-1248GD GIGABIT, 9-36VDC IN, 48VDC 802.3AF OUT 17W DCDC

<p>The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af Power Over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle.&nbsp;<br><br>They have an integrated POE injector to apply the 802.3af/at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.<br><br>They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).&nbsp;<br><br>They have various protections for surge, short circuit and overload. The units have power outputs of 17W.<br><br><strong>Features</strong></p> <p>&nbsp;</p> <p style="padding-left: 30px;"><br>- Input Voltage 9-36VDC; Output 48VDC<br>- Integrated Gigabit POE Inserter<br>- Output Power 17W<br>- Short Circuit, Over Current and Over Voltage Protection<br>- High Temperature Operation<br>- Removable Wire Terminal Input for up to 12AWG wires<br><br>Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)<br>Weight: 134g (4.7oz)</p> <p>&nbsp;</p> <p style="padding-left: 30px;">&nbsp;</p>
