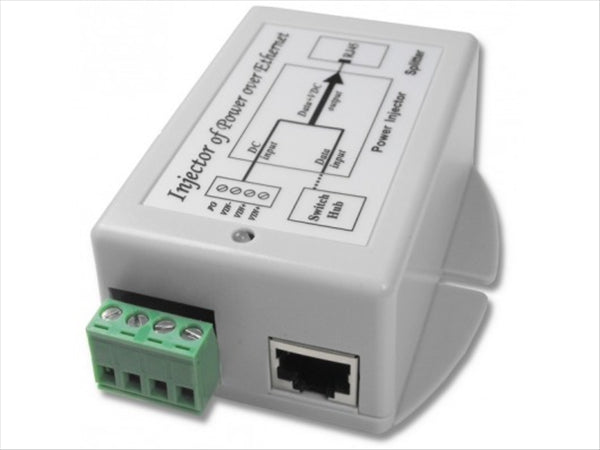

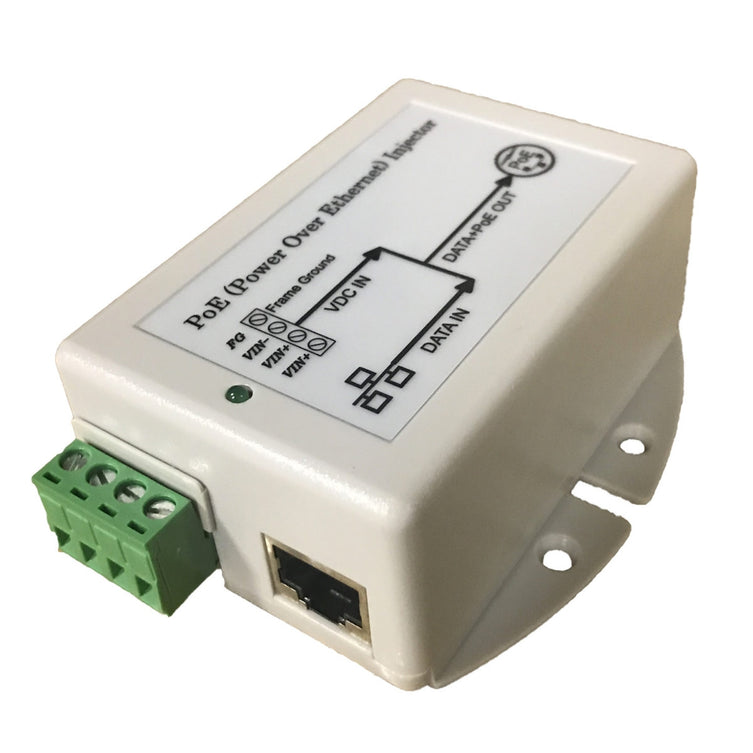

Tycon Systems TP-DCDC-1224G 12/24V Gigabit Passive PoE Injector

<p>The <strong>TP-DCDC-1224G DC</strong> to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Gigabit Power Over Ethernet voltage from a 12 or 24V battery system.&nbsp;<br><br>They have an integrated Gigabit PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.<br><br>They accept data-in to a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.<br>They work by supplying power on the Ethernet pins 4,5(V+) and 7,8(V-).<br><br>They have various protections for surge, short circuit and overload. The units have power output of 19W.</p> <p><br><br><strong>Features</strong></p> <p style="padding-left: 30px;">- Input Voltage 9-36VDC; Output 24VDC<br>- Integrated Gigabit PoE Inserter<br>- High Power 19W<br>- Short Circuit, Over Current and Over Voltage Protection<br>- High Temperature Operation<br>- Removable Wire Terminal Input for up to 12AWG wires<br><br>Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)<br>Weight: 134g (4.7oz)</p> <p>&nbsp;</p> <p style="padding-left: 30px;">&nbsp;</p>
