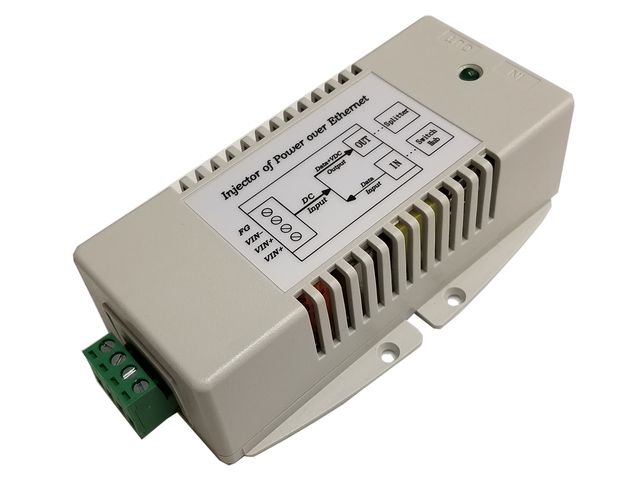

Tycon Power Systems TP-DCDC-2424GR-VHP 18-36VDC IN 24VDC OUT 70W High Power

<p>• Input Voltage 24VDC (18-36VDC)<br>• 8 wire 24VDC Passive PoE Output<br>• High Power Output to 70W<br>• Dual DC Inputs for Connecting 2 Power Sources<br>• Gigabit Data Thruput<br>• Low self consumption power (&lt;2W)<br>• Short Circuit, Over Current and Reverse/Over Voltage Protection<br>• Industrial Temperature Range<br>• I.T.E. Power Supply, UL Listed<br><br>Applications<br>• 24VDC Remote Power Systems<br>• Ubiquiti airFiber x Radios<br><br>The Gigabit compatible TP-DCDC-2424GR-VHP is a special very high power DC to DC converter / PoE inserter designed especially for Ubiquiti airFiber x wireless radio systems and other systems which require high power passive PoE (High PoE). The unique PoE inserter supplies 24VDC PoE power on all 8 Ethernet wires (4 pair) with the following pinout: 1,2,4,5 V+ and 3,6,7,8 V<br><br>They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.<br><br>The units are DIN rail mountable with available adapters: Model DIN-ClipKit-Uni</p>
