Mikrotik ±48V Open frame Power supply with 12V 7A output, for new r2 CCR revisions

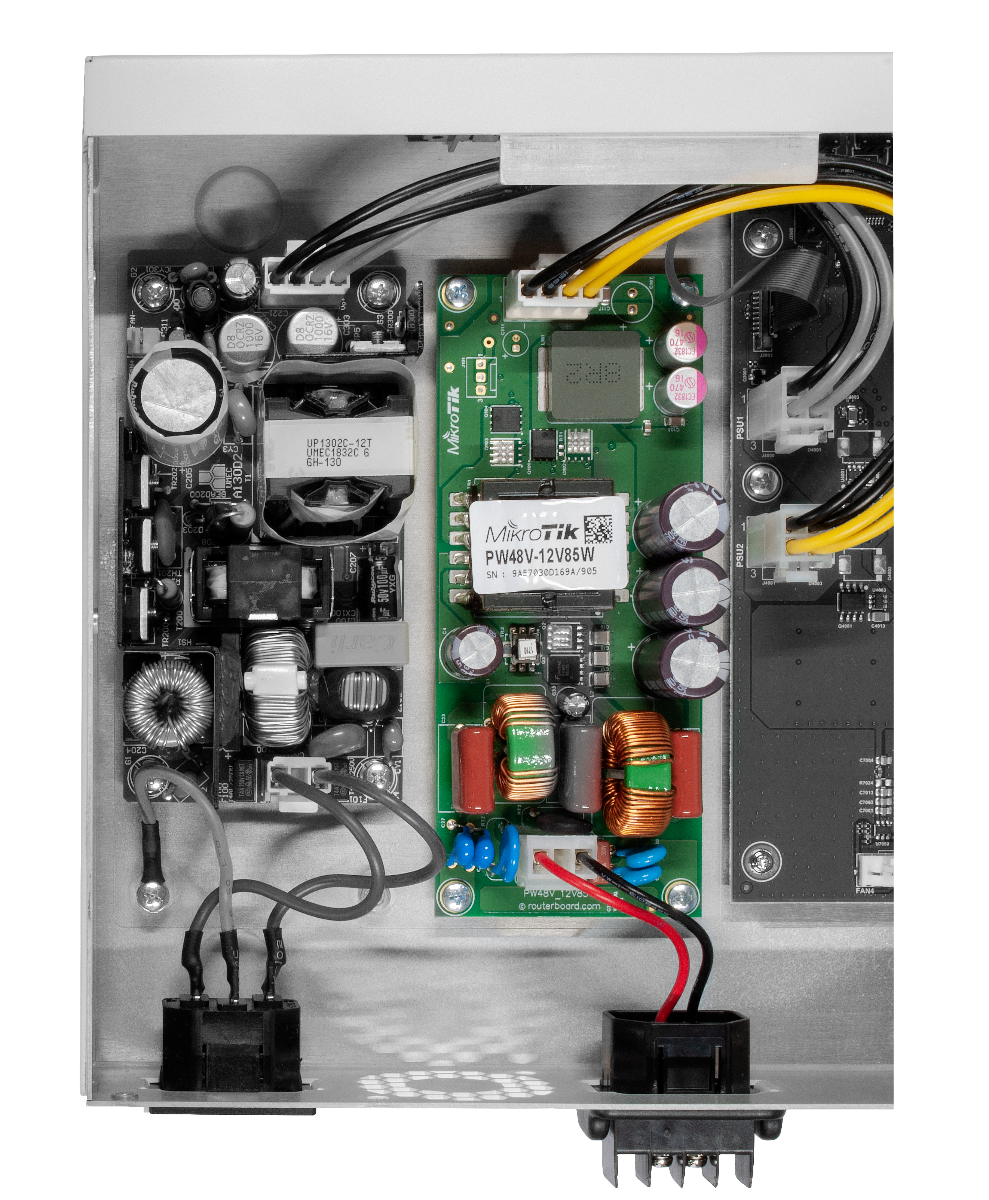

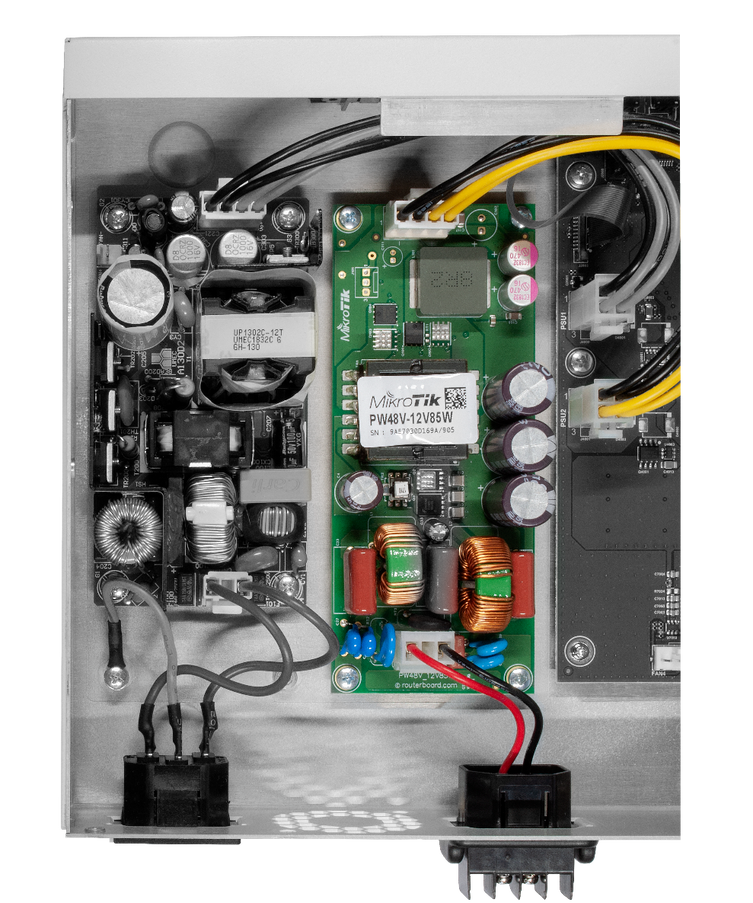

±48 V DC telecom Open Frame Power supply with 12 V 7 A output, for use with new “r2” revision of Cloud Core Routers or the new CRS326-24S+2Q+RM. Simply remove one of the current power supplies and replace with the new PW48V-12V85W for ±48 V installations.

Although made specifically for -48V telecom power, the supported input range is from 36V to 57V. Note: To use, positive terminal must be 36 to 57V higher potential than negative terminal (eg. if negative terminal is -48 V, the positive must be -12 to +9 V).



Product Specifications

• Input: -48 V, 3 A
• Output: 12 V, 8 A
• Operating temperature: -20°C .. +60°C
• Dimensions: 118 x 52 mm

Product Includes

• PW48-12V85W power supply

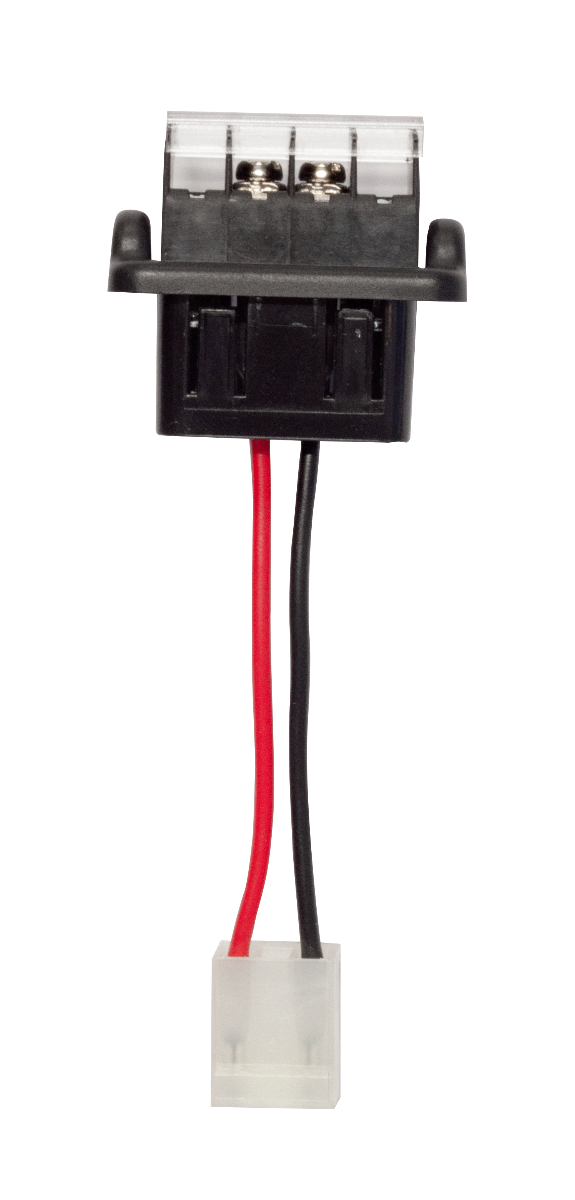

• Power Cable
