BSC

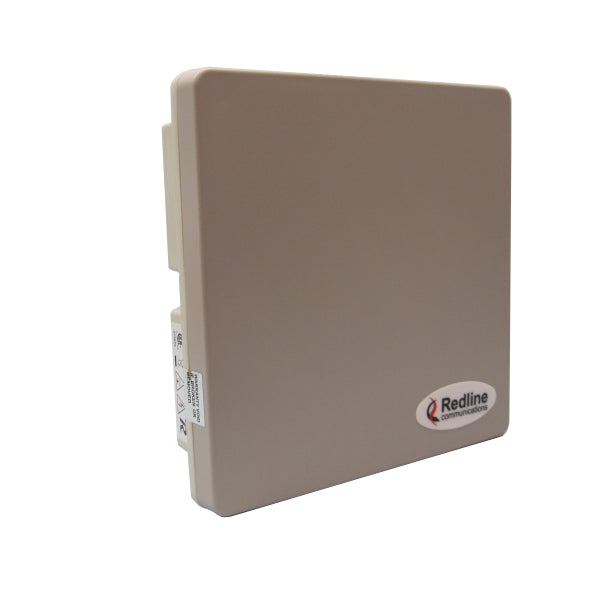

Redline RedMAX Outdoor Subscriber Unit with Int Antenna
MPN: SUOIA00D3336F7
SKU: RED-SUOIA00D3336F7
$435.50
Loading...
Networking
Wireless
Surveillance and Security
Ethernet Cabling
Cabinets and Enclosures
Surge Protection
Cables
Accessories
Solar and Wind Power
Tools
Products
Networking
Video Surveillance
Wireless Networking
Accessories
Cabling / Connectors
Telecom
Power
Clearance
Fiber Optics
Cambium Networks
Ubiquiti Networks
Planet Technology
Citel
Transtector
MikroTik
RF Elements
Laird Technologies
SkyWalker
Grandstream Networks
Hana Wireless
Primus Cable
Mimosa
Shireen
Netonix
Siklu
Tripp Lite
Tycon Systems
BSC
MPN: SUOIA00D3336F7
SKU: RED-SUOIA00D3336F7
REDLINE REDMAX SU-OIA-00D-3336F7 OUTDOOR SUBSCRIBER UNIT (NEW)
| Description | RedMAX Integrated Subscriber Unit. All Outdoor Design with mount. Includes Integrated Flat Panel 14 dBi Antenna and Bracket. |
| Data Rate | 35 Mbps |
| Frequency | 3.3 - 3.6GHz |
| Bandwidth | 7 Mhz |
| Encryption | DES and AES |
| RF Output Power | Up to +20 dBm |
| EIRP | NA |
| EMS | Customizable, full radio network management + control system |
| Power | 110/220/240 VAC 50/60 Hz |
| Power Supply | PoE-Standard 802.3af |
| Temp Range | -40 C to 65 C |
| RF Connector | Not Available. Integrated 14 dBi flat panel |
| Data Connector | Maximum length up to (190 m) using Redline recommended high-grade IF cable |
| Weight | 4.5 lbs (2 Kg) not including mounting bracket |
| Size | 8¿ W x 8¿ L x 2.5¿ H (20 cm x 20 cm x 6.35 cm) |
| Mfg. Warranty | 1 Year |
