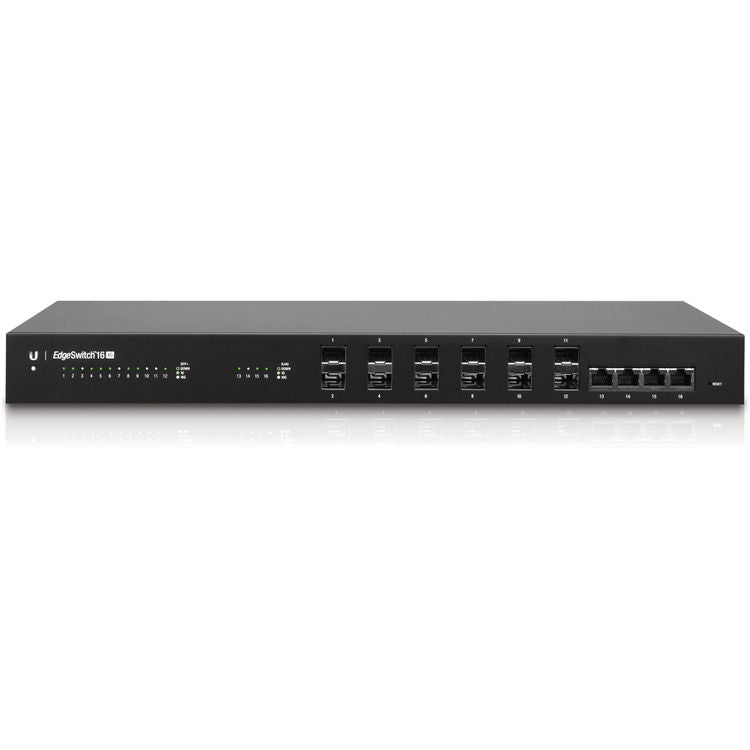

Ubiquiti ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch
Ubiquiti ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch

Ubiquiti Networks

Ubiquiti ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch

MPN: ES-16-XG

SKU: UBI-ES-16-XG

$629
$669
Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Ubiquiti Networks ES-16-XG Overview

With 12 SFP+ ports and 4 10G RJ-45 ports, the ES-16-XG EdgeSwitch 16 10G 16-Port Managed Aggregation Switch from Ubiquiti resides on Layer 2 of the network and also supports enhanced Layer 3 routing capabilities. The 12 SFP+ ports make it easy to attach additional switches to the network while the 10G RJ-45 ports allow for devices such as NAS storage arrays to be incorporated directly into the configuration making stored data accessible to multiple clients. Once configured, the EX-16-XG supports a non-blocking throughput of up to 160 Gbps, a 320 Gbps switching capacity, and a forwarding rate of up to 238.10 Mpps. Installation of the switch is simple thanks to the included rackmount brackets and with the DC input option the switch can be configured in redundant or stand-alone modes.

Advanced Switching Technologies

Build and expand your network the with Ubiquiti Networks EdgeSwitch XG, part of the EdgeMAX line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks.

The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

10G High-Capacity Links

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch.

For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ-45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ-45 connectors.

Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality

The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality


Ubiquiti Networks ES-16-XG

Interfaces
Ports 12 x 10Gb SFP
4 x 10Gb Ethernet (RJ45)
1 x Ethernet (RJ45) (Console)
Protocols
Layer Services Supported Layer 3 Support
Supported Protocols Auto-VoIP
IPv6
Port Mirroring
Queuing Strict Priority, Weighted Round Robin (WRR)
MAC Address Table Size 8K
VLAN Groups 255
Security
Security Features Storm Control
Access Control List 100
Standards
RFC RFC 2021
RFC 2030
RFC 2819
RFC 2865
RFC 2866
RFC 2868
RFC 2869
RFC 3579
RFC 3580
RFC 3164
Supported IEEE Standards 802.1ab, 802.1ak, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3an, 802.3u, 802.3x
Performance
Forwarding Rate 238.1 Mpps
Switching Bandwidth 320 Gb/s
160 Gb/s (Non-Blocking)
Priority Queues 8
Electrical
Power Draw 36.00 W (Active)
DC Input Power 16 to 25 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature 23 to 104°F / -5 to 40°C
Operating Humidity 5 to 95%
General
Material of Construction Steel
Indicator Lights Link/Activity/Speed
Rack Form Factor 1 RU
Dimensions 17.4 x 8.7 x 1.7" / 44.1 x 22.1 x 4.4 cm
Weight 6 lb / 3 kg
Packaging Info
Package Weight 7.85 lb
Box Dimensions (LxWxH) 21.4 x 10.5 x 2.9"
